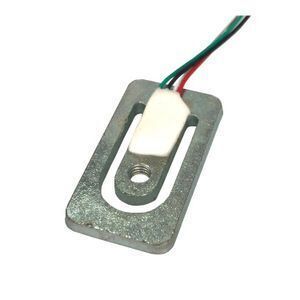

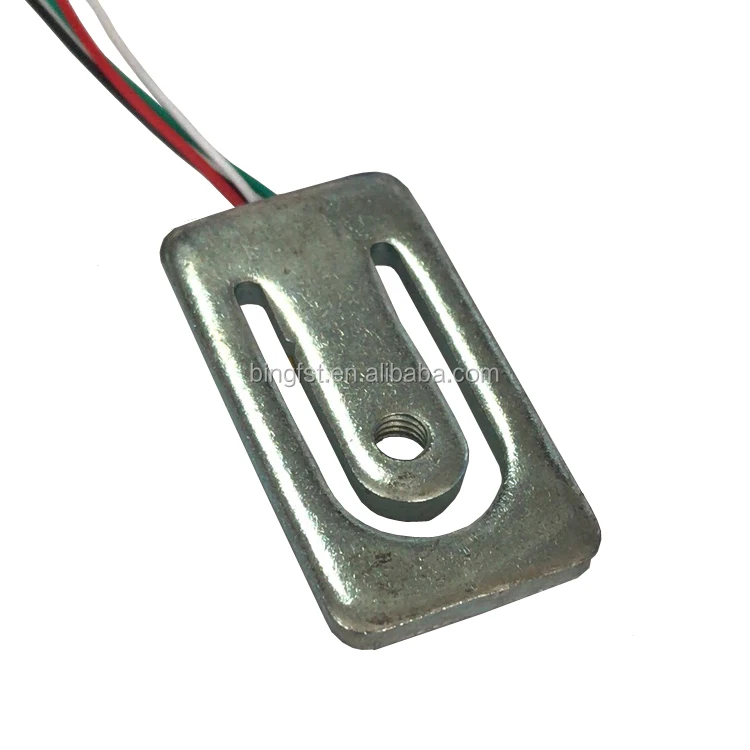

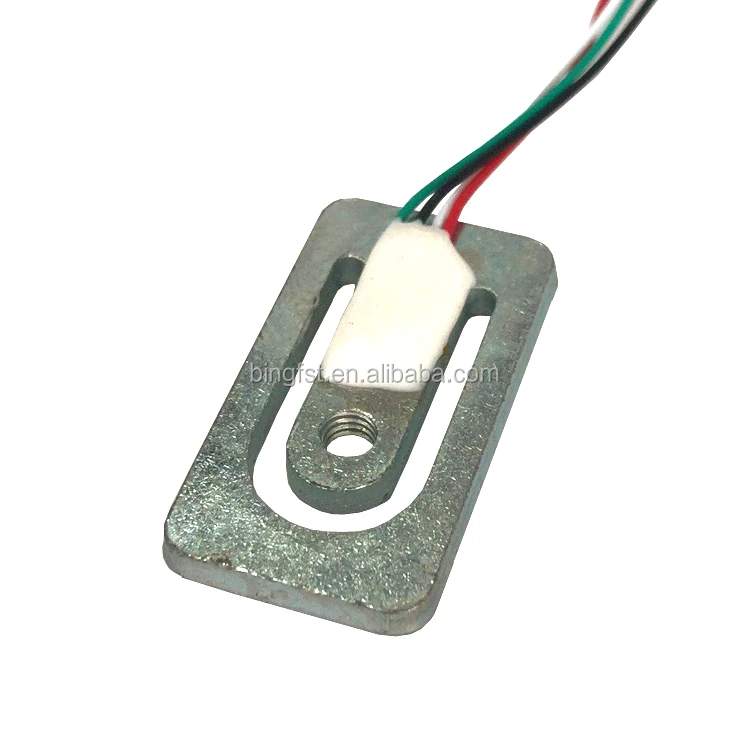

Mini customized weighing transducer force sensor load cell pressure sensor full bridge and half bridge capacity 0.2-50kg

Product Features & Applications:

1, anti-bias load, low height, good strength, easy installation

2. Suitable for all kinds of press, medical force measuring equipment and other occasions of force measurement

3. The sensor can be customized according to the requirements of customers

PARAMETERS:

Rated Load :0.2-50kg

Sensitivity:1.0±10%mV/V

Zero Output :±0.1mV/V
Non-linearity::±0.1 %FS

Hysteresis::±0.1%F.S
Repeatablity::±0.1%F.S
Creep:0.1%F.S/30min

Temp. effect on span(%F.S/10℃): 0.1%F.S/10℃
Temp. effect on zero(%F.S/10℃): 0.1%F.S/10℃

Input resistance(Ω) : 1000±10Ω
Output resistance(Ω) : 1000±5Ω
Insulation resistance(MΩ) : ≥5000MΩ/100V

Voltage(V) : 3-10V(DC)
Compensated Temperature Range ::-10-60℃

Use Temperature Range ::-20-70℃

Safe overload (%F.S) : 150%F·S
Limit overload  (%F.S) : 200%F·S
Cable Size   : UL32AWG-120mm

Mode of Connection   : Input(+)Red; Input(-)Black;

                                     Output(+)Green; Output(-)White;

Material :Stainless Steel / Manganese Steel;

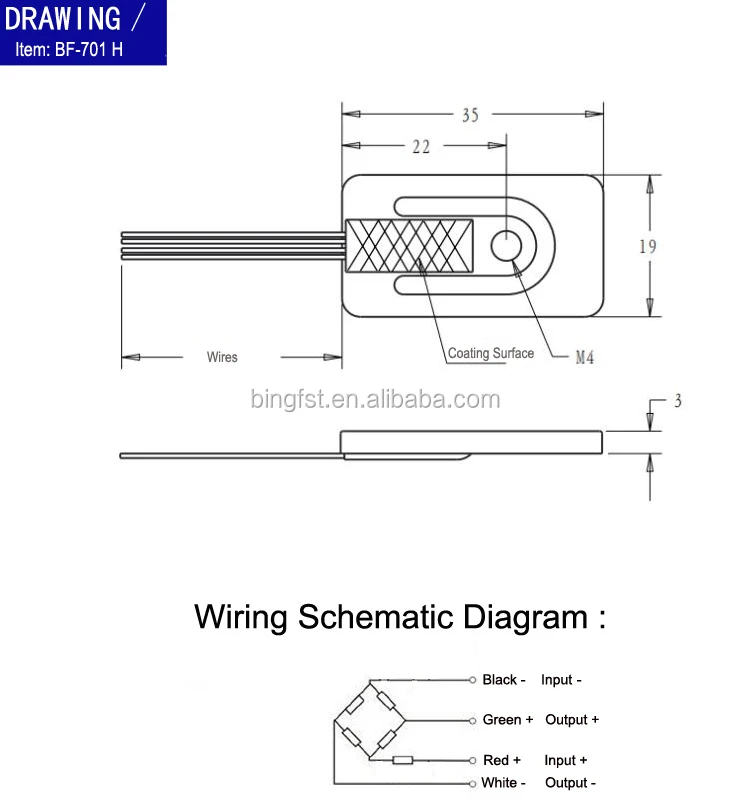

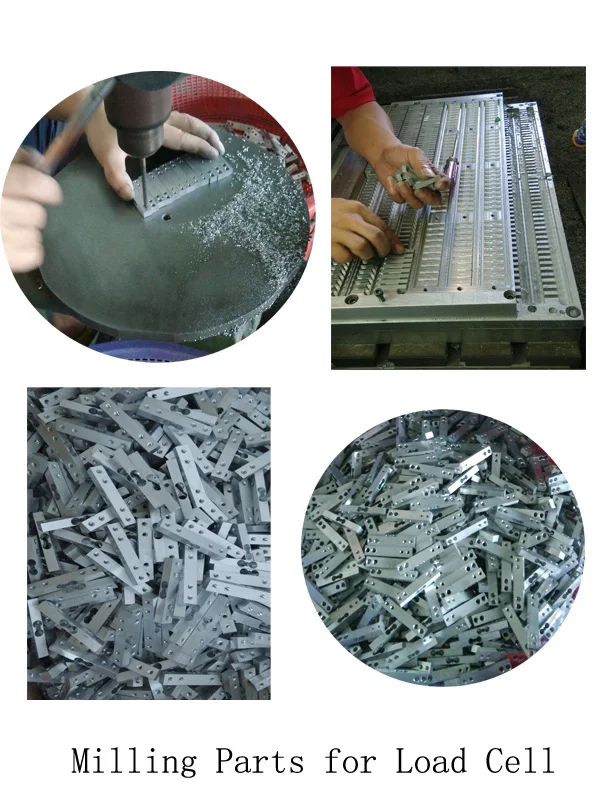

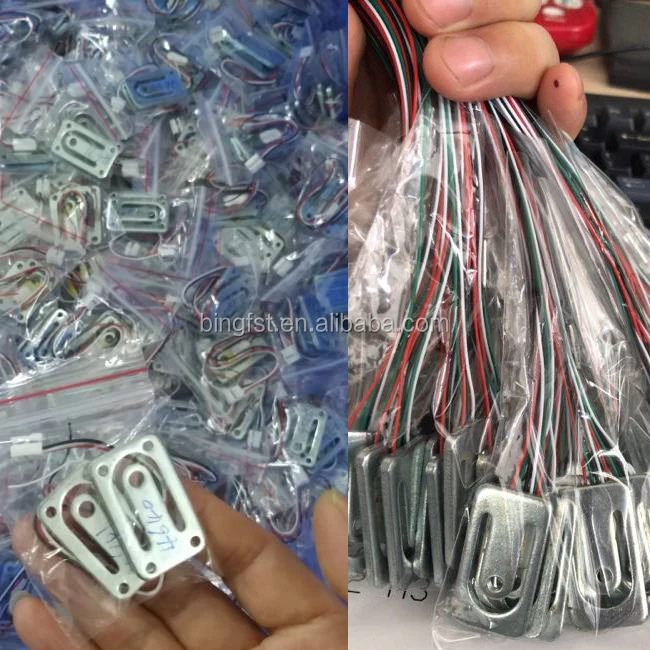

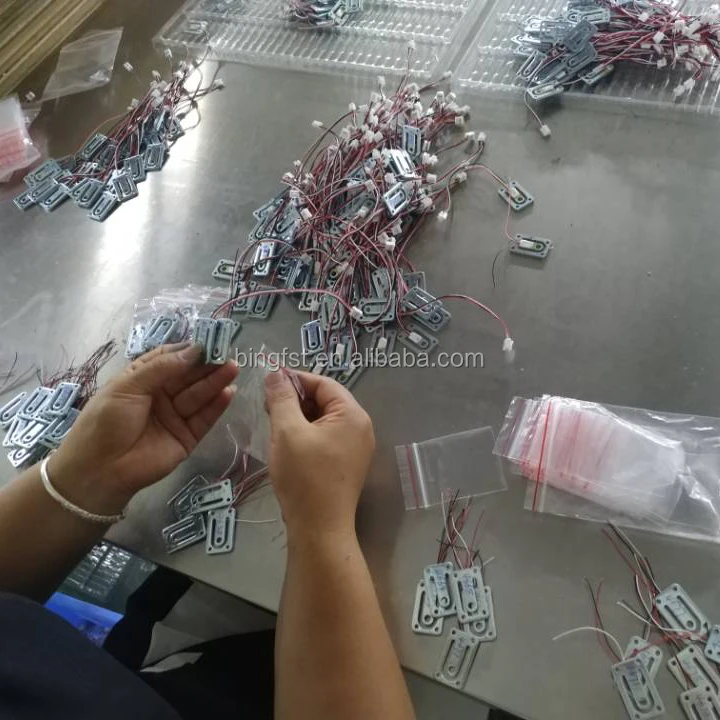

RODUCT DETAILS:

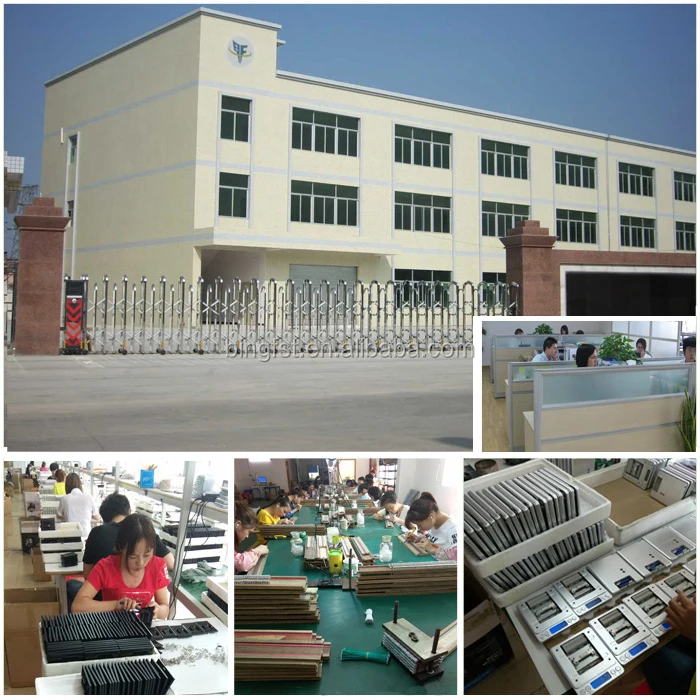

Company Information:

Bingf Science And Technology Co. Ltd , is a large group companies with more than 10 years experience in manufacturing and exporting of intelligent products, product range covers sensors , electronic scales, weighing control devices etc .

Packaging & Shipping:

FAQ:

1.Why choose our factory?
A: Bingf Science and Technology CO., Ltd is a professional manufacturer with more than 10 years experience specialized in developing and producing various kinds of sensors and scales etc.
2. How long is your delivery time?
A: Usually the delivery time is 3-25 days.
3. Can you make OEM products?
A: Yes, we also make ODM products.
4. How long is your warranty?
A: One year.
5. Can you provide the sample to check?
A: Sure, we can .The sample time is 1~7 days normally.
6. What payment terms can you accept?
A: We accept EXW, FOB, CIF etc , USA dollars and RMB are both ok.
