Small size touchless sensor switch

Supplier: Shenzhen P&h Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Willnie Hou
Price: $10.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Supply Ability:	100000 Piece/Pieces per Month;	Output:	NO/NC/COM;
Brand Name:	PH;	Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
LED color:	Red/Green;	Max. Voltage:	30VDC;
Reaction Distance:	Coud adjusted from 5-20CM;	Protection Level:	IP55;
Waterproof:	IP55;	Port:	SHENZHEN;
Max. Current:	1A;	Voltage:	12VDC/24VDC;
Mode:	NO/NC/COM;	Place of Origin:	Guangdong China;
Tiemr delay:	0.5-20Sec;	Item:	SMB-I006;
Model Number:	SMB-I006;	Size:	22mm x 32.5mm;
LED:	Greeb and Red LED;

Product Description

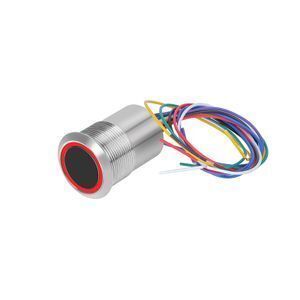

Touchless Exit Switch 22mm

No Touch Exit button for interlock systems

Internal/External control

Feature

1. With Red/Green LED indication

2. Red/Green LED can be controlled by internal mode/External mode

3. Detecting distance of SMB-I006 can be adjusted from 5cm to 20cm

4. With timer delay function. Adjusted from 0.5sec to 20sec.

5. with Pulse/toggle function

6. Dia 22mm. Fit difference size of stainless steel or metal frame.

7. Rapid reaction

8. Chang over contact. 1A@30VDC

9. Waterproof at front side.

Data Shhet

Item	SMB-I006
Voltage	12V to 24VDC
Detecting Distance	5-20 CM
Function	Pulse/Toggle
Standby Current	33mA
