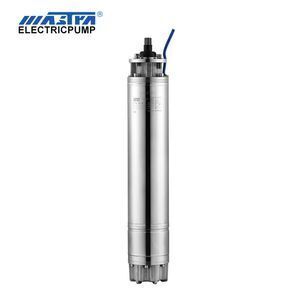

Mastra 5 Inch 25hp 18.5KW Water Cooling Submersible Pump Motor electric motor manufacturers submersible motor price list

Supplier: Guangdong Ruirong Pump Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Waine Yu
Price: $50.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Fuel:	Electric;
Warranty:	Other;	RPM:	2860;
Place of Origin:	Guangdong China;	Packaging Detail:	CARTON, WOODEN BOX, PALLET;
Standard or Nonstandard:	Standard;	Supply Ability:	10000 Piece/Pieces per Month;
Cooling type:	oil cooling;	Protect Feature:	Waterproof;
AC Voltage:	220V~380V;	Model Number:	MS125;
Usage:	Water;	Certification:	CCC,ce,RoHS;
Material:	AISI304;	Pressure:	High Pressure;
Power:	4KW~18.5KW;	Port:	Jiangmen, Shenzhen, Hongkong, Guangzhou;
Phase:	Single-phase;	Theory:	Centrifugal Pump;
Efficiency:	IE 2;	Frequency:	50Hz;
OEM:	available;	Type:	Induction Motor;
Brand Name:	EG;

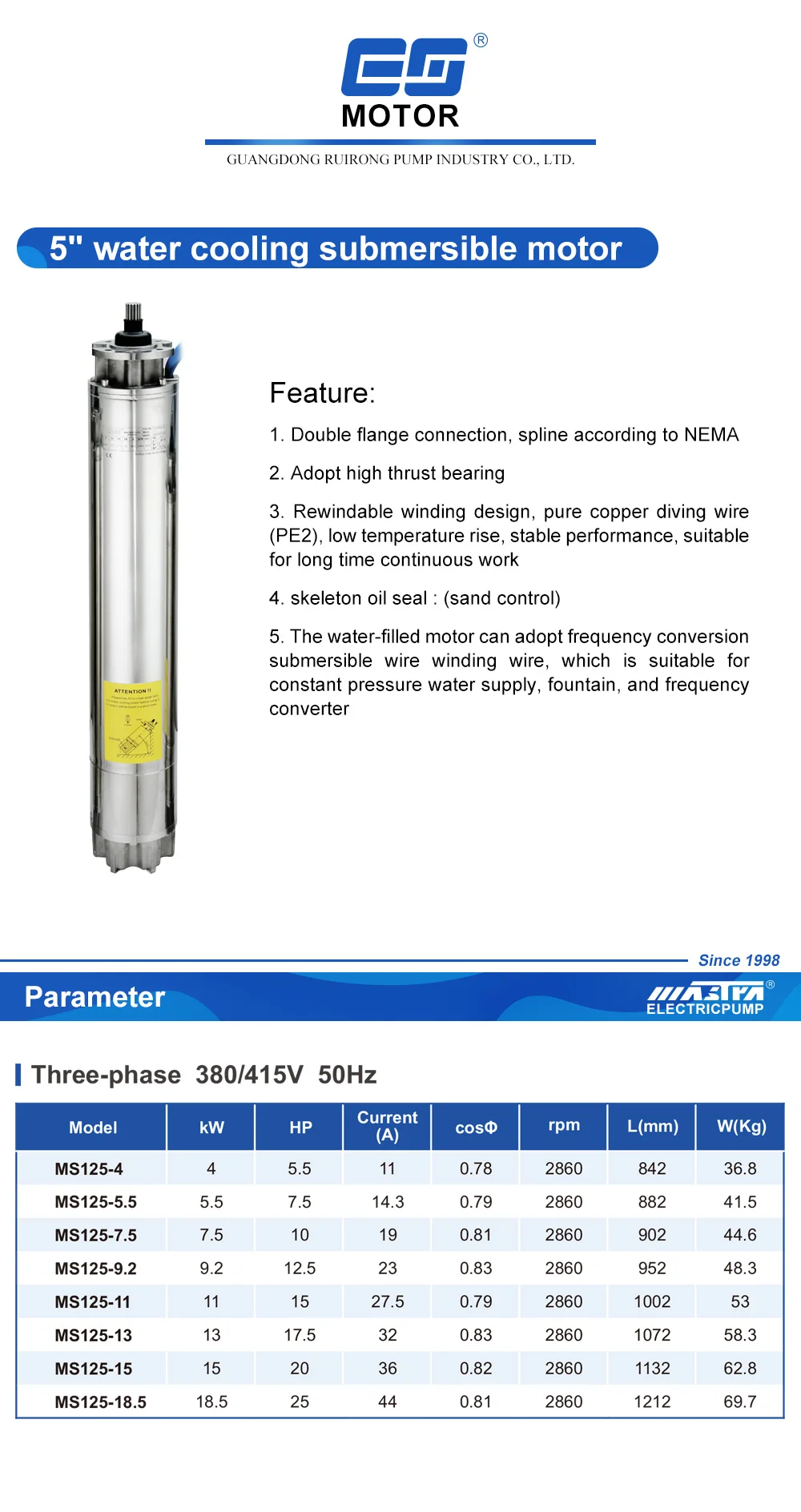

Mastra 5 inch 380V Water Cooling Submersible Motor 50Hz

Feature:

1. Double flange connection, spline according to NEMA

2. Adopt high thrust bearing

3. Rewindable winding design, pure copper diving wire (PE2), low temperature rise, stable performance, suitable for long time continuous work

4. skeleton oil seal : (sand control)

5. The water-filled motor can adopt frequency conversion submersible wire winding wire, which is suitable for constant pressure water supply, fountain, and frequency converter

Model	kW	HP	Current(A)	cosΦ	rpm	L(mm)	W(kg)
MS125-4	4	5.5	11	0.78	2860	842	36.8
MS125-5.5	5.5	7.5	14.3	0.79	2860	882	41.5
MS125-7.5	7.5	10	19	0.81	2860	902	44.6
MS125-9.2	9.2	12.5	23	0.83	2860	952	48.3
MS125-11	11	15	27.5	0.79	2860	1002	53
MS125-13	13	17.5	32	0.83	2860	1072	58.3
MS125-15	15	20	36	0.82	2860	1132	62.8
MS125-18.5	18.5	25	44	0.81	2860	1212	69.7
