Video outgoing-inspection: | Provided; | Packaging Detail: | 1. LCL/FCL(20GP/40GP/40HQ) 2. Packed with plastic film in fumigation free wooden case or fixed with iron frame 3. Up to export standard, suitable for delivery 4. Customer's requirements available.; |
Marketing Type: | New Product 2020; | Processing Types: | Home Brewing Equipment; |
Material: | SS/Red copper; | Selling Units: | Single item; |
Warranty of core components: | 1 Year; | Weight: | 300KGS - 700KGS; |
Place of Origin: | Shandong China; | Machinery Test Report: | Provided; |
Single gross weight: | 68.0 KG; | After Warranty Service: | Video technical support,Online support; |
Keywords: | 25 Gallon Beer Fermenter; | Single package size: | 23X23X23 cm; |
Condition: | New; | Thicken board: | 2-3mm; |
Dimension(L*W*H): | 1900*650*1750; | Machinery Capacity: | 50L,100L; |
Showroom Location: | Canada,United Kingdom,United States,Germany; | Package Preview: | ; |
Heated way: | Electricity/Steam/Direct fire; | Certification: | CE&ISO,CE ISO PED; |
Key Selling Points: | High Productivity; | Warranty: | 5 years; |
Program: | Automation for SD-complete brewing system; | Insulation materials: | Pu foam insulation; |
After-sales Service Provided: | Field installation, commissioning and training; | Core Components: | Pressure vessel,PLC; |
Power: | 5KW - 10KW; | Processing: | Fermenting Equipment; |
Applicable Industries: | Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Retail,Food & Beverage Shops; | Local Service Location: | Canada,United Kingdom,United States,Germany; |
Appearance: | Elegant and Artistic; | Jacketed beer fermenter: | single tank,single control; |
Voltage: | 220V/50HZ/3Phase; | Brand Name: | NDL Craft; |
Guarantee period: | 3 years for SD-brewery equipment; |

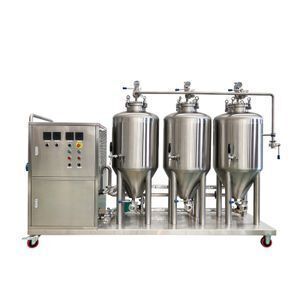

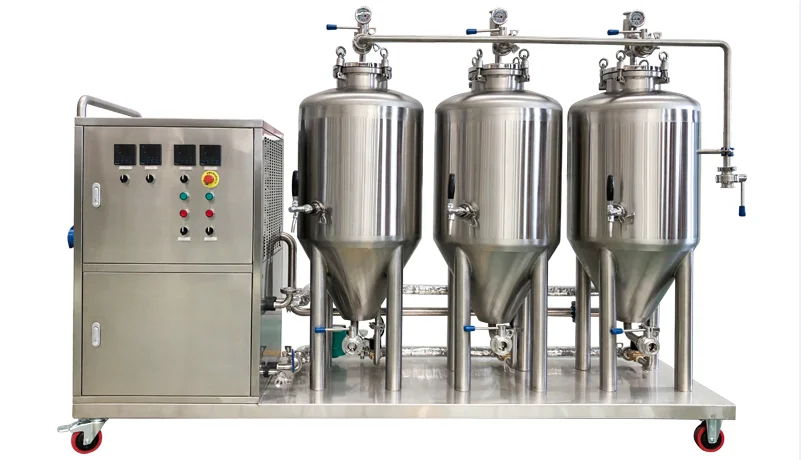

60L Home Brewery:
This type 60l beer brewery equipment includes two vessels brewhouse, 2 or 3*60l fementers, glycol water tank, chiller and control cabinet and fitting all necessary parts.
The 60l beer brewery machine is easy to operate, bottom with wheel, easy to move, it is suitable for home brewing / beer recipes test / pilot brewing etc.
60L Brewhouse:
60L Fermenter
100L Fermenter:
Fermentation tanks are where the magic happens. It’s important to have a precisely built vessel to condition your beer as it ferments. NDL Craft offers fermentation tanks with ultra-precise welding and polishing, complete traceability, and material exactness to meet all international safety standards. From small, pub-size fermenters to towering outdoor tanks, we have the manufacturing capability and expertise to custom-build fermentation tanks of all sizes.
Home brewing equipment brewing process:
1) Crushing and saccharification: Grind the malt to powder, make the wort after mashing transported to the filter pan by a pipeline
2) Filter: Send the wort after mashing boiled to wine tank filtration, separate the wort and spent grains
3) Boil and add hops: Transferred to cooking wine cooking water tank with 100 degrees about 70 minutes, After adding hops, cooking the wort to the remaining 1000L till then along the pipeline transported to the fermentation room Cooling
4) Cooling: The wort’s temperature is lowered to 10-12 C by cooler, then go into the fermentation tanks to ferment.
5) Fermentation: After adequate cooled wort into the fermenter, adding 10 - 15L of yeast for fermentation, takes about six days left to complete the fermentation, in this step will be the final malt in the sugar into alcohol by yeast (yeast Jiamai juice = Beer )
6) Slaking and storage: Mature in the beer store as the necessary steps before ripening, beer maturation takes about three weeks of storage at 0 ° C for cask beer color, unique flavor development in this step will be the formation
Home brewing equipment technical parameters:
Product Capacity | 25Gallon/50L/100L |
Total Power | 5KW - 10KW |
Equipment Size | 1900*650*1750mm |
Floor Area | 1.6m2 |
Water consumption | 150L |
Malt consumption | 10KGS |
Hops consumption | 30g |
Yeast consumption | 1 L |
Raw material for beer brewing:
Water: The most important in terms of the beer ingredients, it must be pure colorless, odorless.
Malt: bee malt was divided into Barley and wheat
Hops: the main source of beer flavor
Yeast: a fungus, which enables wort sugars into alcohol and carbon dioxide1. brewing way
Brewed beer is divided into six steps, it would take about 28 days to complete.
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Factory Size: | 40,000 square meters |
Factory Location: | Renhe Road, Pingyuan Economic Development Zone, Dezhou City, Shandong, China. |
No. of Production Lines: | 7 |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Annual Output Value: | US$80 Million - US$100 Million |
Based on the customized requirements of global customers, the company has established an ERP management system and has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification, ISO14001 Environmental Certification, ISO18001 Occupational Health and Safety System Certification, DI, and DII Pressure Vessel Certification. We have also been recognized at a national-level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.
NDL Craft with more than 10 years experience for Beer Brewery Equipment Produc industry, prefessional global craft beer and wine equipment "One-stop" suppliers
