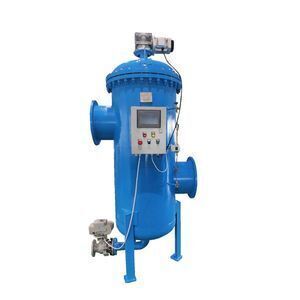

Industrial 200 micron sus304 self cleaning water filter/water filter industrial/industrial brush water filter

The automatic self-cleaning filter is composed of a casing, a multi-filter, a backwashing structure, an electric control box, a reducer, an electric valve and a differential pressure controller. The diaphragm in the housing divides the inner cavity into upper and lower chambers, and the upper chamber is provided with a plurality of filter elements, so that the filter space is fully utilized, the filter volume is significantly reduced, and the backwashing suction cup is installed in the lower chamber. During operation, the turbid liquid enters the lower cavity of the filter through the inlet, and enters the inner cavity of the filter element through the partition plate. The impurities larger than the gap of the filter core are trapped, the clean liquid passes through the gap to reach the upper cavity, and finally is sent out from the outlet.

When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter cartridge, and the clean water flows out of the outlet.As the impurities in the inner surface of the filter tube piles up, the differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin. The self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter;The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter. Control mode consists of differential pressure, time, manual and PLC control.

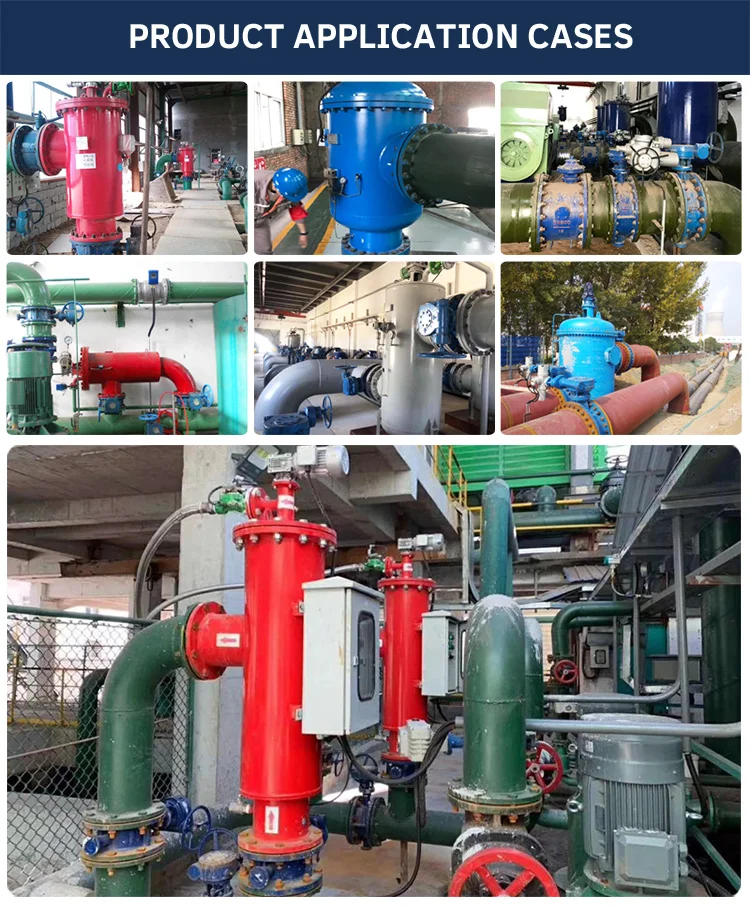

1.The application of industrial filter:

cooling water filter; nozzle protection; sewage tertiary treatment; municipal water reuse; workshop water; pre-filtering of R.O. system; acid pickling; filtering of paper-making white water; injection molding machine; pasteurization system; vacuum pump system; air compressor system; continuous casting system; water treatment applications; refrigeration and heating water systems

2.The application of irrigation filter:

groundwater; municipal water; rivers, lakes, sea water; orchard; nursery; Greenhouse; golf course; park.
