Single package size: | 15X12X12 cm; | Brand Name: | TJDHTONG; |
Raw Material: | 60Si2MnA, 60Si2CrA, 55Si2Mn,; | Selling Units: | Single item; |
Place of Origin: | Tianjin China,Tianjin, China (Mainland); | Material: | 700/900A/1100,700/900A/1100; |
Package Preview: | ; | Standard: | ASTM; |
Hardness: | 44-48HRC; | Single gross weight: | 0.5 KG; |
As per dwg: | Nabla Clip; | Dimensions (L x W x H) (mm): | As per dwg,Dia. 41mm; |
Type: | Light Rail; | Item Category: | Nabla Clip; |
Surface: | Polish Moulded; | Model Number: | RSSR; |

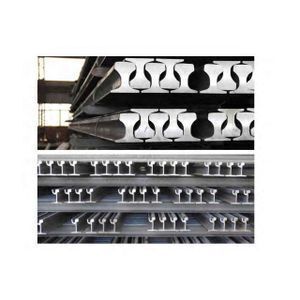

Steel Rail
1. Chinese Standard Light Rail
Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Standard YB222-63: 8KG, 18KG, 24KG
Specifications
Standard: GB11264-89 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length(m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
GB6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235B | 6-12 |
GB9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235B | 6-12 |
GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235B/55Q | 6-12 |
GB15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235B/55Q | 6-12 |
GB22KG | 50.3 | 93.66 | 93.66 | 10.72 | 23.3 | Q235B/55Q | 6-12 |
GB30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235B/55Q | 6-12 |
Standard: YB222-63 | |||||||
8KG | 25 | 65 | 54 | 7 | 8.42 | Q235B | 6-12 |
18KG | 40 | 90 | 80 | 10 | 18.06 | Q235B/55Q | 6-12 |
24KG | 51 | 107 | 92 | 10.9 | 24.46 | Q235B/55Q | 6-12 |
