LED Vacuum UV Exposure Unit

Supplier: Suzhou Tianjiu Printing Machine Co., Ltd.
Region: Jiangsu, China
Contact: Mr jinling Huang
Price: $260.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

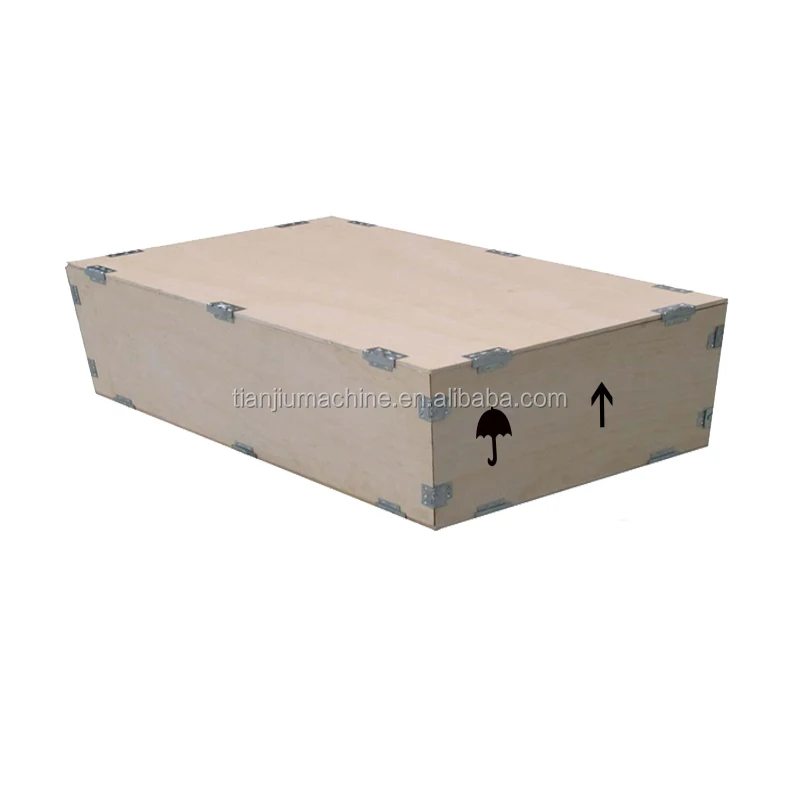

Packaging Detail:	Exposure Unit wooden carton 35kg/set;	Supply Ability:	500 Unit/Units per Month;
Application area:	Screen Plate Machine;	Features:	Energy saving;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Application:	Screen Printing;
Automatic Grade:	Semi-Automatic;	Max.exposing area:	500mm*600mm;
Product name:	Exposure Unit;	Place of Origin:	Jiangsu China (Mainland);
Weight:	35kg;	Brand Name:	TJ;
Warranty:	One Year;	light source:	LED UV;
Type:	Plate Exposure;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:	110v~220V;	Dimension(LWH):	750x680x200mm;
Condition:	New;	Lamp:	LED Lamps;
Certification:	CE;	Port:	shanghai guagnzhou qingdao fujian ect;
Type:	screen printing machine;

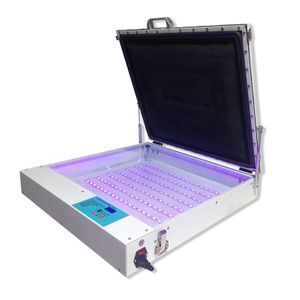

LED Vacuum UV Exposure Unit

Product Description

Name	LED Vacuum UV Exposure Unit
Application	The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. when you put the film onto the plate into UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.
Feature
1	Adopting high efficiency UV LED light source,which save 50% electricity than ordinary model.
2	Vacuum model, use high quality rubber cloth,longer lifetime.
3	Built-in vacuum pump,very fast to vacuum

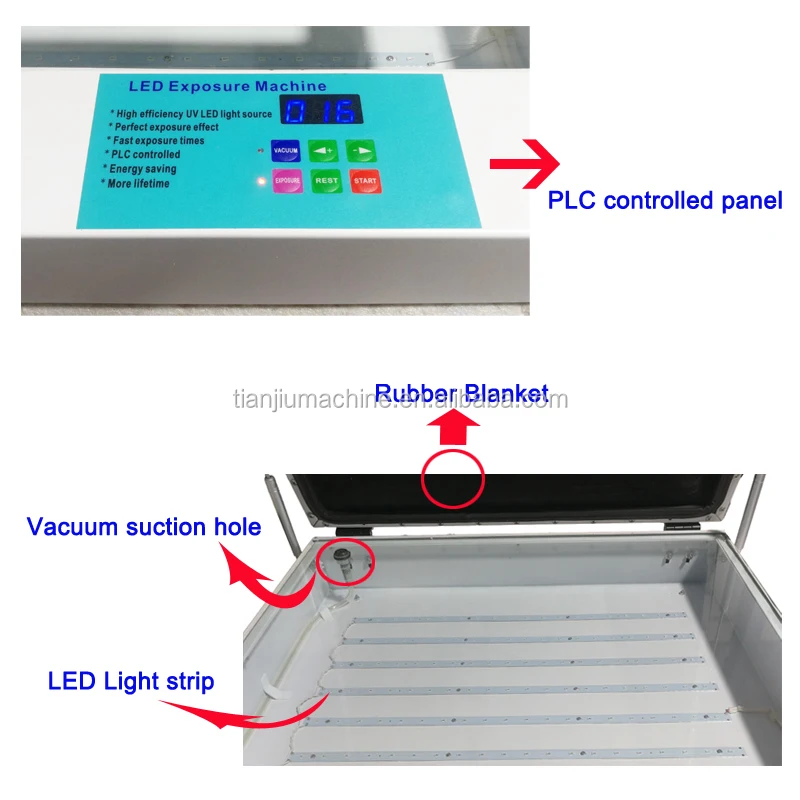

4	PLC controlled panel, very easy to operate.
5	Automatic memory function for working as original seting next time
6	Perfect exposure effect because of LED light.
7	Fast exposure time,about 40-70 seconds.
8	Energy saving and environment friendly.
9	Stable exposure quality,more lifetime.
10	Durable and beautiful with steel coat.

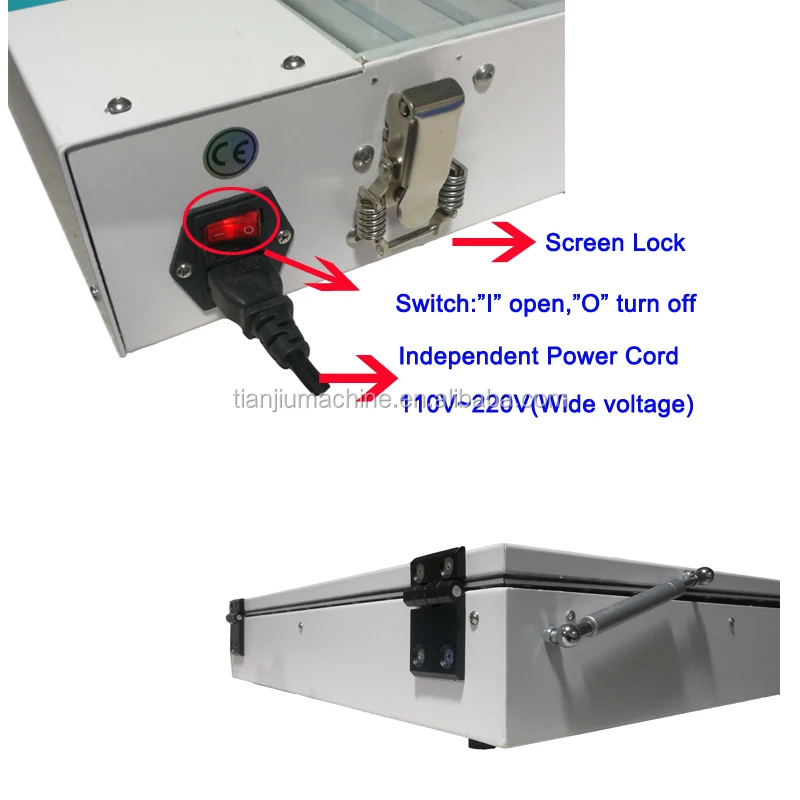

11	Outside connecting power plug, safety and convenience.
12	Easy to transport,LED light is not fragile in delivery.
Parameter
1	Max.exposing area(mm):520mmx610mm
2	Voltage (single phase ): 220V or 110V
3	Vacuum Degree:80 kpa
4	Time control: 0-999s
5	Power of lamps: 80W (8 10w UV LED-line)
6	Packing size: in one caton(750680200mm)
7	Weight: 35KG
Warranty	For all our machines, we provide one-year warranty. Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by us.
