After-sales Service Provided: | Online support; | Port: | Osaka; |
Warranty of core components: | Please contact us; | Payment Terms: | T/T; |
Place of Origin: | Japan; | Machinery Test Report: | Please contact us; |
Showroom Location: | Japan; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory; |
Core Components: | Please contact us; | Warranty: | 1 YEAR, To be discussed; |
Supply Ability: | 10 Piece/Pieces per Month; | Marketing Type: | Please contact us; |
Packaging Detail: | D750xW750xH1430mm cardboard and export wooden packing; | After Warranty Service: | Online support; |
Local Service Location: | Japan; | Video outgoing-inspection: | Please contact us; |
Brand Name: | Suiden; | Condition: | New; |

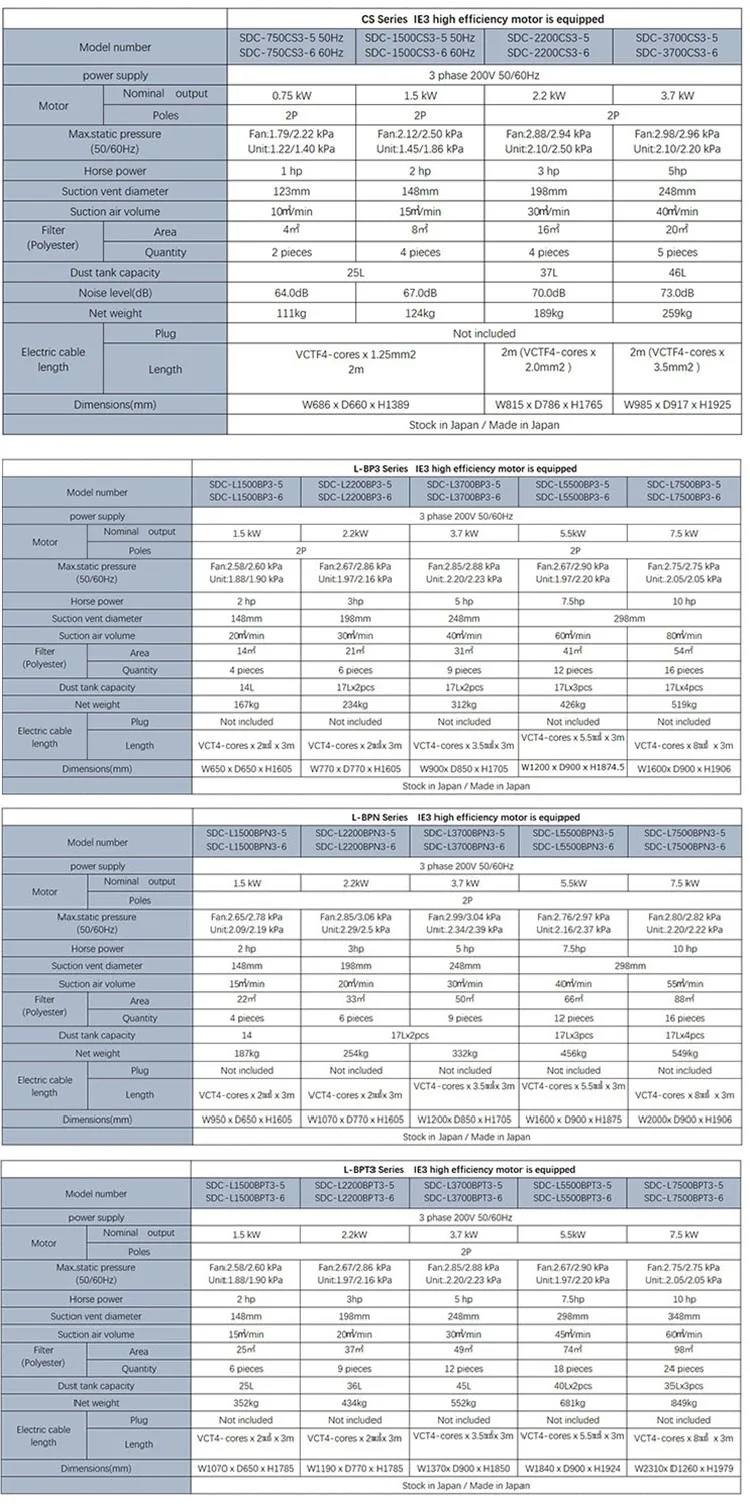

Compact-Series | ||||||||||||||||||||||||
Model number | SDC-L-400-1V-5 | SDC-L-400-1V-6 | SDC-L-400-1V-7 | SDC-L-400-1V-8 | ||||||||||||||||||||
power supply | Single phase 100V | 3 phase 200V | ||||||||||||||||||||||
Frequency | 50Hz | 60Hz | 50Hz | 60Hz | ||||||||||||||||||||
Motor | Nominal output |
0.4kW | 0.4kW | |||||||||||||||||||||
Poles | 4P | 4P | ||||||||||||||||||||||
Max.static pressure (50/60Hz) |
Fan:1.64 kPa Unit:1.3 kPa |
Fan:1.6 kPa Unit:1.2 kPa |
Fan:1.6 kPa Unit:1.2 kPa |
Fan:1.6 kPa Unit:1.2 kPa |
||||||||||||||||||||
Horse power | 0.5 hp | |||||||||||||||||||||||
Suction vent diameter | 74mm | |||||||||||||||||||||||
Suction air volume | 3.5m³/min | |||||||||||||||||||||||
Filter (Polyester) |
Area | 0.4m² | ||||||||||||||||||||||
Dust tank capacity | 4L | |||||||||||||||||||||||
Noise level(dB) | 64.0dB | |||||||||||||||||||||||
Net weight | 51kg | 46kg | ||||||||||||||||||||||
Electric cable length | Plug | Japanese Type A plug is equipped | Not included | |||||||||||||||||||||
Length | VCTF 2mm² x 3cores 2m | VCTF 1.25mm² x 4cores 2m | ||||||||||||||||||||||
Dimensions(mm) | W400 x D590 x H435 | |||||||||||||||||||||||
Stock in Japan / Made in Japan |
