Supply Ability: | 500000000 Meter/Meters per Quarter; | Product name: | RG6 coaxial cable; |
Model Number: | RG6; | Brand Name: | OEM/JIANYE; |
Braids: | AL-MG/ CCA; | Place of Origin: | Zhejiang China; |
Packaging Detail: | 305M/Wood drum 2drums/CTN 100M/COIL 6coils/CTN; | Certification: | CE /CCC/ISO9001/ISO14001/OHSAS18000/ASG/CNAS/MA; |
Factory: | Yes; | Shield: | PVC/PE LZSH; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Conductor size: | 1.02; |
Insulation Material: | FPE; | Port: | Ningbo/Shanghai; |
insulation: | FPE; | Keywords: | coaxial cable; |
Conductor: | CCS/CU; | Application: | Camera/CCTV/Network,CCTV/CATV; |
Package Preview: | ; | Jacket: | PVC; |
Conductor Material: | CCS/CU; | Number of Conductors: | 1; |

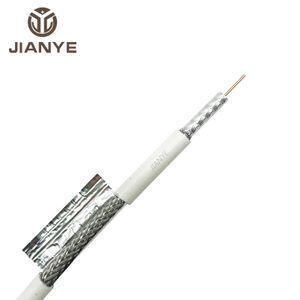

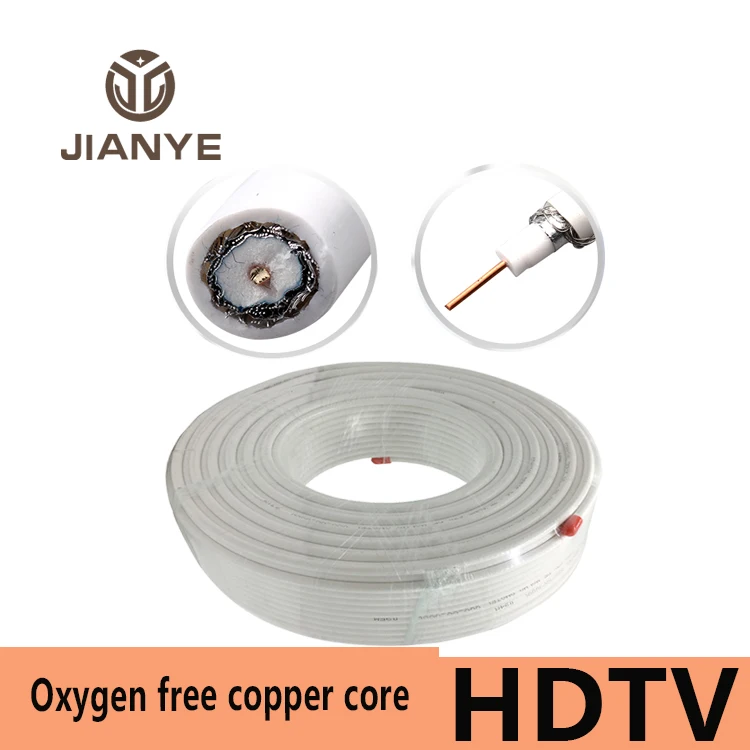

RG6
Structure | Material | RG6 DUAL | RG6 TRI | RG6 QUAD |
Conductor | BC/CCS | 1.02mm(18AWG,0.04'') | ||
Dielectric | FPE | 4.57mm(0.18'') | ||
1st Shield | Al Foil | 100%, Overlap>2mm | ||
2nd Shield | BC or Al Braiding | 30%-95% | 60% | |
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
4th Shield | BC or Al Braiding | - | - | 40% |
Jacket PVC/PE | Outer Diameter | 6.91mm(0.272'') | 7.02mm(0.276'') | 7.62mm(0.30'') |
Nominal Thickness | 0.76mm(0.030'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |
Messenger | Steel | 1.30mm or 1.83mm |
Dielectric Adhesion | >20N/5cm | |
Breaking Strength of Messenger | 1.30mm 82kgf;1.83mm 166kgf | |
Impendence | 75±3 Ohm | |
Capacitance | 50±3.0 nf/KM | |
Return Loss (100% swept) | 1~470MHz | ≥22dB |
470~1000MHz |
≥20dB |
|
1000~2200MHz | ≥18dB |
