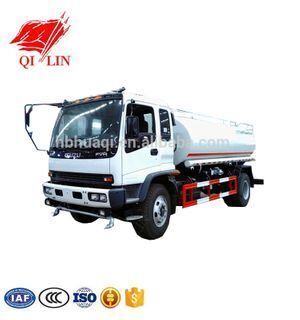

Isuzu chassis 4X2 6000 liters water tank truck

Product details
Curb weight:4000kg;Packaging Detail:Nude, polish with water wax before shipment for Isuzu chassis 4X2 6000 liters water tank truck;
Sprinkling Area (m):12 - 16m;After-sales Service Provided:Engineers available to service machinery overseas;
After-sales Service Provided:No after-sales service;Fuel:Diesel;
Place of Origin:Hebei China (Mainland);Brand Name:QI LIN;
Tire:8.25R20/7pcs(include 1 spare tire);Tank Volume:5001 - 10000L;
Port:Tianjin,Qingdao;Transmission Type:Manual;
Axle:2pcs;Tank volume:10cbm;
Drive Wheel:4x2;Supply Ability:300 Unit/Units per Month Isuzu chassis 4X2 6000 liters water tank truck;
Braking system:With ABS system;Gross Vehicle Weight:13000;
Condition:New;Dimensions (L x W x H) (mm):7200mmX2300mmX2500mm;
Emission Standard:Euro 3;Tank body:5mm thickness;
Water sprinkling form:Front spray,rear sprinkle,with upper sprinkler gun.;Certification:CCC,ISO 9001,GSG,UL;
Electrical system:24 voltage,7 wire harness.;Payment Terms:L/C,D/P,T/T,Western Union;
Engine Capacity:4 - 6L;





Product Description



BrandQI LIN
ModelQLG5163GSS
Curb weight4000kg
Overall dimension7200mmX2300mmX2500mm
Gross weight13000kg
Tank volume10cbm
CompartmentSingle
Tank materialQ235b carbon steel
Tank body5mm thickness
Seal head5mm thickness
Clapboard5mm thickness
Ball valve2.5 inch
Manhole1pc standard
Sprinkle water pump45 type
Water sprinkling formFront spray,rear sprinkle,with upper sprinkler gun.
Water pressure0.4mpa
Chassis brandDongfeng/JAC/FAW(optional)
Drive typeLeft/right hand drive optional
Drive wheel4x2
TransmissionManual,5 speed forward with 1 reverse



Axle2pcs
Tire8.25R20/7pcs((include 1 spare tire)
Cab2 or 3 passengers
Front/rear tread1750mm/1586mm
Front/rear suspension1180mm/1920mm
Wheelbase3800mm
Approach/departure angle22°/15°
Leaf spring number8/10+7
EngineCommins/Yuchai/Chaochai(optional)
EmissionEuro 2/3/4
Horse power150hp
Braking systemWith ABS system
Max speed90Km/h
Fuel typeDiesel
Electrical system24 voltage,7 wire harness.
LightLED type
PaintingWith shot blasting and 4 layers painting,color is optional.
Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.

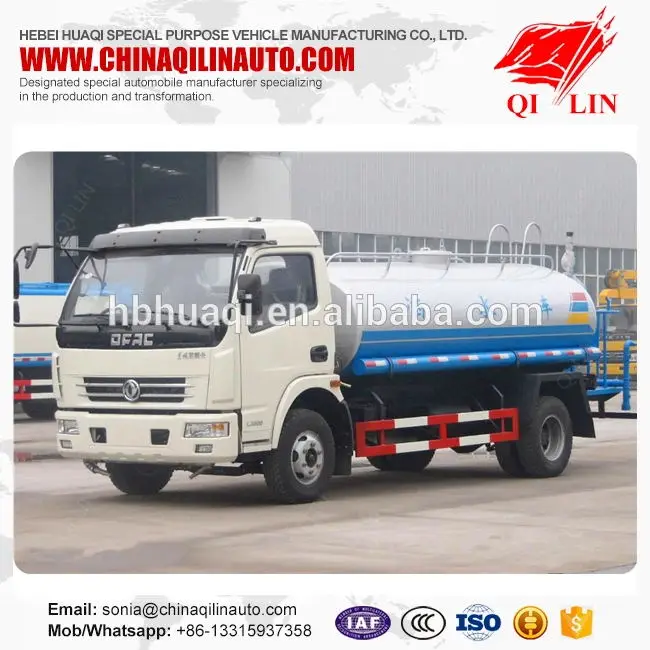

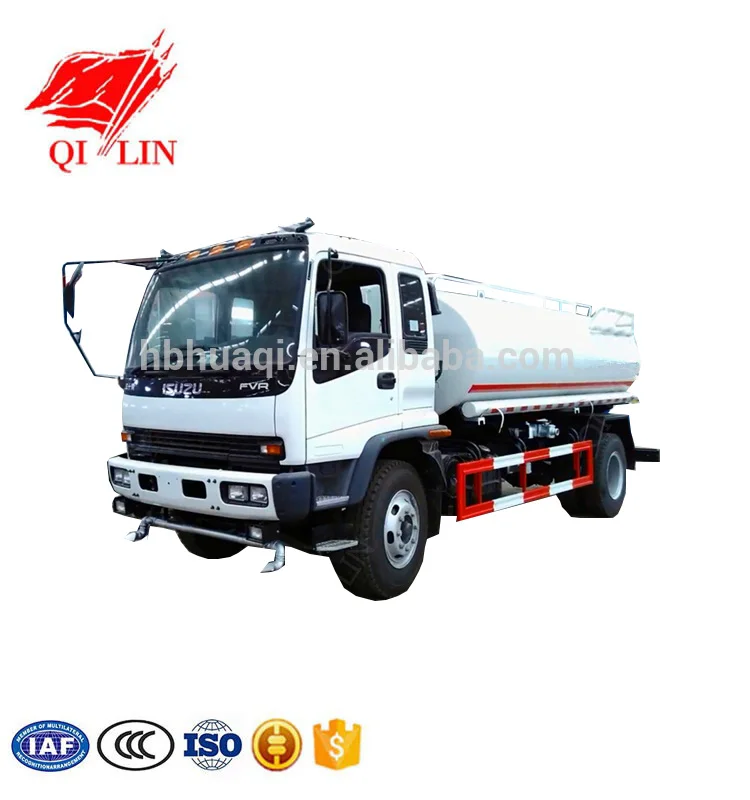

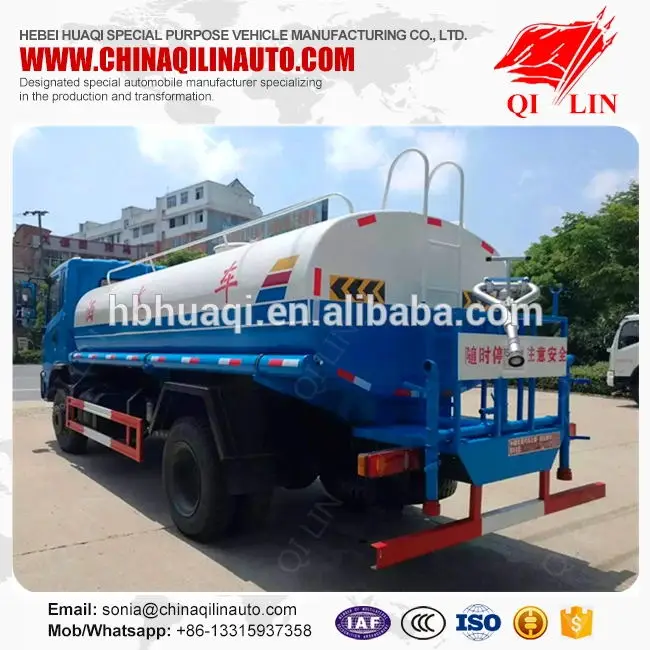

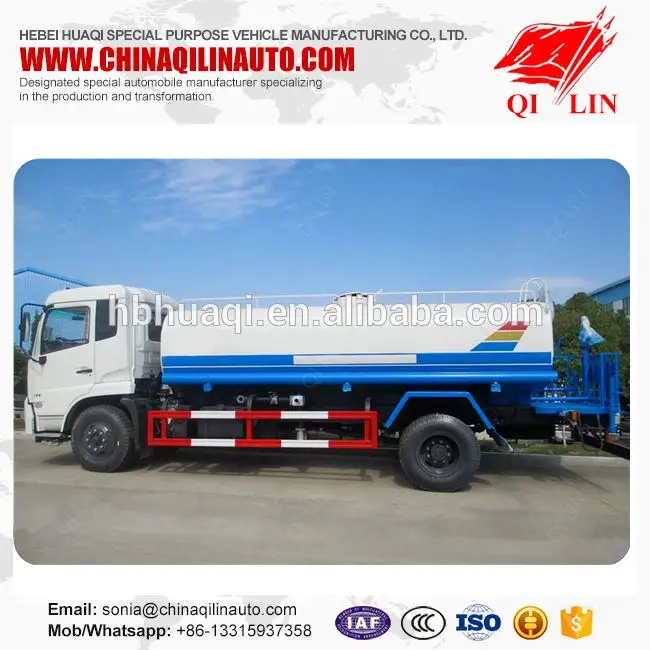

Product Image
