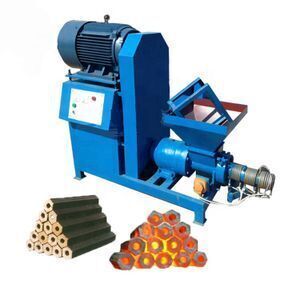

Agricultural waste wood sawdust briquette making machine

Product details
Video outgoing-inspection:Provided;Machinery Test Report:Provided;
Warranty:1 Year;Local Service Location:Indonesia,South Africa,Nigeria;
spare parts:propeller,heating rings,mold;Warranty of core components:1 Year;
Certification:CE ISO;Marketing Type:Ordinary Product;
Condition:New;Showroom Location:Indonesia;
Diameter of briquettes:50~80mm Customized;Dimension(L*W*H):190*70*160cm;
Capacity:260-400kg/h;Voltage:220V/50HZ,380V/50HZ or customized;
Weight:780kg;Packaging Detail:wooden case;
After-sales Service Provided:Video technical support,Online support;Single gross weight:220.0 KG;
Brand Name:Ainuok;Raw Material:rice husk,coconut shell,peanut shell, sawdust, straw,grass;
voltage:380v/50HZ or customized;Selling Units:Single item;
Application:compress biomass material into briquettes;Moisture of raw material:8%-12%;
Features:Reasonable design, reliable quality;Production Capacity:260-400kg/h;
Single package size:185X54X115 cm;Key Selling Points:Compact structure and long lifetime service;
Core Components:PLC,Engine,Bearing,Pressure vessel,Gear;Package Preview:;
Feeding size:3-5 Mm;warranty:1 year;
Applicable Industries:Hotels,Manufacturing Plant,Farms,Home Use,Retail,Energy & Mining,Power plant,boilers,BBQ charcoal shisha plant;Place of Origin:Henan China;
Briquette Shape:Rod;Product name:Biomass material Brequette machine;
Product Description

Biomass sawdust briquette machine

Biomass charcoal briquette machine can compress rice husk,coconut shell,peanut shell, sawdust, straw,grass,and other agricultural waste mechanically into rods,blocks and particles to improve ten times fuel value per unit volume.



Working Principle of sawdust biomass briquette machine:
It uses a screw propeller to compress and extrude the biomass into briquettes. Under high pressure and temperature, the natural lignin inside biomass material will be released and act as binder to combine particles to briquette with high density. The shape of briquette can be round, square, hexagonal, quadrangular or as your requirement.



The machine can extrude particulate waste(Moisture content<12% bamboo,wood,shell,straw)into solid bar with a central bore . After the tremendous pressure of this machine, the rods have certain intensity,high density,stable performance,which makes the final product easy to transport and convenient to store.





Feature:
1.Reasonable design, reliable quality, simple structure, convenient operation, small size, small occupation area, labor saving and electricity saving.
2.Auto-control electric heating device
3.Use special wear-resistant material
4.Suitable for all kinds of raw materials of biomass briquette
5.Improve the bearings to be more stable and durable.
6.The ways of lubrication has improved from basting to immersion
7.Better solution to the problem of residue disposal

Technical parameter

Model

Power

Capacity

Weight

Dimension

BC-50

18.5KW

220-280Kg/H

750Kg

1.9*0.7*1.6m

BC-50A

22KW

350-400Kg/H

780Kg

1.9*0.7*1.6m





Process flow chart

(1)Crush raw material into small pieces(diameter is about 3-5mm).
(2)Dry the material by dryer or dried it in the sun,till the moisture is less than 12%.
(3)Put the material into feed let of briquette machine.
(4)Produce the briquette stick from biomass material without any additive.



Related machines

Hammer mill crusher Charcoal carbonization furnace



Our advantage

1.Widely choice on different kind of biomass materials.
2.Make waste wood,crop,biomass material into charcoal.
3.Make waste into value.Make into solid fuel.
4.Can working in group,improve the working efficient.
5.Different Model to meed client own request.
6.Customized designs for customers .
7.Offer Turn-key service on Pellet Production Project



About Ainuok

Founded in 2010, Anyang Ainuok Machinery Equipment Co., Ltd is specialised in the research, development, production and sales of Wood Crusher Machine, Feed Pellet Machine, Charcoal Machine and Briquette Machine for more than 10 years.

We have got quality certifications of ISO9001, SGS, and CE etc. Machine color, logo, design, package, carton mark, manual etc can be customized! With a production ability of 5000 sets per month, AINUOK is the largest crusher and pellet factory in China.

Wood Crusher Machine, Feed Pellet Machine, Charcoal Machine and Briquette Machine have been exported to England, Russia, Sweden, Poland, Romania, Malaysia, Indonesia, Vietnam etc 120 countries and districts. Warmly welcome clients at home and abroad to visit Ainuok company.





Contact us

FAQ

Q1:What’s the delivery method?
Normally by shipping line packed by wooden case in 20GP or 40 Feet container.
Air express also available.
Q2: What’s the delivery time?
Within 10-15 days when we got the 30% deposit .
Q3: What’s the payment term?
T/T, Western Union, L/C, etc
Trade Assurance of Alibaba is highly recommended
Q4: How long is the warranty period?
1 year. Free spare parts for replacement.
Life-time after-sale service. Technicians stand by 24/7 to offer support
Q5: How do I operate the machine?
1) We offer the best operation manual with the machine.
2) Specific drawings or teaching videos are offered, if necessary
Q6: How do I get the machine?
1) Contact me for latest prices. We confirm the products details.
2) We send you the PI with our bank account
3) We prepare the products after we get your advanced deposit
4) We send you photos of the machine before and after packing
5) You pay the balance, we deliver the machine
6) We send you the B/L and other papers, keep track till you get the machine
