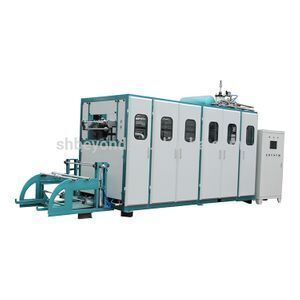

plastic drinking glass making machine

Supplier: Shanghai Beyond Electromechanical Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms. shana zhang
Price: $29800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Certification:	CE,UL,ISO 9001;
Product name:	plastic drinking glass making machine;	Product Type:	cup, bowl, box;
Power(W):	70kw;	Weight:	6.5T;
Vacuum Pump:	Rietschle;	Supply Ability:	10 Set/Sets per Month Plastic drinking glass making machine;
Processing Type:	Plastic Thermoforming Machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	1 Year;	MAX Moulding width:	480mm;
MAX Moulding height:	125mm;	Dimension(LWH):	L8200xW2200xH3200mm;
Material:	PVC, PET, PP, PS, ABS, PC, APET, PE, EPS, PETG;	External Demension:	L8200xW2200xH3200mm;
Electrical part brand:	customized;	Place of Origin:	Shanghai China (Mainland);
Brand Name:	BBS;	Forming area:	740*480mm;
Voltage:	380V/50HZ;	Color:	Customized Color;
Packaging Detail:	Each parts wrapped with EPE or wooden craft packing(standard exporting package) for Plastic drinking glass making machine;	Port:	Shanghai port;
Payment Terms:	L/C,D/A,D/P,T/T;	MAX Moulding length:	740 mm;

Product Description

Plastic drinking glass making machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yoghourt cups, trays, plates, covers, lids, containers, etc.

Application:

Plastic drinking glass making machine is widely applied in 0.15-2.0mm of PP, PS, PVC, PET etc., plastic sheet thermoformed products such as plastic cup, plastic bowl, flower pot, plastic food container, plastic tray, cake tray etc...

Technical Parameter

Product Name	Plastic drinking glass making machine
Forming Area	740mmx480mm
Forming Depth(Max.)	180mm
Sheet Thickness	0.15-2.0mm
Sheet width	750mm
Forming Speed	26 times/min at max
Rated Power	140kw
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min
Water Consumption	0.7m³/h
Power Supply	AC 380V,50Hz,Three-phase, four-wire
Dimension(mm)	About L8200×W2200xH3200mm
Weight	About 6.5T

Company Profile

Shanghai BEYOND Electromechanical Technology CO., Ltd is a leading manufacturer specializing in plastic extruders, plastic vacuum forming machines, thick sheet thermoforming machines, plastic cup thermoforming machines and other related packaging machinery.

We also provide one-stop service: produce all kinds of plastic products, such as plastic food containers, plastic cups, plastic trays, cup lids and thick sheet thermoforming products such as car boots, ceilings, meter panels and other related thick sheet thermoforming products and molds. Meanwhile, we can accept the customized products according to the customer’s requests.

With advanced automatic machinery in more than 3,000 square meters of carefully organized working area, and years of experience in the plastic thermoforming industrial, shanghai BEYOND can offer professional solutions for a wide range of the thermoforming products. As a professional manufacturer of plastic thermoforming products, shanghai BEYOND provides innovative, value-added products with the highest standards of quality and service.

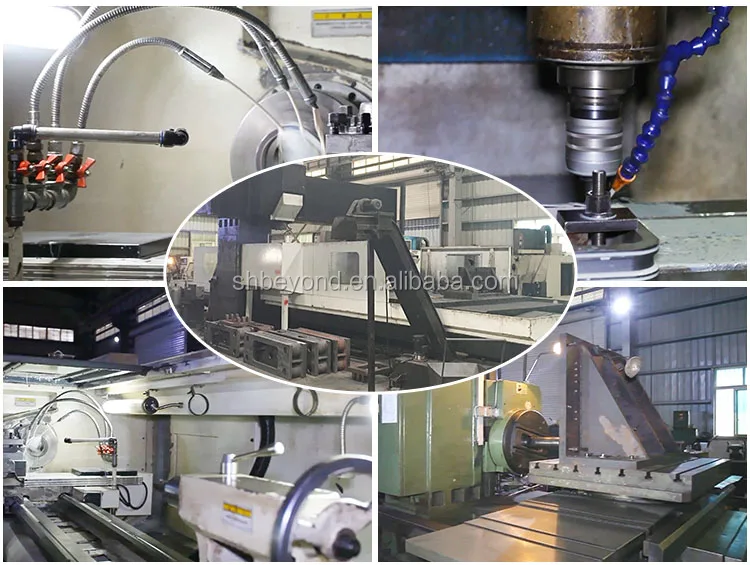

Workshop Show

Sample Room

Package & Shipping

FAQ

1. How I can install & run the machine?
We have the instruction video, English version manual and will be shipped together with the machine. Meanwhile, we also support the engineer services to your plant.

2. What is warranty of the machine?
Warranty is one year, and maintenance is lifelong. The worn-out parts will be sent according to the customer's condition. While Guarantee is not valid if the machine is used in wrong way or it is not serviced as shown in our technical handbook.

3. Can I get spare parts?
Yes, sure you can. We will enclose some quick wear parts with the machine when you place an order from us.

4. How to order raw material?
We have many raw material cooperative partners, and we can purchase for you. Just inform us the material requirements.

5. How can I visit your company?
We are located in Qingpu District, Shanghai, China. Generally we could provide you the pick-up services once you decide to visit us. So once you decide to come, just let us know.

Mobile: +86 17317221160

E-mail: shana(at)bbs-plastic.com

Tel/Fax: +86-21-61116233

Website: www.jd-beyond.com
