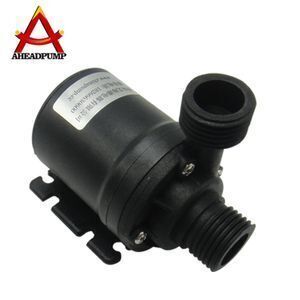

10 watt Micro small dc 24v 12 volt high pressure booster hot water submersible pump fountain

Product details
application:water heating mattress,fountain, medical,water circulating etc.;Warranty:1 Year;
Model Number:AW500S;Packaging Detail:one carton with 100 pcs, 440*360*240(mm), 22kg/carton. Bubble bag for each pump, strong package for long-distance transport.;
Horsepower:19W;Place of Origin:Shandong China;
Theory:Centrifugal Pump;Certification:RoHS,ce;
Selling Units:Single item;Brand Name:OEM;
Single package size:10X10X10 cm;working temperature:0~60℃;
Pressure:High Pressure,5M;Package Preview:;
Head(Lift):2m,3m,5m;Cable Length:50cm in normal and can be customsize every length;
Customized support:OEM,ODM,OBM;Power:19W;
Power Source:Electric;Dimension(mm):76*49**62 mm;
Single gross weight:0.4 KG;Standard or Nonstandard:Standard;
Weight:around 200 g;Application:Drinking water treatment,Family Homes,Washing and Cleaning,Water Distribution;
Outlet Size:G1/2 Thread;Voltage:DC12v,DC24V,DC12V DC24V DC6V;
Flow:800L/h;Structure:Single-stage Pump,Centrifugal Pump;
Related Products







Products drawings
Product Description

Product Application:

1.manufacturer 12v dc motor 5m new solar powered water pump.
2.Used in aquarium fish fountain, bathroom shower, garden fountain.
3.Max flow:700L/H 800L/H,head:5~6m
4.Less than 35dB
5.OEM

manufacturer 12v dc motor 5m new solar powered water pump
Our products are widely used in the shower, solar pumping systems, aquarium pumps, submersible pumps, medical equipment and other products.
Model
AW500-S
Material
engineering plastic
Water temperature
0~60℃ hot heat water pump / cooler water pump
Voltage( up to customers)
DC 12V/ DC 24V
Flow channel characterristic
one side in,one side out
Current(A)±15%
920mA
Power(W)±15%
19W / 38W
Flow(L/H)±15%
720L/H / 800L/H / 850L/H
Lift(m)
3M / 4M / 5M / 6M
Suction caliber(mm)
17 mm
Output caliber(mm)
10 mm
Noise(dB)
≤35 dB
Dimension(mm)
80*77*49 mm
Weight(g)
240 g
Life(times)
one carton with 50 pcs, 400*345*185(mm),11kg/carton. Bubble bag for each pump, strong package for long-distance transport.
Package
brushless water pump, high quality,long life,small dimension,high pressure,quiet,big flow,easy installation, price competitive.
Our Company

OUR COMPANY

Qingdao Ahead Electric Co., Ltd. was established in 2012,we focus on mini electromagnetic pump, diaphragm pump, water pump, vacuum pump, inflatable pump and mini solenoid valve and other precision fluid control products,Our products mainly used for Electronic sphygmomanometer, monitor, coffee machine, breast pump, massage machine, diffuser machine, bathroom, analyzer, water dispenser, electric tea pot, air cleaner, electric car, car, truck, engine, solar water heater system, fountain, aquarium, recirculating water and air conditioning, computer cooling, water-cooled appliances, appliance cleaning and other precision fluid control products.We provide professional solutions of pump and valve for medical equipment, massage equipment, beauty equipment, household appliances, automotive electronics, automation equipment and other fields.
Our products passed the CE, RoHS certification, also offer UL and food-grade standard products.
Our products are exported to Europe, the United States, Australia and South Korea, Japan and Hong Kong and other Southeast Asian regions,also have long-term cooperation customers in more than thirty cities in China such as Shanghai, Beijing, Guangzhou, Shenzhen, Wuhan, Hangzhou etc.
Our company insisted on enhance our core competitiveness via honest character,establish a good social image while in the development. "Travel begins at the beginning,the pursuit is endless"
All employees of Qingdao Ahead Electric Co., Ltd will serve each customer with huge enthusiasm, strive to creat greater brand added value for customers.Welcome your visit, guidance and business negotiation.

Packing & Delivery
Packaging
Size
400 * 350 *190(mm)
Weight
13kg



Packaging Details
manufacturer 12v dc motor 5m new solar powered water pump

Ordinary carton packaging, 50pcs in one carton.

The box size is 400 * 350 *190(mm).
weight is 13kg.
Our Service

Shipment Service

* Inquiry and consulting support.
* Sample testing support.
* It supports a variety of Express.

Technical Service

* supply OEM service.
* design service.

* buyer label offered.

FAQ

1.Q:Where is your company located?
   A: Our factory is located in Qingdao City, Shandong Province, China.
2.Q: What is the product structure?
   A: It's a mini DC centrifugal brushless water pump.
3.Q:Is it a submersible pump?
   A:Yes,it is a submersible pump,but it can also used on the ground.
       Customer just need to keep there is water in the pump.
4.Q:Is your pump resistant to corrosion?
   A:It's ok for 6-8 PH,if you need special requirement,please connect us.
5.Q:What's the max temperature for this pump?
   A: The max temperature is 60 degree.
6.Q:What are the precautions?
   A:Forbidden to work without water and reverse positive and negative.
      Don't allow to pump sewage and other magnetic liquid
      Please connect the customer server if you want to use fluctuating voltage.
7.Q: Could the wire be customized?
   A: The standard length of wire is 50CM, we can make 1M,1.5M,2M wire with connector as            customer requirement.
8.Q:What's kind of shipping methods for shipment?
   A:We are big customer of Fedex,we usually ship samples via it.
       We can ship production as customer requirement such as Fedex, by sea or shipping                agent.
9.Q:What's package of the product?
   A: Individually white box packaged, 50pcs/carton, the carton size is 44*36*20cm.
       If you need OEM package,please contact the customer server.
10.Q:How to get the free samples?
   A: Please supply your company name and web to our customer server to arrange.
       If you pay us the sample fee,we will return to you after mass production.
11.Q:What's the certification your product have?
    A:Our products have CE, RoHS certification, also offer UL and food-grade standard                     products.
