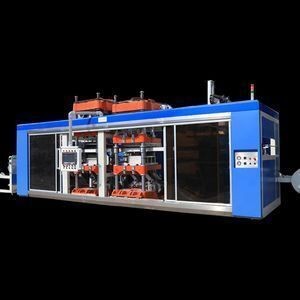

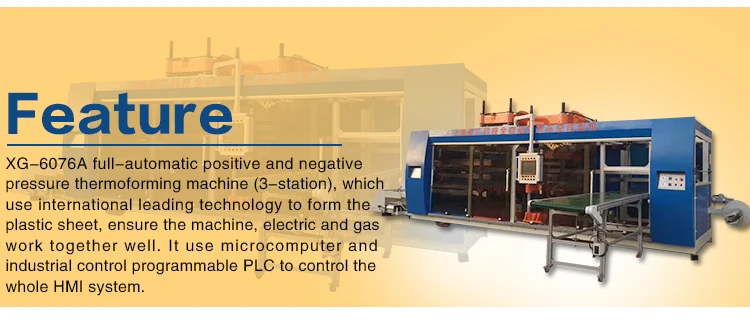

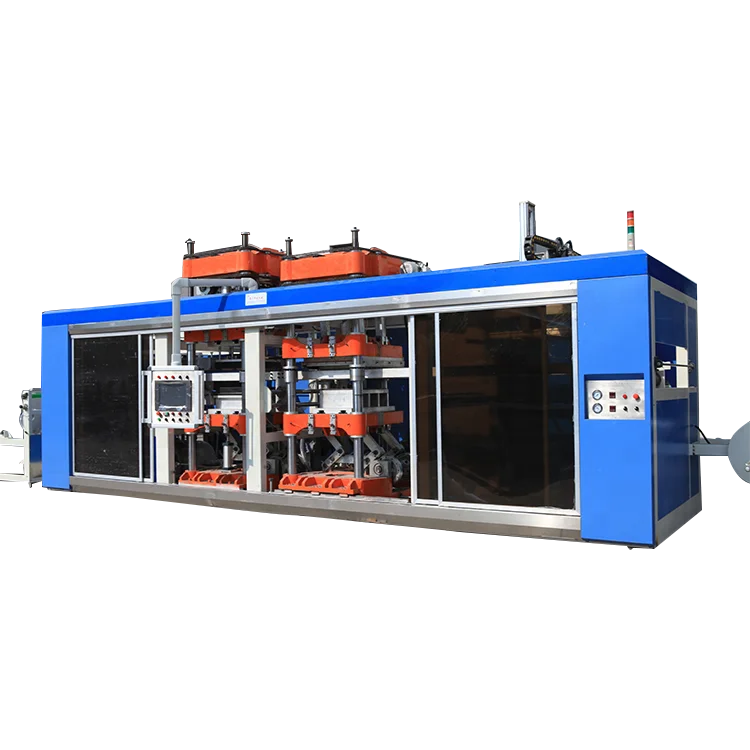

Full-Automatic Positive And Negative 3-Station Thermoforming Machine
-
Supplier: Shanghai Xiangguang Technology Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Michael Chu -
Price: $144000.00 /set -
Min. Order: 1 set
Product details
| Port: | Shanghai; | Place of Origin: | Shanghai China (Mainland); |
| Certification: | CE,ISO9001; | Blowing Heating Power: | ≤60 kw; |
| Max Forming Area: | 600*750mm; | Weight: | 16.5T; |
| Supply Ability: | 3 Set/Sets per Quarter Positive And Negative 3-Station Thermoforming Machine; | Air Pressure: | 0.6~0.8Mpa; |
| Product Type: | Plastic boxes, plates, trays, bowls, lids; | Max Sheet Diameter: | 800mm(500kg); |
| Payment Terms: | L/C,T/T; | After-sales Service Provided: | Field maintenance and repair service; |
| Dimension(L*W*H): | 10500x2100x3000mm; | Production Speed: | ≤30cycles/min; |
| Processing Type: | Plastic Thermoforming Machine; | Voltage: | 380V 50HZ; |

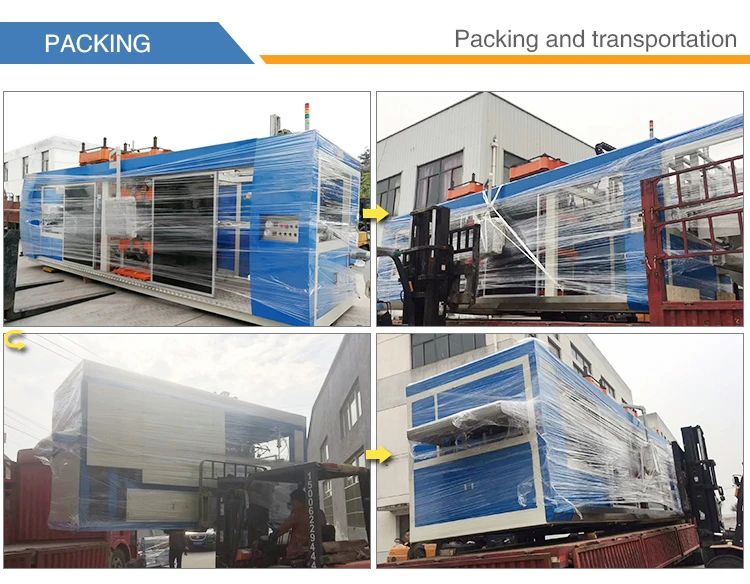

| Max Cutting Force: | 100T; | Packaging Detail: | Stretch film packaging, not charging, not recovery.; |
| Sheet Thickness Range: | 0.2-2mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Power(W): | 150kw; | Brand Name: | XIANGGUANG; |
| Max Sheet Width: | 800mm; | Condition: | New; |
| Max Forming Depth: | 150mm; | Warranty: | 1 year; |
Product Description

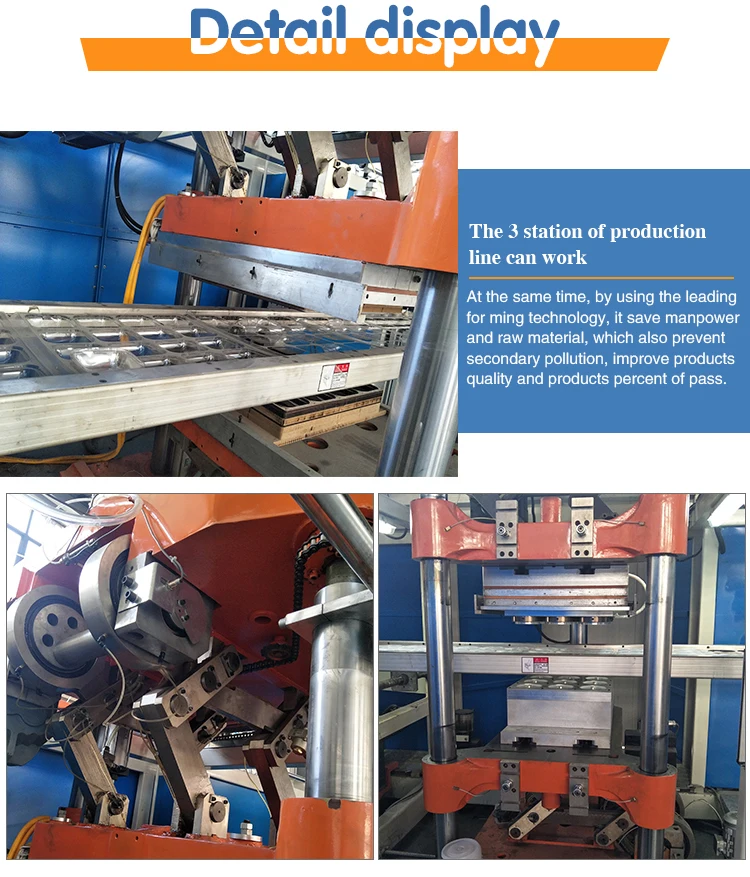

| Item | Full-Automatic Positive And Negative 3-Station Thermoforming Machine |
| Max Forming Area | 600mm × 750mm |
| Max Forming Depth | 150mm(But sometimes the shape fo the finished product is limited) |
| Sheet Thickness Range | 0.2-2mm |
| Max Sheet Width | 800mm |
| Max Roll Diameter of the sheet | 800mm(500kg) |
| Max Cutting Force | 100T |
| Air supply from client | Air pressure: 0.6~0.8Mpa Air amount:≥5.5m³/min |
| Blowing Heating Power | ≤60 kw |
| Work efficiency(Empty running) | ≤30 cycles/min |
| Power Supply | 3×380V + N + PE, 50Hz |
| Total Power Of the machine | 150KW(Normal working:30-60KW) |
| Total weight of the machine | 16.5T(Without moulds, for reference) |
| Dimension of the machine(L×W×H) | 10500mm×2100mm×3000mm(For reference) |

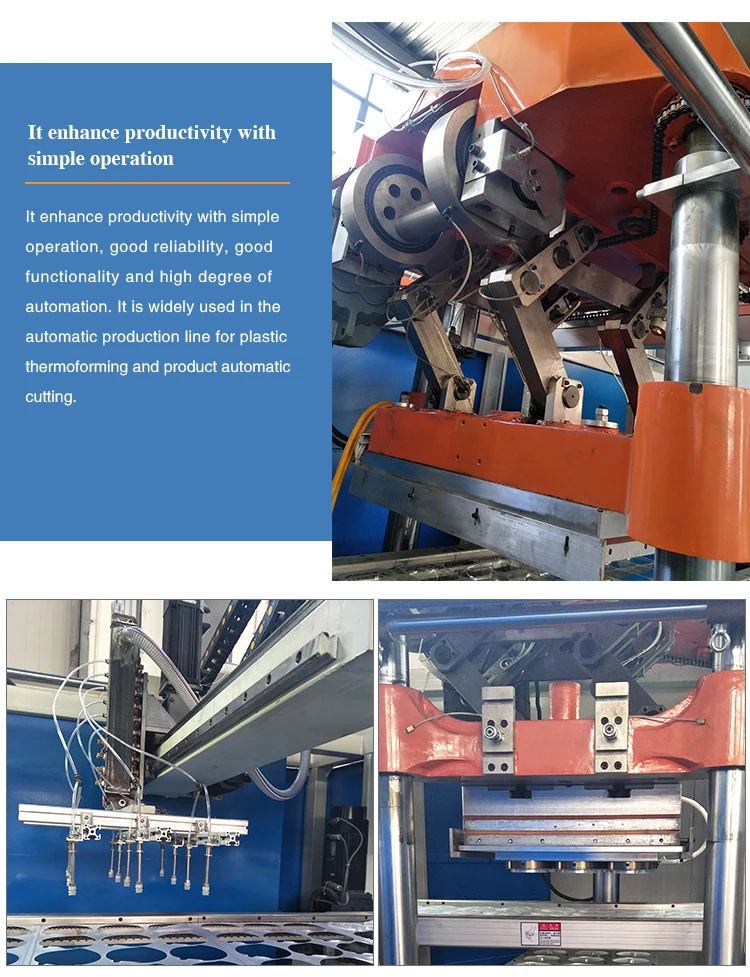

| Advantages | 1) Save manpower and raw material a lot 2) Prevent secondary pollution 3) Improve products quality and percent of pass 4) Enhance productivity with simple operation 5) Good reliability, good functionality and high degree of automation |

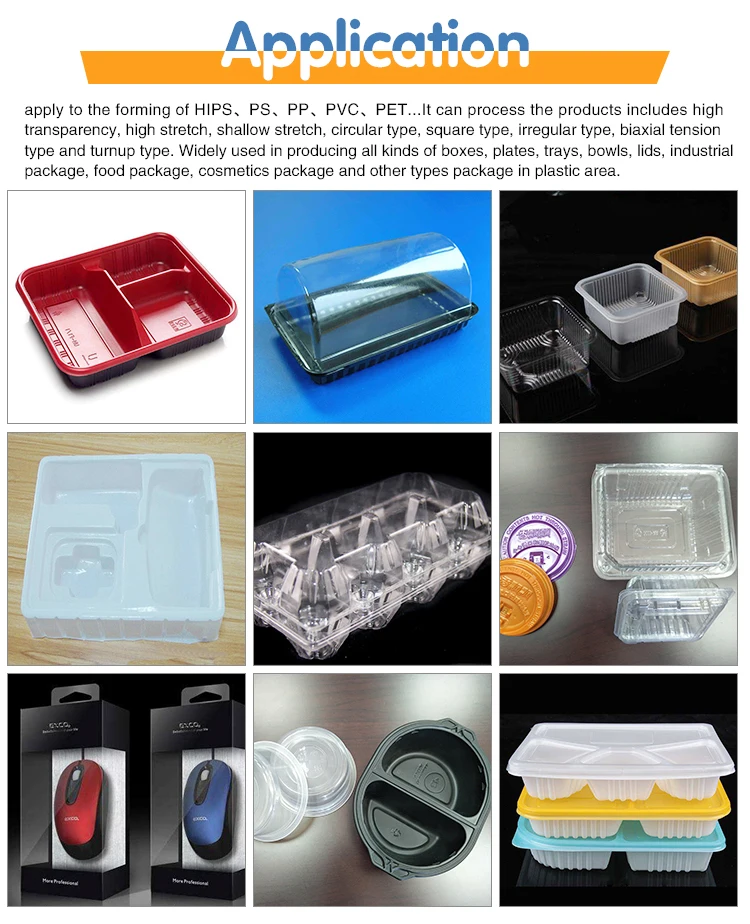

| Applications | Applicable to forming plastic sheet of HIPS, PS, PP, PVC, etc. It can process the products with high transparency, high stretch, shallow stretch, circular type, square type, irregular type, biaxial tension type and turnup type. It is widely used in producing all kinds of boxes, plates, trays, bowls, lids, industrial package, food package, cometics package and other types package in plastic area. |
