AC Recovery recharge machine HO - L500

Product details
Video outgoing-inspection:Provided;Local Service Location:Russia;
Charge speed:800g/min;Showroom Location:Russia;
Vapor recovery speed:300g/min;Machinery Test Report:Not Available;
Package Preview:;Certification:ce,FCC;
Warranty:1 Year;Application refrigerant:R134a;
Dimension:59*54*124cm;Core Components:Motor,Pump;
New/old oil bottle capacity:250ml;Type:Refrigerant service;
Applicable Industries:AC Recovery recharge machine;After Warranty Service:Video technical support;
Condition:New;Liquid recovery speed:200g/min;
Marketing Type:New Product 2019;Max work pressure:17.5bar;
After-sales Service Provided:No overseas service provided,Video technical support;Single package size:69X64X119 cm;
Packaging Detail:the box packing Dimension:69 x65 x120 CM Net weight: 80kgs;HS code:8479899990;
Warranty of core components:1 Year;Selling Units:Single item;
Single gross weight:75.0 KG;Brand Name:HONOW;
Vacuum speed:3600L/Hour;Place of Origin:Guangdong China;
1-wellcome



2.2-product details

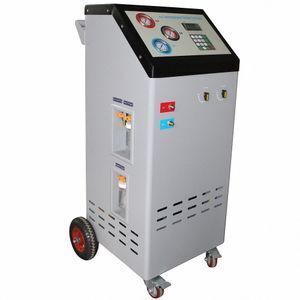

AC Recovery recharge machine HO - L500



This is a refrigerant recoverying/recycling/recharging equipment design for R134a A/C system. The unit mainly used in automobile service stations,automobile production line ect.

It is easy to connect the quick connectors of high/low pressure refrigerant to the automobile air-conditioner system.One can perform pipeline cleaning and all repairs without pipe removing and replacing.
It is efficient, time saving and labor saving.

Main Features:

1. It can reclaim and recycle, hunt leakage, vacuum, charge refrigerant, and supply refrigerant oil.

2. Specific interface for small container of coolant supply.

3. Large-screen menu in both of the Chinese and English language, and intelligent operator interface.

4. Simple pipeline connection. Operation starts once the hose of the machine is connected to the interface of the air conditioner yet to be tested.

5. High-precision electronic scale weighs the refrigerant filling and reclaiming.

6. Its purification & filtration system efficiently ensures recovery of used refrigerant.

7. It employs high-duty vacuum pump.

8. It adopts unique automatic protection design to prevent liquid attack and ultra-high pressure explosion.

9. Main components are originally imported to guarantee excellent performance.







2.3-Product paramete



Model HO-L500
Certification CE

Application refrigerant

R134a

Operation

Semi-automatic

Wheel

2

Leakage hunting

with

Cylinder capacity

13.6kgs

Vapor Recovery speed

300g/min
Charge speed 800g/min
Vacuum speed 3600L/Hour
Liquid Recovery Speed 200g/min
Max refrigerant weight in gas cylinder 10kg
Load cell accuracy for gas cylinder ±10
New/old oil bottle capacity 250ml
Power supply AC 220V±10%,50/60Hz
Dimension 59*54*124CM
Gross Weight 70kgs
Displayer LCD

.....
