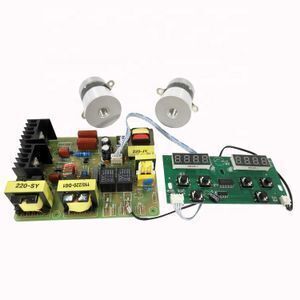

220V 40Khz 28KHZ 120W Superior Performance Ultrasonic PCB Generator for Cleaning Transducer

Product details
Keyword:Industrial Ultrasonic Generator;Power:50/60/100/120W Selective;
Place of Origin:Beijing China;Machinery Test Report:Provided;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;Marketing Type:Hot Product 2020;
Packaging Detail:Carton,plywood case or required package (220V 40Khz And 120W Superior Performance Ultrasonic PCB Generator);Over-voltage Protect:Yes;
Over-current Protect:Yes;Frequency:25Khz/28Khz/40Khz;
Showroom Location:United Kingdom,Germany,Spain;Product name:Ultrasonic Drive Transducer PCB Board;
Condition:New;Single package size:25X15X8 cm;
After Warranty Service:Video technical support,Spare parts;Warranty:1.5 years;
Frequency Sweep:Yes;Local Service Location:Viet Nam,India,Russia;
Single gross weight:0.6 KG;Over-tenperature Protect:Yes;
Application:Ultrasonic Cleaning Equipment;Voltage:110V or 220V;
Selling Units:Single item;Brand Name:QXULTRASONIC;
Video outgoing-inspection:Provided;

220V 40Khz 28KHZ 120W Superior Performance Ultrasonic PCB Generator for Cleaning Transducer



Product Description

 Berif Description of Ultrasonic Driver Circuit



  • Frequency:28khz,40khz
  • Power: under 120w
  • Voltage : AC 110 v (15 ~ + 10 %), 50 hz
  • Working Temperature: – 10 ℃ to 40 ℃
  • Working Humidity: 35 ~ 85 %

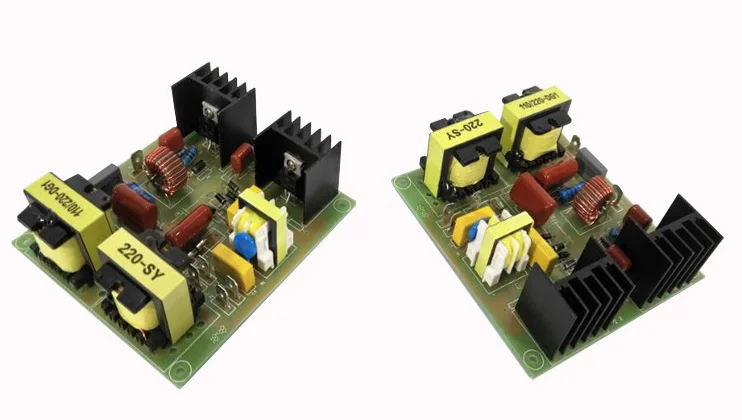

Features of Ultrasonic Driver Circuit



  • PCB: double-sided with two ounces.
  • Stable working performance
  • Large radiator


Application of Ultrasonic Driver Circuit:

The pcb generator is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on.

Cleaning products such as belows:

Electronic products,laboratory supplies,office supplies,household goods,computer motherboards and accessories,glassware,circuit boards, auto parts, hardware parts, medical apparatus and instruments, false tooth and dental equipment,clocks and watches,glasses,jewelry,golf ,coins,badge,tableware,baby bottles,fruit and so on.


The Specifiction of Small Ultrasonic Driver Circuit

TypeFrequency



Power



QXCGPB5025khz. 28khz. 40khz50w
QXCGPB6025khz. 28khz. 40khz60w
QXCGPB10025khz. 28khz. 40khz100w
QXCGPB12025khz. 28khz. 40khz120w

 If you are interested in our product,

Pls just feel free to send us your inquiry.

We wil try our best to quote the competitive price for you!----- Contact Us Now

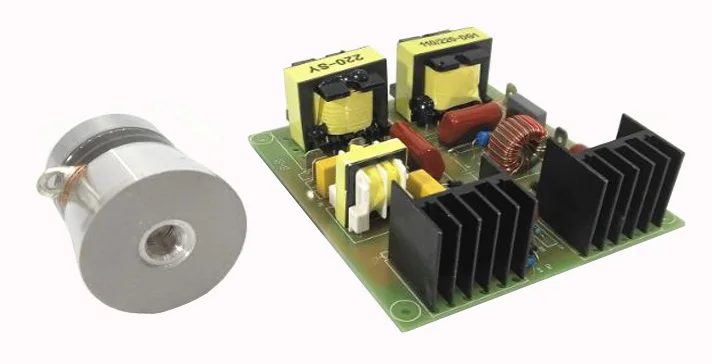

Bonding Transducer



Some Common Technical Problem of Ultrasonic Generator



The ultrasonic generator can't power on under no-load condition
After installed, we can not power on until lay cleaning fluid
Ultrasonic transducer has two lugs.The positive one lay in the middle of two pieces of ceramic.The native one near lower metal column. Please do not make wrong when wiring.
The larger side with screw hole in ceramic transducer which has a function of vibration,can be stuck in the bottom of cleaning machine. And please make sure the cleaning machine is safely grounding
The ceramic transducer should be pasted in the bottom of cleaning machine using transducer specialized glue or use AB glue stick. but the effect is a bit poor, or use epoxy resin with proportion of 10:4.
The working circuit board voltage is 600V.The voltage output to the transducer is 1100 v.Please ensure the cleaning machine is safely grounding. Please make sure leakage protect switch assembled on the power supply in order to ensure safety.



Get More Free Technical Informations How to Build High Quality Ultrasonic Cleaner.

Pls Contact Us Now

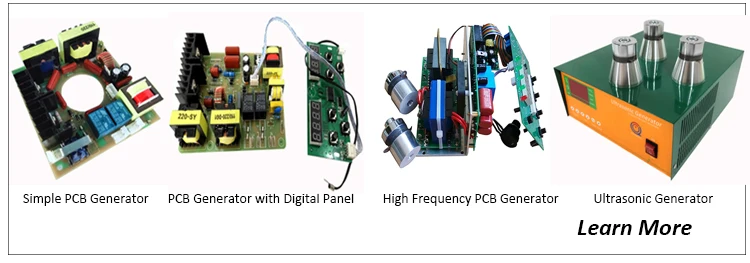

Related Ultrasonic Generator





You May Also Need Ultrasonic Transducer to Match with Ultrasonic Generator



Our Services

Company Information



FAQ



  Q   When can we get the reply?

  A   Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.



  Q   What about minimum order quantity

  A   We have no limit for MOQ,so you can even buy only 1 piece. Welcome to buy sample to test firstly.



  Q   Can customize,modify and develop products according to the design drawing?

  A   Yes,we provide OEM service and can customize products according to the drawing.



  Q   What about delivery time?

  A   Sample, We will send to you within 7 days after payment. Production for big quantity needs more days.



  Q   What about terms of payment?

  A   Payment terms: T/T, west Union Paypal etc.



  Q   How you will send the goods to us?

  A   We will send the goods to you by DHL, FEDEX, UPS, EMS, AIR etc.



  Q   How can you guarantee the production quality ?

  A   Our production quality follow CQC, CE and RoHs, We have more 10 years experience of QC team. We have strictly quality control system in our production process. And 4 times inspection for each finished product before package. Third part inspection acceptable.
