Port: | Guanghzou; | Hydraulic pressure: | 2500kn; |
Payment Terms: | L/C,T/T,Western Union; | Chamber size: | 2000x1600x950mm; |
Supply Ability: | 20 Set/Sets per Month Hydraulic Scrap Metal Baler; | Bale size: | 500x500mm; |
Applicable Industries: | Scrap Metal Baler; | Warranty: | 2 years,1 Years; |
Condition: | New; | Power (kW): | 15; |
Motor: | 44kw; | Brand Name: | Keshang; |

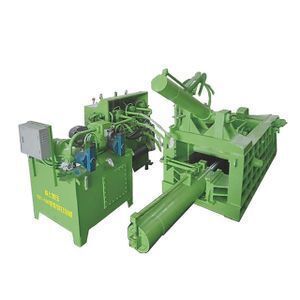

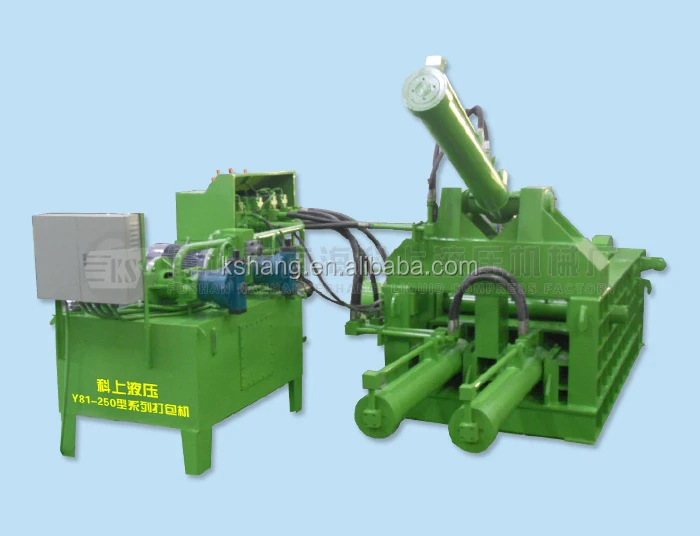

Product name: | Y81-250 New Product Low Energy Hydraulic Scrap Metal Baler; | Application: | waste steel, iron. aluminum, copper; |
Place of Origin: | Guangdong China; | After-sales Service Provided: | Free spare parts,Video technical support,Engineers available to service machinery overseas; |
Key Selling Points: | Automatic; | Model Number: | Y81-250; |
Tye of bale out: | turn bag; | Packaging Detail: | host nude packing, parts can be in wooden cases,depending on customer's requirement; |
Weight (KG): | 4000; | Operation: | Automatic/Remote control/PLC control; |
Foshan Keshang Hydraulic Machinery Factory
Application:

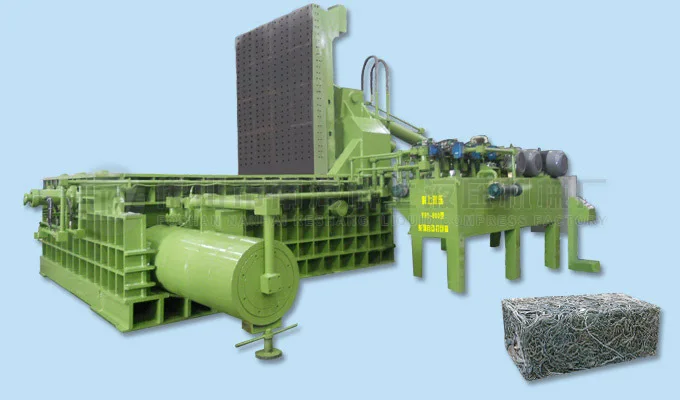

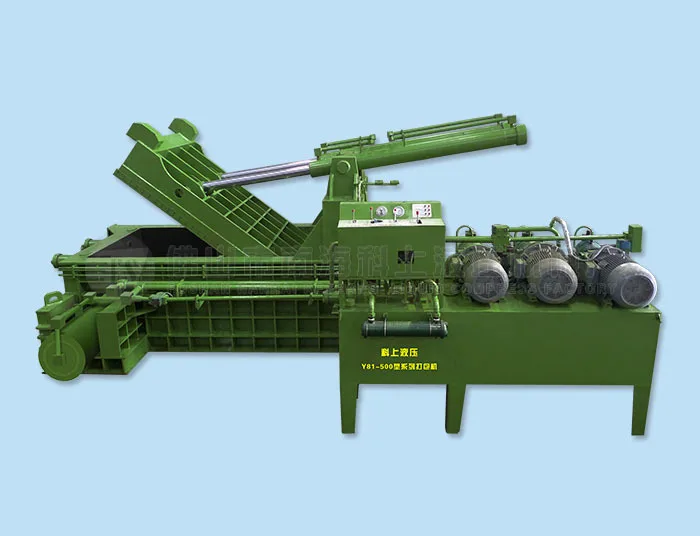

Y81 series of hydraulic metal baler are mainly used in recycling companies, steel plants, ferrous & non-ferrous smelting industry to press the metal scraps(iron,steel, copper, aluminium, discarder sutomoblils) into acceptable fumace charges or shapes(cuboid, cylinder or octagon), convenient for storing, and can reduce the cost of transportation and smelting, increase speed of fumace charging.
Features:
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2) Uses the slow fast start form, When commutation is steady,Divergence,Reduced system impact
3)The structure is durable, no footing bolts needed in installation; diesel engine can be equipped or generator for power.
4) Baling force 10 grades from 130 to 1000 tons; productivity from 12 to 150 tons per shift(8 hours)
5)Easily operation, high effeciency, and less power comsumption
6) Bale-discharging: turn bag or push bag or using forklift to make the bale out.
Technical parameters:
No. | Spare parts name | Unit | Item No. (Dates) | ||
Y81-250 | |||||
1 | Nominal pressure | Main cylinder | KN | 2500 | 2500 |
Side cylinder | KN | 1250X2 | 1250X2 | ||
2 | Max hydraulic pressure | MPA | 31.5 | 31.5 | |
3 | Chamber size | Length | MM | 2000 | 2000(1800) |
Width | MM | 1600 | 1400(1400) | ||
Height | MM | 950 | 900 | ||
4 | bale size | Length | MM | 800-1200 | 560-1200 |
Width | MM | 500(450) | 500(450) | ||
Height | MM | 500(450) | 500(450) | ||
5 | bale density | kg/m³ | ≥2200 | ≥2200 | |
6 | Single cyle time | S | about 90 | about 85 | |
7 | Motor power | KW | 22x2 | 22x2 | |
8 | Oil pump | YCY | 160x2 | 160x2 | |
9 | Outside dimension | Length | MM | 6000 | 6000 |
Width | MM | 4000 | 4000 | ||
Height | MM | 3000 | 3000 | ||
10 | Total Weight | T | about 23 |
about 21 |

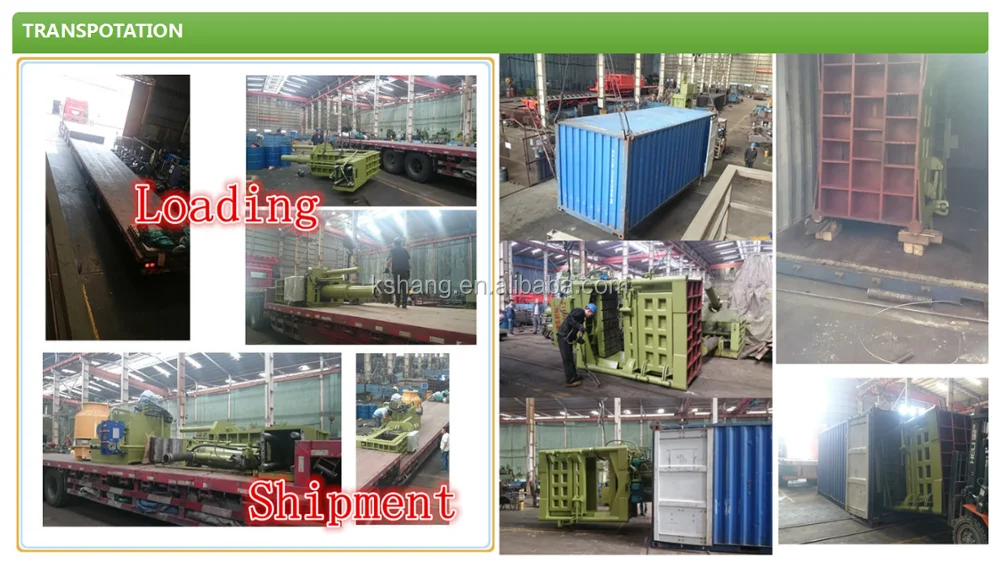

Packaging: host nude packing, parts can be in wooden cases, or as your requirement. Shipping:usually 20-30 days after your deposit payment, more exactly time pls contact us.
We not only offer the good quality products, but also the best after-sale service, we deeply know how important the after-sale service for the machine. we have a very good reputation in our domestic market, and it is them to introduce the new clients to us, including the clients from Japan, Sigapore, Indunisia, Hongkong, Taiwan, we are looking forward to cooperate with the clients all over the world.
1. Powerful ----

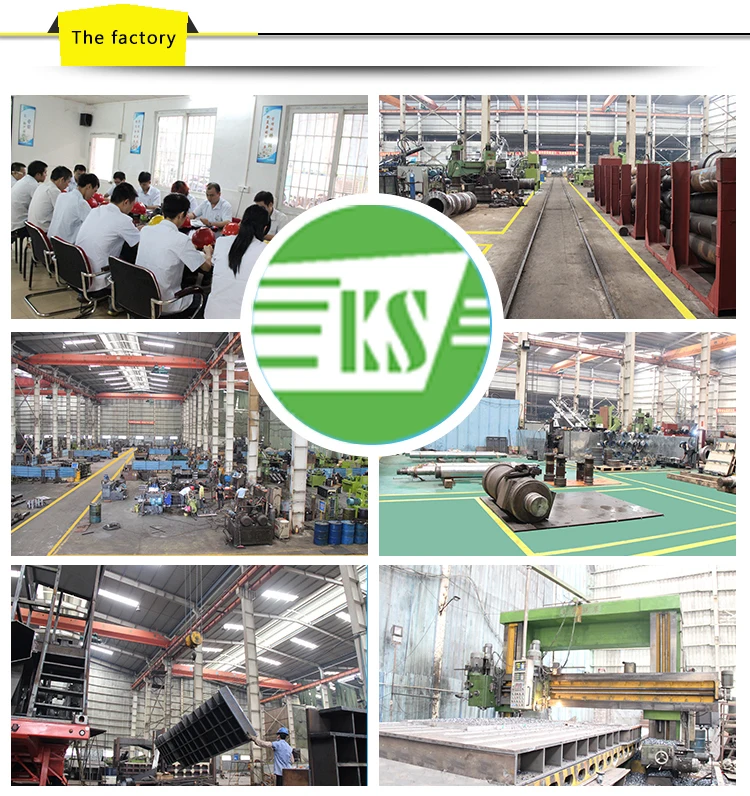

As a big factory, we have been producing hydraulic baling machines for almost 26 years with rich experience.
2. Best Service ----
Our strong technical and after-sale service team are ready for you all the time.
3. Safe & High Quality ----
We use good quality of raw material(Q345 steel, while others use A3 steel). So the machines are solid. So our machines are more heavier and stable than others’.
4. Good Reputation ----
Most of new clients are introduced by our old clients.Thus it can be seen that our quality is reliable and we have good reputation in this industry.
5. Keep Moving----
We keep paying attention to producing, learning ,designing hydraulic machines. We are going to be better and better !
We have a very good reputation in our domestic and overseas markets, and it is them to introduce the new clients to us, including the clients from Japan, Sigapore, Indunisia, Hongkong, Taiwan, we are looking forward to cooperating with you in the near future.
