Factory price charcoal briquette press automatic plant 1TPH biomass briquette machines

Supplier: Anyang Best Complete Machinery Engineering Co., Ltd.
Region: Henan, China
Contact: Ms Crystal Qin
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Product name:	Charcoal Briquette Making Machine;
Type:	Machine-Made Charcoal;	Density of briquettes:	1.3 g/cm3;
Certification:	ISO 9001;	Voltage:	380v/400v/415v;
Keyword:	Sawdust Biomass Briquette Making Machine;	Application:	Briquette Making Machine;
Machinery Test Report:	Provided;	Raw Material:	Biomass Waste;
Key Selling Points:	Automatic;	Packaging Detail:	All your small farm flour machine making wheat flourry are packed as your requirement and will be delivery safely to you.;
Applicable Industries:	Manufacturing Plant;	Shape:	Cylinder;
Supply Ability:	10 Set/Sets per Month;	Brand Name:	ABC Machinery;
Capacity:	1-2t/h;	Video outgoing-inspection:	Provided;
Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Russia,Spain,Thailand,Malaysia,Australia,Kenya,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;	Warranty of core components:	1 Year;
Features:	Screw Press;	Item:	Wood Sawdust Biomass Briquetting Machine;
Name:	biomass briquette machines;	Payment Terms:	L/C,Western Union,T/T,MoneyGram;
Usage:	Making Bbq Charcoal Briquette;	Marketing Type:	New Product 2020;
Showroom Location:	Turkey,United States,Viet Nam,Philippines,Peru,Indonesia,Pakistan,India,Russia,Thailand,South Korea,Chile,Sri Lanka,Romania,Bangladesh,Japan,Malaysia;	Port:	Shanghai, Qingdao, Tianjin;
Production Capacity:	93-99%;	Warranty:	1 Year;
Core Components:	Bearing,Gearbox,Gear;	Place of Origin:	Henan China;

Factory price charcoal briquette press automatic plant 1TPH biomass briquette machines

Our client set up 1 ton per hour turn key biomass briquette plant at Ethiopia. The key equipment is GCBC serise charcoal briquetting machine. The charcoal briquetting press line running well now.

1T/H biomass briquette plant

The biomass briquette plant is an eco friendly technology to convert diverse residues like forestry, industrial and agriculture waste into solid blocks of bio-fuel. Cylindrical shaped briquettes are made with high mechanical pressure using binder less technology. Hence no need for any binder or chemical.

Bio-briquettes are substitute to non renewable fossil fuels and can be used in several manufacturing industries like kilns, furnaces and boilers. Ecological bio-briquettes are pollution free and also contribute to greener surroundings which save worthy foreign exchange. The motto behind bio-briquettes is Wealth from Waste. The biomass briquette plant converts agriculture residues into solid bio-fuel. For farmers to earn money from waste, charcoal briquetting machine is the promising substitute for green energy production.

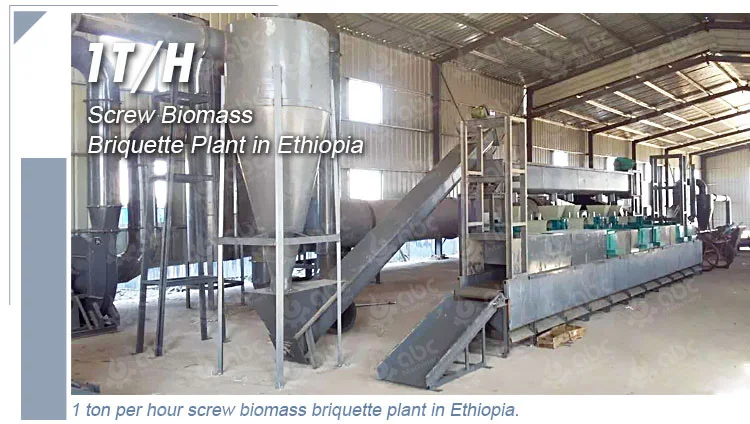

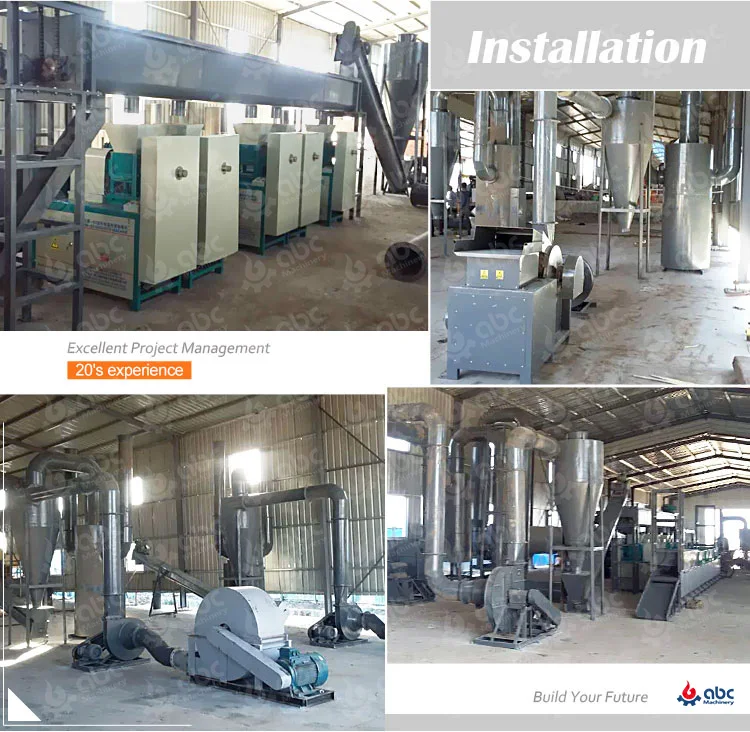

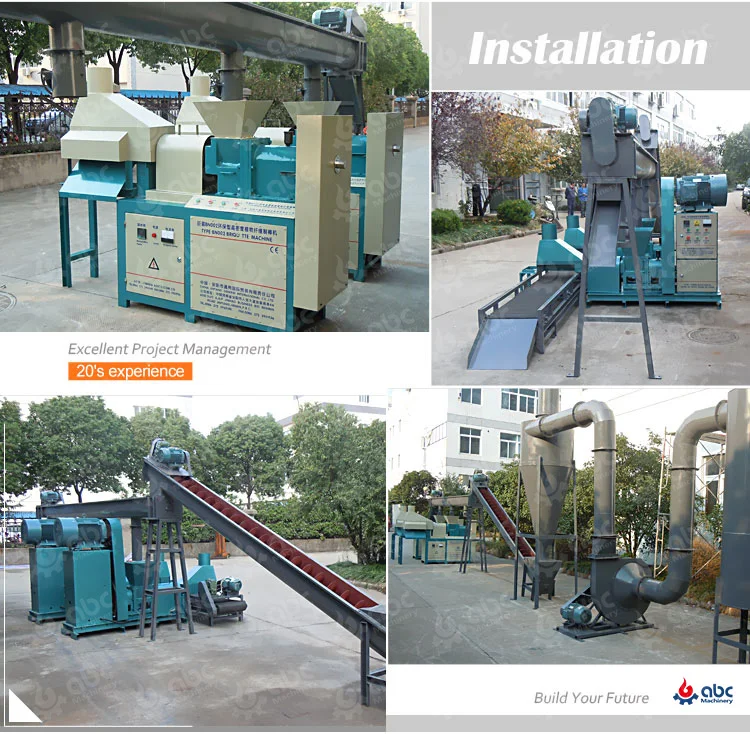

Installation site of the biomass briquette plant

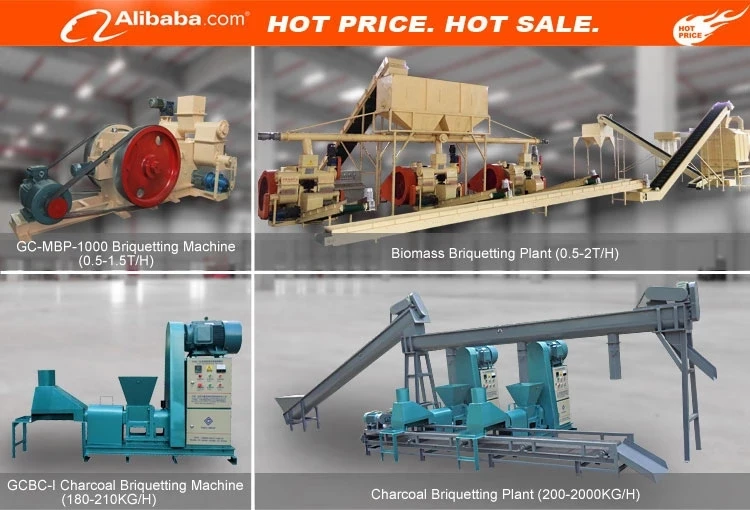

Key machine of 1t/h biomass briquette plant

Screw extruder charcoal briquetting machine is one type of charcoal briquetting press, it can be also called charcoal extruder briquette machine.The composed parts of screw extruder charcoal briquetting machine are heating section, forming hopper, lubricating system and auto cutting system. We all know that biomass briquettes are formed under high temperature and pressure, the lignin in the wood plays the part of binders, it will be softened under high temperature and bind the raw materials together shaping briquettes.

Main parameter of the charcoal briquetting machine

Model	GCBC-I	GCBC-II
Output capacity kg/h	180-210	300-350
Motor Power (kw)	15kw	18.5kw, 360v, 6 grades
Electric heater (kw)	2.2*2kw	2.2×2kw
Heating Range	280~350℃	280~350℃
Life of the inner former	1-2years	1-2years
Size of briquettes	Dia.50mm*L.480mm	Dia.60/50mm*L.500mm
Size of inside hole	Dia.16mm	Dia.16mm
Density of briquettes	1.3 g/cm3	1.3g/cm³
Weight(kg)	700kg	1000kg
Overall dimension(mm)	27006001600	20006001700
Raw material moisture requirements	8~10%	8~10%

How to start a small biomass briquette plant ?

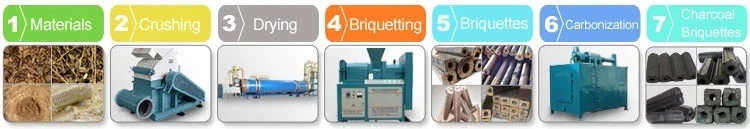

A complete biomass briquette plant or briquetting process can be divided into: crushing, drying, mixing, delivery, briquetting, cooling, testing and packaging.

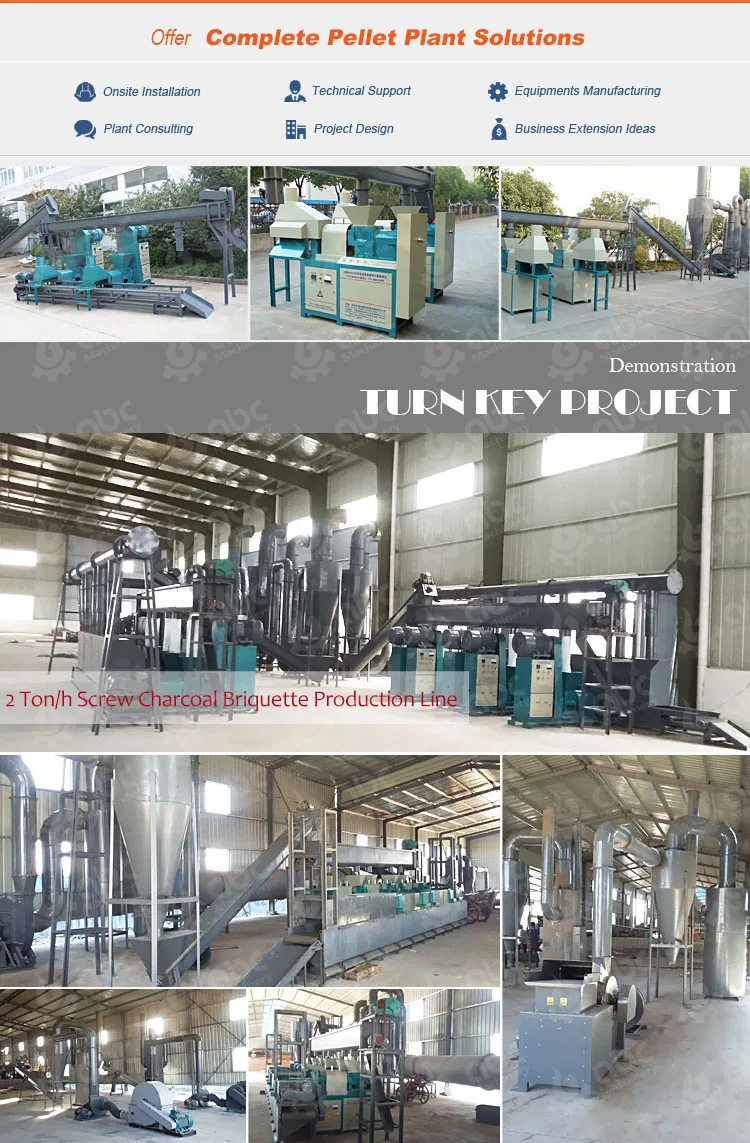

The biomass briquette plant projects

Materials of charcoal briquetting machine

The briquetting raw materials may vary as to different customers, so it is necessary to ensure that your materials can be briquetted before buying one briquette press machine. Feel free to tell us your materials for briquetting and then we can offer tailor-made solutions based on your specific materials and situation. We supply a series of briquetting press with different output and price.

During the manufacturing process, this screw briquette press is designed to accommodate various different biomass materials. Actually, it can handle most kinds of biomass materials, such as bark, cardboard, cellulose, cotton stalk, hay, paper, tobacco, wood chips, wood dust (saw dust).

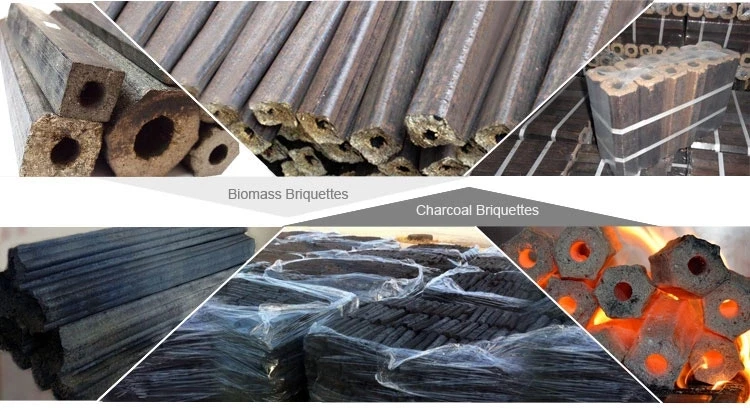

The shape of charcoal briquetting machine can be made

Biomass wood sawdust charcoal briquetting press machine can produce many types of charcoal briquettes like quadrangular and hexagon briquettes with the diameters of 40mm, 50mm, 60mm, 70mm, etc. those briquettes have a same character, that is there is a hole in the middle of the briquettes to improve the carbonization. These charcoal briquettes with different diameters give various choices for the users, so it is very popular in the briquette machine market. The clients can produce different products according to their own requirements.
