After-sales Service Provided: | Free spare parts,Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support; | Brand Name: | KS; |
Showroom Location: | None; | The max depth of slot: | 314/370/416; |
Package Preview: | ; | Type: | Carton Printer Slotter; |
Marketing Type: | Hot Product 2019; | keywords: | corrugated carton printing machine; |
Condition: | New; | Max speed: | 40-60pcs/min , max speed design; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Core Components: | Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC; |
Machine colour: | Customized; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Key Selling Points: | Automatic; |
Max feeding width: | customzied; | Effective thickness: | 2-12mm; |
Machine type: | corrugated carton printing machine; | machine name: | box making machine; |
Warranty: | 1 Year; | Video outgoing-inspection: | Provided; |
Packaging Detail: | Machine corvered with plastic sheet m easily broken part packed in woden case Whatsapp/Wechat :0086 18131718002; | Local Service Location: | None; |
Supply Ability: | 30 Set/Sets per Month Manufacturing flexo printing corrugated carton box machine; | Diamater of roller: | 400mm/480mm/530mm; |
Port: | Tianjin; | Machinery Test Report: | Provided; |
Phase adjustment: | electrical; | Warranty of core components: | 1 Year; |

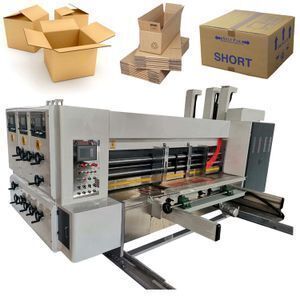

Shipping box making machine price small corrugated carton box printing machine - 100% guaranteed
Finished product pictures
Machine specification
Item | Unit | 2200 Model |
Machine size | mm | 4000*3000*3000(L*W*H) |
wall board size | mm | 2200 |
paperboard size | mm | 2000*900 |
min size | mm | 450*220 |
Print size | mm | 1800*950 |
Print plate thickness | mm | 3-8 |
Max speed | sheets/min | 180 |
Machine structure
Lead edge feeder part
(1) The outer diamter of the upper roller is φ100 mm (2) high-quality seamless steel, wrapped with wear-resistant rubber, and balance correction. (3) the lower roller φ124mm embossed hard chrome plated, and balance correction.
|
|
Printing part
(1), the outer diameter is φ292mm (including the outer diameter of the plate is φ300mm). (2), the surface of the steel pipe is ground and hard chrome plated. (3), do balance correction, and run smoothly. (4) Loading and unloading the printing plate, the electric control of the foot switch is reversed. 1-5 colour optional |
|
Slotter part (1) The shaft diameter is φ71 mm and the surface is ground. Hard chrome plated for smooth movement. (2)do balance correction, and run smoothly. (3) Manual adjustment of the pressure wheel gap dial, the adjustment range is 0---12mm. 2, slotted tool holder traverse adjustment mechanism |
|
Die cutter part - optional 1. The plate roll and pad roller are made of high quality steel, and the surface is polished and plated with hard chrome. Static and dynamic balance correction, good running stability. 2. Pneumatically controlled die gap and automatic detachment die cutter device to protect the rubber pad and prolong the service life of the rubber pad.
|
Machine pictures
Machine loading picture
