AC Voltage (V): | 6V/60V/600V/750V; | Measuring Current Range: | 6A/60A/600A; |
AC Current (A): | 6A/60A/600A; | Operating Temperature: | 0~40C; |
Weight: | 450g; | Measuring Resistance Range: | 60MΩ; |
Measuring Capacitance Range: | 60mF; | Packaging Detail: | standard packing; |
Measuring Voltage Range: | 6V/60V/600V/750V; | Dimensions: | 280mmx78mmx35mm; |
Port: | shenzhen port; | Supply Ability: | 10000 Piece/Pieces per Month; |
Place of Origin: | Guangdong China; | DC Voltage (V): | 600mV/6V/60V/600V/1000V; |
Brand Name: | UNI-T; | Payment Terms: | T/T; |
Display Type: | Analog and Digital; | Measuring Inductance Range: | NONE; |
Model Number: | UT216A; |

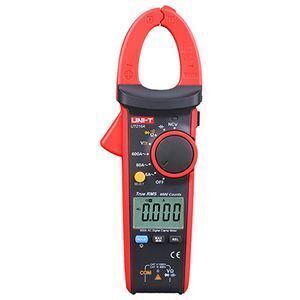

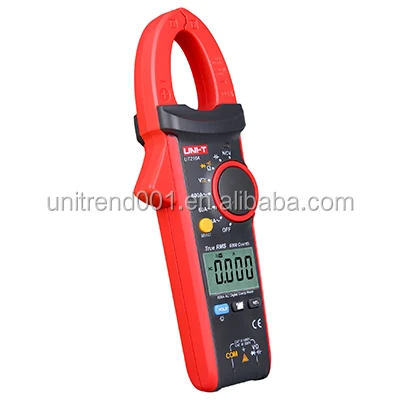

UNI-T’s UT216A is a 600A digital clamp meter with 6000 display count, auto range and Min/Max measurement function. It is safe and durable.
Specifications | Range | Best Accuracy |
Model | UT216A | |
AC Current (A) | 6A/60A/600A | ±(2.5%+5) |
AC Current Frequency (Hz) |
50Hz ~ 60Hz | |
AC Voltage (V) | 6V/60V/600V/750V | ±(1.2%+5) |
AC Current Frequency (Hz) | 40Hz ~400Hz | |
DC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.8%+1) |
Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1%+2) |
Capacitance (°F) |
99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/60mF | ±(4.0%+5) |
Features | ||
Display Count | 6000 | |
Auto Range | √ | |
Jaw Capacity | 30mm | |
Diode | Around 3.0V | √ |
VFC | √ | |
NCV | √ | |
Data Hold | √ | |
Relative Mode | √ | |
MAX/MIN | √ | |
LCD Backlight | √ | |
Flashlight | √ | |
Auto Power Off | Around 15 minutes | √ |
Low Battery Indication | ≤3.6V | √ |
Input Impedance for DCV |
≥10MΩ | √ |
General Characteristics | ||
Power | AAA 1.5V x 3 | |
LCD Size | 38mm x 24mm | |
Product Color | Red and grey | |
Product Net Weight | 280g | |
Product Size | 220mm x 75mm x 40mm | |
Standard Accessories | Batteries, Test Lead | |
Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
Standard Quantity Per Carton | 40pcs | |
Standard Carton Measurement | 485mm × 345mm × 385mm | |
Standard Carton Gross Weight | 19.8kg |
Specifications | Range | Best Accuracy | |
Model | UT216A | UT216B | |
AC Current (A) | 6A/60A/600A | ±(2.5%+5) | |
60A/600A (50~400Hz) | ±(2.5%+5) | ||
AC Voltage (V) | 6V/60V/600V/750V | ±(1.2%+5) | ±(1.2%+5) |
DC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.8%+1) | ±(0.8%+1) |
Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1%+2) | ±(1%+2) |
Capacitance (F) |
99.99nF/999.9nF/9.999μF/99.99μF /999.9μF/9.999mF/59.99mF |
±(4.0%+5) | ±(4.0%+5) |
Frequency (Hz) | 10Hz-1MHz | ±(0.1%+4) | |
Features | |||
Display Count | 6000 | 6000 | |
Auto Range | √ | √ | |
Jaw Capacity | 30mm | 30mm | |
True RMS | √ | √ | |
Diode | Around 3.0V | √ | √ |
V.F.C. | √ | ||
NCV | √ | √ | |
Data Hold | √ | √ | |
Relative Mode | √ | √ | |
MAX/MIN | √ | √ | |
LCD Backlight | √ | √ | |
Flashlight | √ | √ | |
Auto Power Off | Around 15 Minutes | √ | √ |
Continuity Buzzer | √ | √ | |
Low Battery Indication |
≤3.6V | √ | √ |
Input Protection | √ | √ | |
Input Impedance for DCV | ≥10MΩ | √ | √ |
General Characteristics | |||
Power | AAA 1.5V x 3 | ||
LCD Size | 38mm x 24mm | ||
Product Color | Red and grey | ||
Product Net Weight | UT216A - 280g UT216B - 231.7g | ||
Product Size | 220mm x 75mm x 40mm | ||
Standard Accessories | Batteries, Test Lead | ||
Standard Individual Packing | Gift Box, Carrying Bag, English Manual | ||
Standard Quantity Per Carton | 40pcs | ||
Standard Carton Measurement | 485mm × 320mm × 385mm (0.065 CBM Per Standard Carton) | ||
Standard Carton Gross Weight | UT216A-19.8kg UT216B-18kg |
