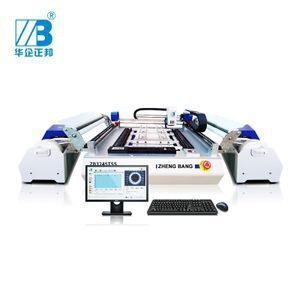

Electronic Components Making Automatic Pcb Benchtop Low Cost Desktop Mini Smt Pick And Place Machine

Supplier: Wenzhou Zhengbang Electronic Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Zhou
Price: $4050.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Packaging Detail:	plywood package;
Feeder location:	can put 54 pcs Feeder tray and 2pcs Vibration feeder;	Package Preview:	;
Model Number:	ZB3245TSS;	Single package size:	128X98X60 cm;
Feeder:	machine comes with;	Operation panel:	19 inch display;
Brand Name:	HUAQIZHENGBANG;	Marketing Type:	Hot Product 2019;
Visual camera:	3 down camera and 1 up camera;	Certification:	CE certification;
Warranty of core components:	1 Year;	PCB maximum size:	320*450mm;
Core Components:	Motor;	Selling Units:	Single item;
After-sales Service Provided:	Video technical support,Free spare parts,Online support;	program method:	online and offline ways;
Applicable Components:	RC:0402,0603,0805,1206 Led lamp beads:3014,5050 Chips:SOT,SOP,QFN,BGA;	Warranty:	12 months,1 Year;
After Warranty Service:	Video technical support,Online support;	Single gross weight:	100.0 KG;
Local Service Location:	India,Russia,Spain,South Korea;	Place of Origin:	Zhejiang China;
Machinery Test Report:	Provided;	Showroom Location:	India,Russia,Spain,South Korea;
Compatible file format:	CSV, TXT format;

Electronic Components Making Automatic Pcb Benchtop Low Cost Desktop Mini Smt Pick And Place Machine

Product Description

------Introduction------

Application:Prototyping Machine, Small Production, LAB work, D&R, Education.

Brief Introduction: Machine is customized for small production and prototyping business, with self-designed operating system for developers.

Service:

Ø 24-hours consultant for operating and marketing.

Ø Professional after sell service.

2. Product specifications:

System	Items	Content
Mounting System	Mounting head number	2 pieces
	Mounting accuracy	0.025mm
	Mounting angle	0~360°
	Theoretical Velocity	8000pcs/hour
	Normal mounting	5500pcs/hour
	Visual Mounting	4500pcs/hour
	Nozzle type	Juki series nozzle
	Elements for mounting	RC (0402, 0603, 0805, 1206, etc)
		LED lamp (0603, 0805, 3014, 5050, etc)
		Chip (SOT, SOP, QFN, BGA, etc)
Substrate	Substrate minimum size	10×10mm
	Substrate maximum size (no tray)	320×450mm
	Substrate maximum size (with tray)	320×220mm
	Substrate thickness	≤2mm
	Substrate warp allowed value	<1mm
Feeder	8mm	40pcs
	12mm	8pcs
	16mm	4pcs
	24mm	2pc
	Preposition IC material level	10pcs
	Postposition IC tray	1pc
	Tubular materials feeder	Zhengbang dedicated Five tubular materials feeder one (optional)
X, Y, Z axis	X, Y axis moving range	430*530mm
	Z axis moving range	10mm
	Z axis rotation angle	0~360°
	Visual system	independent research and development
Visual System	Visual camera	CCD high-definition camera
	Visual quantity	4 (3 Parts camera, 1 PCB camera)
	Identification ability	MAX.20*20mm
Control System	PC system	Microsoft WIN7
	Operational software	independent research and development
	Compatible file format	CSV, TXT. format file
	Programming mode	Support online and offline
	Pressure	0.4 MPa (The built-in pump)
Basic Parameter	Vacuity degree	MINUS 92KPA
	Power	150W
	Power supply	AC220V 50HZ
	Main engine outline size	L 830W 730 H375 mm
	Materials feeder outline size	L 235W 700H 245 mm
	Net weight	56kg
	Gross weight	83kg
	Outline package size	1190850560mm

Factory infomation:

Exhibition:

Packing:

11. SMT series related products:

JUKI smt pick and place machine, smt pick and place machine, pick and place, led mounter machine, led pick and place

13. Notes
1.Machines need keeping away from the humid environment and dust, or which will get on electrical shock and fire.
2.Machines need lying stable platform, or which the shake may lead to reduce the precision and even turn over and personal injury.
3.Don’t dismounting the machines casually, or the machine may be broken.
4.Don’t touch the optical axis and the mounting head, or which may damage the machine and hurt yourselves.
5.Make sure the machine engine accordance with the requirements of the standard machine and make sure lie on the ground very well.
6.Make sure the machine away from the inflammables and explosives to avoid the fire and getting the electric shock.
7.Take the small machine parts like suction nozzle at the place where the babies can’t touch.
8.Don’t take the pulling needle stretch out for too long time, or the pulling needle will be broken.
9.Don’t take the machine in the Sun or the highlight directly, or which will reduce the machine precision and even broke the machine.
10.Please kindly contact us if any other questions.

Packaging & Shipping

Plywood case and film or as custom require.
