Packaging Detail: | 1. Inner packing : 100pcs /bag 2. Standard carton; | Stardard packing: | 100pcs /bag; |
Max Current: | 19A / 27 A / 37A / 48A; | Place of Origin: | Zhejiang China; |
Brand Name: | MG; | insulation: | PVC; |
Certification: | CE; | Model Number: | RV5.5-8; |

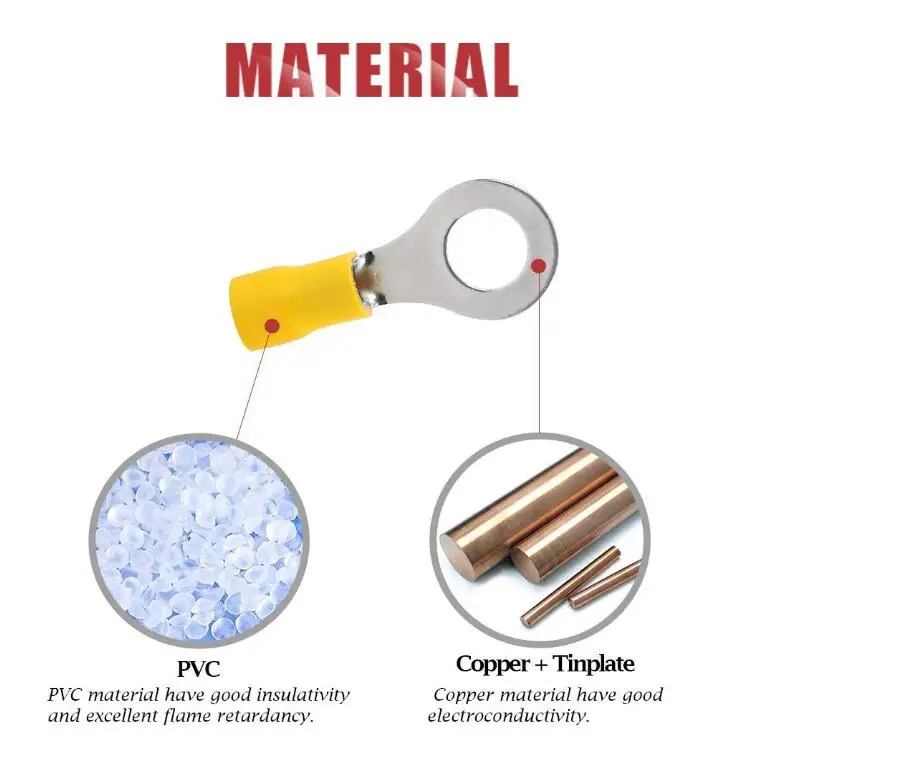

Material: | Copper; | Type: | Crimp Terminal; |
Payment Terms: | T/T,Western Union,Paypal; | Port: | NINGBO; |
Supply Ability: | 10000 Bag/Bags per Day Terminals; | wire size: | 12-16 / 16-14 / 14-12 / 12-10; |
Thickness of copper: | 1.0mm; | Color: | Insulated ring terminals; |
Stude size: | 5/16; |
Product name | Insulated ring terminals |
Thickness of copper | 0.7mm & 0.8mm & 1.0mm |
Material | Copper /Brass |
Material of insulation | PVC /nylon |
wire size | 12-16 / 16-14 / 14-12 / 12-10 |
Stardard packing | 100pcs /bag |
Certification | CE |
Welcome to MOGEN!
Conductor section:4-6mm2 (A.W.G 12-10) Max Current:1max=48A | ||||||||
Ring Terminal Item No | American | d2Φ(mm) | Dimension(mm) | Color | ||||
PVC Insulated | Bolt number | B | L | F | H | DΦ | ||
RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13 | 6.7 | Yellow |
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-6 | 1/4 | 6.4 | 12 | 31.5 | 13 | |||

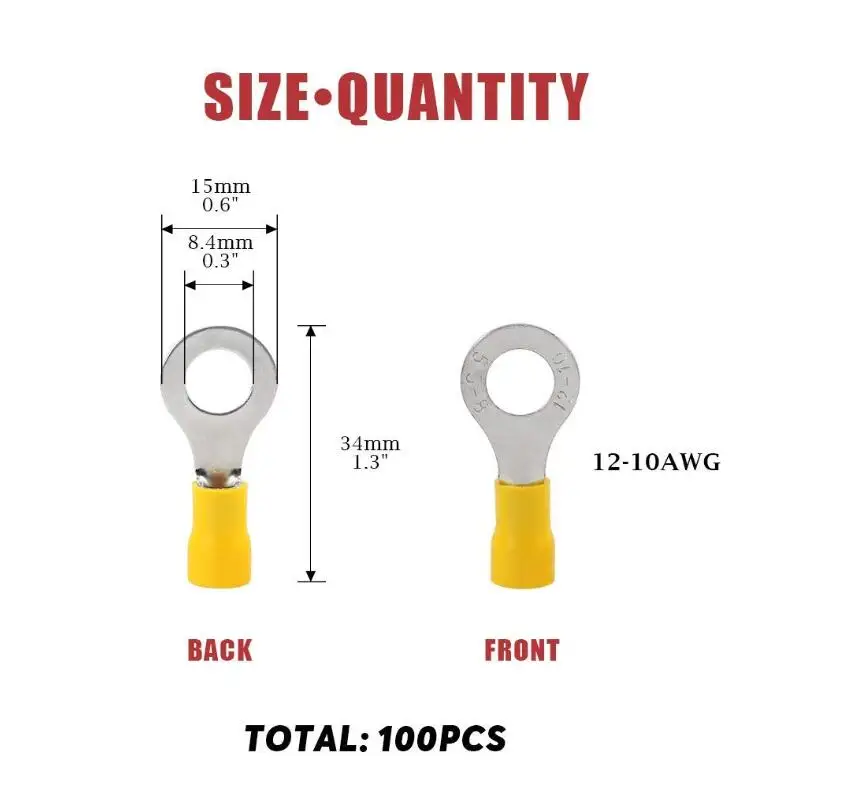

RV5.5-8 | 5/16 | 8.4 | 15 | 33.7 | 13.7 | |||
RV5.5-10 | 3/8 | 10.5 | 15 | 33.7 | 13.7 | |||
RV5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16 |
What a better price? Contact us
leading and the most reliable manufacturers and exporters for Terminals, Connectors and Wiring accessories in china. Mogen Electric provides the high quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation transportation, railway transportation, automobile manufacturing, household appliances, electrical installations etc.
The excellence of every detail is the root of excellent quality. Mogen Electric has strong technical force, the advanced technique of production and complete testing equipment. Mogen Electric has maintained “Excellent quality, Exceeding customer needs”business purposes. Mogen Electric has established quality system according to the product design, manufacturing and service. Mogen Electric has obtained TUV Certification and the Quality Certification of ISO9001 international quality system which issued by the China Quality Certification Center. The products has passed EU,CE Certification. conform to the ROHS standards and SGS Certification, which sell from coast to coast and exported in the Middle East, Southeast Asia, the European Union, the United States, Russia, Australia, South America and other regions and countries.
1. Are you a factory?
We are the manufacturer, we establish in 1999, have 20 years experiences in this field. also we establish the trading company to make easy export.
2. What is MOQ?
No limit.
3. How long is the delivery time?
It depends on the quantity.
For samples or regular items in small qty ,we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we promise to sent in 15-30 days.
4. How about the payment terms?
We accept PayPal, west union and T/T.
5. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
6. How can we get the samples?Is it free?
We provide free samples by express, but you need pay the express charge or make samples collection at your side.
7. What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.
8. How do we know you are a reliable supplier?
MOGEN has own manufacture for more than 20 years of Specializing in various of terminals and connector.
As a professional manufacturer of terminals, we do good quality to cooperate with many countries,such as Russia,Brazil,US,Dubai and so on. You can download the BV test report prom page: COMPANY INTRUDUCTION
