Certification: | ISO; TUV; | Installation: | engineer guide onsite; |
Motor Type: | AC Motor; | Effective cubage: | 1.18; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,negotiable; | Specification: | XB-12*12; |
Motor power: | 2.2kw; | Dimensions(L*W*H): | 1130*1330*1721mm; |
Place of Origin: | Henan China; | Condition: | New; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Model Number: | XB-12*12; |
Production Capacity: | 80%; | Packaging Detail: | Our Agitating (leaching) tank export using standard container 20GP OR 40GP, 40HQ, FR container, in bulk, the spare parts in wooden cases.; |
Application: | chemistry, slurry in the construction, coal dressing factory; | Power: | 2.2kw; |
Warranty: | 1 year; | Chute inner dimension width: | 1200mm; |
Type: | Leaching Tank; | Delivery Detail: | 20-30 days after receiving payment; |
Port: | Qingdao, Tianjin, Shanghai; | Chute inner dimension diameter: | 1200mm; |
Supply Ability: | 100 Set/Sets per Year; | Total weight: | 1160kg; |
Brand Name: | Zhongde; | Dimension(L*W*H): | 1130*1330*1721mm; |
Color: | customised; | Rotate speed: | 390r/min; |

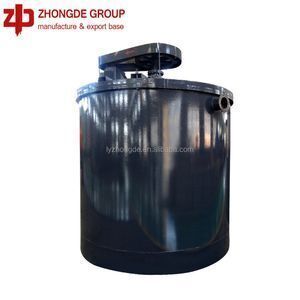

Product introduction
This kind of equipment is used in dissolution of the medication and the pretreatment of the mixing of the ore slurry. It can be also used in some industrial departments such as the chemistry, slurry in the construction, cyanogens factory and waste-water factory and coal dressing factory. The leaching tank mainly uses charcoal immersing method and ore slurry resin method to produce gold. We can put active charcoal or resin into the mixer to get the immersed gold by mixing the whole materials.
Technical parameters of agitating (leaching) tank
Category | Specification | Chute inner dimension(mm) | Effective cubage (m³) | Rotate speed (r/min) | Motor power (kw) | Dimensions (L×W×H) | Total weight (kg) | |
Diameter | Width | |||||||
Agitaion tank | XB-10×10 | 1000 | 1000 | 0.58 | 390 | 1.5 | 1130 ×1130 × 1521 | 1050 |
XB-12×12 | 1200 | 1200 | 1.18 | 390 | 2.2 | 1130 ×1330 × 1721 | 1160 | |
XB-15×15 | 1500 | 1500 | 2.2 | 280 | 3.0 | 1750 ×1640 ×2190 | 1270 | |
XB-20×20 | 2000 | 2000 | 5.6 | 210 | 5.5 | 2380 ×2160 ×2850 | 1700 | |
XB-25×25 | 2500 | 2500 | 11.2 | 190 | 7.5 | 2990 ×2720 ×3540 | 3500 | |
XB-30×30 | 3000 | 3000 | 19 | 140 | 18.5 | 4030 ×3270 ×3010 | 5200 | |
XB-35×35 | 3500 | 3500 | 29 | 230 | 30 | 3920 ×3740 ×4970 | 6630 | |
XB-40×40 | 4000 | 4000 | 5 | 210 | 37 | 4520 ×4320 ×5570 | 7830 | |
Lifting | XBT-10×15 | 1000 | 1500 | 1 | 510 | 2.2 | 1130 ×1130 ×2070 | 1250 |
XBT-15×20 | 1500 | 2000 | 2.9 | 400 | 4 | 1636 ×1768 ×2785 | 1677 | |
XBT-20×20 | 2000 | 2000 | 5.6 | 312 | 11 | 2180 ×2220 ×3015 | 3100 | |
High-efficiency leaching tank | XF-20×20 | 2000 | 2000 | 7.07 | 82.5 | 1.5 | 2032 ×2032 ×3595 | 2400 |
XF-25×30 | 2500 | 3000 | 13.5 | 57.6 | 2.2 | 2532 ×2532 ×4152 | 3670 | |
XF-30×30 | 3000 | 3000 | 22.97 | 50.0 | 2.2 | 3180 ×3180 ×4673 | 5340 | |
XF-35×40 | 3500 | 4000 | 35.6 | 41.0 | 4.0 | 3685 ×3685 ×5314 | 7140 | |
XF-40×45 | 4000 | 4500 | 52.78 | 33.5 | 4.0 | 4185 ×4185 ×5814 | 9300 | |
XF-45×50 | 4500 | 5000 | 74.75 | 33.5 | 5.5 | 4685 ×4685 ×6466 | 10500 | |
XF-50×56 | 5000 | 5600 | 102.1 | 30.6 | 5.5 | 5185 ×5185 ×6975 | 12300 | |
XF-55×60 | 5500 | 6000 | 135.4 | 24.4 | 7.5 | 5670 ×5670 ×7569 | 13500 |
Zhongde supply timely, safely shipping service, including multiple shipping method according to delivery region. We protect your order with extreme care based on rich export experience.
1.Streamlined production allows for prompt delivery times of 6-8 weeks on most products.
2.Bare machine is shipped in export container.
3.Motors and small parts is packaged with attention in hand-made wooden boxes.
