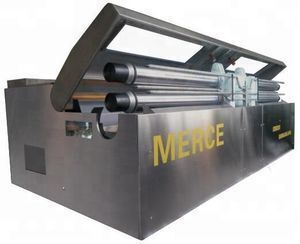

MERCE-10SPC AUTOMATIC HANK YARN MERCERIZING MACHINE

Product details
Warranty:Year;Weight:12600kg;
After-sales Service Provided:Engineers available to service machinery overseas;Condition:New;
Supply Ability:1 Set/Sets per Day;Brand Name:UNITEX;
Number of rollers:2pairs;Payment Terms:L/C,T/T;
Place of Origin:Jiangsu China (Mainland);Dimension(L*W*H):13795*1122*1615;
Automatic Grade:Automatic;Product name:Automatic Hank Yarn Mercerizing Machine;
Port:SHANGHAI;Controller:touch panel&plc;
Product Description


    The new Hanks Mercerizing machine MERCE-10SPC is born with the main purpose to furnish an instrument able to obtain a high quality mercerized yarn/thread for the market of high valuable cotton yarn.
    All tests effected on the different kind of yarns have shown that to obtain a good mercerized yarn it is not sufficient to know the "right" recipe/process, but it is most important keep under control all the process parameters and especially to guarantee the repeatability between a cycle and the next one.(means make colour very even.)
    This is the advantage point of MERCE-10SPC, this machine has been projected with an essential electronic control system to permit the setting out of work's cycles (recipes) in flexible and fast way controlling in real time all the process parameters. It is equipped with simple but strong mechanics able to carry the heavy tensioner stress (up to 80 Tons) and the heavy pressing stress (up to 30 kg/cm) of the hanks under process.
    MERCE-10SPC includes all advantages of three company's (Nishinakajima, Jaeggli, Rite) products, and try to avoid complicated maintenance. in a word: High quality end products, Easy operation, Easy Maintenance.

Electrical installed power
12 kw 400vac
Rotation speed of the hanks
12~25 m/min(to be set by inverter)
Water Consumption
about 300 I/cycle (1/3 room temperature. 2/3 hot 60~80℃)
Caustic soda consumption
1000~1300 g/kg of yarn of NaOH at 28
Normal reeling size
1.370 mm (54") or 1500mm(59")
Range of yarn counts
Up to 120S/2
Hank's weight
0.20-1 kg
Maximum stretching size
1.520 mm
Stretching rollers diameter
210 mm
Useful stretching roller width
1.500 mm*2
Maximum loading capacity/cycle
12 kg
Maximum production/Hour
120 kg/h
Average time of one cycle
300-360 seconds
Stretching force
75 tons,Normal use 60 tons
Squeezing pressure
10-30 kg/cm(adjustable)
Weight
12600 kg
System control
By mitsubishi touch-Panel,PLC
Detailed Images
END PRODUCTS
Packing & Delivery

  Wuxi Jiayida Commerce And Trade Co., Ltd. belong to Unitex Industrial Co., Ltd. The company has a very sophisticated team.

Our Company


    Wuxi Jiayida Commerce And Trade Co., Ltd. belong to Unitex Industrial Co., Ltd. The company is located in Wuxi, China, we combined from four brand new machinery factories, one Auto-System company and two trading companies together. We specialize in manufacturing new yarn and fabric dyeing and finishing machines and supplying other brands new and used textile machinery.
    Our new machinery trade mark is NS, Unitex, and MERCE. NS brand is licensed by Nishinakajima Precision Machinery Co., Ltd. (Osaka, Japan), which has more than 60 years history and experience in the field of yarn finishing machinery. Almost our machines are designed in Osaka, Japan, and we accept supervision and quality control from Japanese textile engineers.
    As a famous brand new textile machinery manufacturer from Japan, we manufacturing two series hank yarn mercerizing machine, package yarn and fabric dyeing machine, yarn singeing machine,soft and tight winding machine, hank reeling machine, caustic soda cooling unit, Radio frequency package dryer(Italy technology), hanks/cone dryer,hydro extractor ......
    We supply all kinds of weaving preparation machines (like warping, sizing...), looms, knitting machine, fabric dyeing and finishing machine...
    We are also a famous dealer of used textile machinery. We are dealing
    1) Used knitting system(circular and flat knitting machine), such as Mayer+Cie, Terrot, Fukuhara(Monarch), Orizio,Pilotelli, Pailung, all Chinese brands, Stoll and Shimaseki
    2) Dyeing and finishing machine,such as Fongs /Thies,Then....
    3) Used spinning system, doubling and twisting,such as Rieter, Oerlikon Schlafhorst, Jingwei, Rifa, Dongxing..., and have other used textile machinery under request.
    We have a great team for reconditioning job, can supply used machines with satisfied condition.
