Ultrasonic transducer/ ultrasonic sensor distance 10 meter/ultrasonic level sensor

Product details
Item name:ultrasonic level sensor;Supply Ability:1000 Piece/Pieces per Month;
Packaging Detail:carton or customers requests available;Port:Shanghai or other;
Protection grade:IP67;Application:Liquid level, Grain level, Distance measuring;
Blind zone:Min. 50mm, Max. 200mm;Output signal:analog, digital, switch;
Brand Name:Kacise;Output:Analog SENSOR;
Place of Origin:Shaanxi China;Casing:Stainless steel, Plastic(ABS,PTFE);
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;Measuring range:Min. 0.5 m, Max. 60 m;
Model Number:GXUM;Theory:Ultrasonic Sensor;
Usage:Level Sensor;

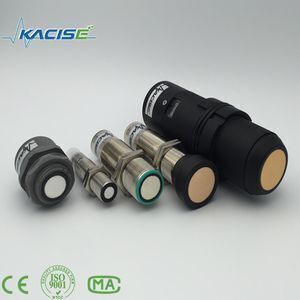

Ultrasonic transducer/ ultrasonic sensor distance 10 meter/ultrasonic level sensor



Product Description

Brief introduction of ultrasonic level sensor

This ultrasonic sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.



Features of long range ultrasonic leve sensor

  • High sensitivity
  • Designed for outdoor or indoor environments
  • 9V-28V supply with very low average current draw
  • Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
  • Free run operation can continually measure and output ranger information
  • Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
  • Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.
GXUM series

Function

Integral type

Remote type

Measurement range

5m,10m,15m,20m,30m,40m,50m,60m

5m,10m,15m,20m,30m,40m,50m,60m,70m

Measurement accuracy

0.5%~1%

resolution

3mm or 0.1%(The larger one is effective)

display

Chinese and English LCD

Chinese and English LCD

Analog output

4wires4~20mA/510Ω load

2wires4~20mA/250Ω load

4~20mA/510Ω load

Relay output

2 AC 250V/ 8A or DC 30V/ 5A  state programmable(optional)

2 for GXUMS series product , 4 for GXUMSD series AC 250V/ 8A or DC 30V/ 5A  state programmable( optional )

Power supply

Standard configuration 24VDC(default) 220V AC+15%@50Hz or 110V AC+15%@60Hz

220V AC+15%@50Hz(default) 24VDC or 12VDC or 110V AC+15%@60Hz

Environment temperature

Display instrument-20~+60℃,

transducer-20~+80℃

Display instrument -20~+60℃,

transducer-20~+80℃

Communication port

RS485(default),RS232

Protocol

Modbus-RTU(default) or Modbus-ASCII

Protection grade

Display instrument IP65,transducer IP68

transducer cable

no

10m(default)  can be ordered as need but cannot longer than 100m

Transducer installation

According to the range and transducer select

According to the range and transducer select





GXUS-M56

+

Range

50...500mm; 100...1000mm; 200...3000mm; 300...5000mm;

500...6000mm

Resolution

3mm or 0.1%(which is bigger)

Response time

< 200ms

Display

LED

Emission angle

20°

Analog output

4~20mA/500Ω LOADING

Switch output

RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)

RS232/485

MODBUS protocol or customized protocol (optional)

Power supply

Standard 24VDC (±15%)

Ambient temperature

-20~+60℃

Protection Class

IP65 (IP66 is selectable)

Installation

M56*2





GXUS-M18; GXUS-M30





+

Sensing range

50...500mm; 70 ... 1000 mm; 80...2000mm; 200...3000mm; 240...4000mm

Standard target plate

100 mm x 100 mm

Transducer frequency

approx.255 kHz

Response delay

approx.125 ms

+

LED blue

Power on

LED yellow

solid: object in the evaluation range

flashing: program function, object detected

LED red

solid: Error

flashing: program function, no object detected

+

Operating voltage UB

10 ... 30 V DC , ripple 10 %SS

No-load supply current I0

≤ 45 mA

+

Output type

1 analog output 0-10V or 4…20mA.

Resolution

0.11 mm at max. sensing range

Deviation of the characteristic curve

± 1 % of full-scale value

Repeat accuracy

± 0.1 % of full-scale value

Load impedance

> 1kOhm

Temperature influence

± 1.5 % of full-scale value

+

Ambient temperature

-25 ... 70 °C (-13 ... 158 °F)

Storage temperature

-40 ... 85 °C (-40 ... 185 °F)

+

Connection type

Device connector M12 x 1 , 4-pin

Protection degree

IP65 (IP66 selectable)

Material

Housing: nickel plated brass

               or stainless steel

               or plastic

Transducer: epoxy resin/hollow glass sphere mixture;

polyurethane foam









Applications



Certifications



Company Information

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

FAQ

1. Q: What information need to be provided to choose the suitable model?

    A: Application field, measuring range, output, accuracy, connection and other related parameters.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

    A: Yes, we have the warranty of 12 months.
