Multifunctional automatic wood turning lathe for sale

Product details
Dimension(L*W*H):2750*1200*1300mm;Spindle speed:0-3500rpm;
Port:Qingdao;Max Feed Speed:35mm/s;
Control system:CNC,PC+12"LCD Or DSP;Marketing Type:Hot Product 2019;
Color:Required;Transmission in X, Y axis:Helical Rack & Pinion Transmission i;
Motor:Big Stepper Motor;Place of Origin:Shandong China;
Packaging Detail:Exportation Standard Wooden Box for wood lathe machine;Brand Name:MASTEC;
Weight (KG):1300;Voltage:380v/customized;
Warranty of core components:1 Year;Local Service Location:None;
Application:Acrylic, MDF, WOOD etc.;Supply Ability:100 Set/Sets per Month;
Software:AutoCAD, Coreldraw, Artcam, Type3, Ucancam, Caxa, UG, Mastercam;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Machinery Test Report:Provided;Max. Turned Length (mm):1500 mm;
Applicable Industries:Building Material Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Advertising Company;Package Preview:;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Video outgoing-inspection:Provided;
Key Selling Points:High Productivity;Function:Turning Cut Cylinder Engraving Plane Engraving;
Certification:CE ISO9001;Warranty:1 Year;
Max. Length of Workpiece (mm):1500 mm;Max. Swing Diameter (mm):300 mm;
Showroom Location:None;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support;Core Components:PLC,Engine,Motor,Pressure vessel;

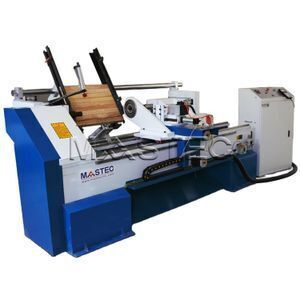

   Multifunctional automatic wood turning copy lathe for sale



As a China professional manufacturer of automatic wood copy lathe machine with rich experiences, we could supply you with the best quality, affordable price and perfect after-sales service.



Product Description





1. Brief Introduction

MWL315CEP is a multi-functional cnc woodworking lathe machine, which could do turning cutting, cylinder engraving and plane engraving jobs. It could process the complex shape of the wood rotary products or semi-finished wood products, such as staircase column, cylindrical, conical, curved, spherical etc. It is especially suitable for the mass production of small or medium-scale wood column products, setting shape flexibly and changing processing style rapidly.



2. Application

>>Applicable Material:

Various wood materials can be processed, such as beech, oak, pile of wood, birch, teak, Sapele, ashtree, merbau, sandalwood, rosewood and other wood material.



>>Applicable Industry:

For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.

The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.



3.  Working Video

>>  https://youtu.be/fSLy1NuJJ2w

>>  https://youtu.be/wtHnC6moP68


Model No. MARS1325 MA1325-RATC MA1325-LATC MA1325-LATCA MA3D-GL
Product Name: 4 Axis CNC Router

Carrousel ATC

CNC Router

Linear ATC CNC Router Linear ATC CNC Router for aluminum cutting White Light 3D Scanner
Play ADD: Play Button Play Button Play Button Play Button Play Button



Please visit our Youtube for more working video:  https://www.youtube.com/channel/UCcDrM7SRhEsd6ZNE2UZdrUQ



4.  Features

1) High efficiency and good surface finish. The machine has 2 cutters: the rough turning cutter and the finish turning cutter, which work synchronously with layered process, and therefore highly improve working efficiency and workpiece surface quality.

2) High precision and accuracy:

Heavy-duty structure with good stability, avoid shaking during the spindle rotating fast or the big sizes workpiece processing; furthermore, the spindle speed is adjustable through the inverter.

High accuracy stepper motor, through program calculating, guarantees the exact processing size.

3)Easy and safe operation and low maintenance cost: humanized and updatable operation system and USB interface, easy and convenient to change the working pattern without live programming.

4) Good Compatibility: freely design and engrave all kinds of patterns and text, which are designed by Coredraw, Artcam, AutoCAD and other software.

5) Smooth and High-Precision Transmission:Germany ball screw and Taiwan PMI linear square rail with high transmitting precision and long working time.

6) Perfect details processing technology: every detail is treated and inspected very seriously so that perfect machine could be made.

7) Matured and perfect after-sales service system around the clock



 5. Technical Parameter



+

Model

MWL315C / CE / CEP

MWL415C / CE / CEP

MWL425C / CE / CEP

Max Processing Size (Diameter*L)

300*1500mm

400*1500mm

400*2500mm

Spindle Power

3.5kw

3.5kw

3.5kw

Spindle Quantity

1

1

1

Tools Quantity

2

2

2

Max Feed Speed

35mm/s

35mm/s

35mm/s

Spindle Speed

0-3500rpm

0-3500rpm

0-3500rpm

Accuracy

0.001mm

0.001mm

0.001mm

Control System

CNC, PC+12"LCD Or DSP

CNC, PC+12"LCD Or DSP

CNC, PC+12"LCD Or DSP

Support Command

G Code

G Code

G Code

Software

AutoCAD, Coreldraw, Artcam, Type3, Ucancam, Caxa, UG, Mastercam

Voltage

380V/50HZ

380V/50HZ

380V/50HZ

Machine Dimension

2750*1200*1300mm

2750*1300*1400mm

3750*1300*1400mm

Weight

1500kgs

1500kgs

2000kgs

Remark:

C Series Function: Double  Cutters, Just Turning Cut

CE Series Function: Double Cutters, Turning Cut + Cylinder Engraving

CEP Series Function: Double Cutters, Turning Cut + Cylinder Engraving + Plane Engraving




 6. Main Configuration & Machine Details








7.Guarantee and after-sale service



1) Machine has been adjusted before delivery.

2) English software, user manual and detailed installation & training Videos DVD

3) Warranty period: two year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.

4) Machine spare parts and repair service is offered in lifetime.

5) Free training is offered in the plant and free samples are available.

6) 24 hours technical support by e-mail, calling or door-to-door service.

7) Professional cnc router machine supplier with 10 years experiences.

8) International quality certificate: CE, ISO9001





Company Information



Quality Control





Our Services







Packaging & Shipping





FAQ

>> How to choose and get the price of the suitable woodworking lathe machine?

The suitable machine will be recommended and quoted if you can answer just 2 questions:

1) What’s kind of work do you want the machine to do?

The final working sample picture would be very helpful for our understanding and save words for you.

2) The original material name, 3D size and the max engraving depth?

>> What’s kind of job the machine can do?

Combining CNC and other mechanical technology, Multi-Functional CNC woodworking lathe could do such job, like Turning Cut, Milling, Twisting line, Pulling groove, Hollowing out and Engraving.

Remark: Above job or function is mentioned only for CE and CEP series.



>> What’s kind of benefit could I get by using this machine?

It can improve the working efficiency and save production cost for you. The processing speed is faster than cnc router machine, but the price is lower than the latter. Furthermore, the tool is not easy to be broken in comparison with cnc router machine. Maintenance cost is lower and it occupies smaller space too.



>> Is the machine suitable for our local power supply?

Don’t worry, our machine can be designed according to your local power supply condition.



>> This is the first time I use this kind of machine, is it easy to operate?

English manual or guide video could clearly show you how to use machine properly.

For more confused question, on-line technical support service is available by phone or by instant messaging.

Technical support engineer is available for being dispatched overseas.



>> If machine have any problem after I ordered it, how could I do?

Free replacement of the damaged parts under ‘normal usage’ for a period of one year from the date of original shipment. spare parts and repair service is offered in lifetime.

24 hours technical support by e-mail, calling, IM (instant messenger like Skype, WhatsApp, Viber or door-to-door service.

Technical support engineer is available for being dispatched overseas.



>> MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price sent to you.



>> The delivery time ?

In normal condition, the standard machine could be available for delivery within 15 working days since the confirming date of pre-payment. Negotiable for both sides if any emergency arises.



>>How many sets of machine could 20’ and 40’ container hold?

For MWL315 and MWL415, 4 sets in 20’ container and 8 sets in 40’ container.

For MWL425, 2 sets in 20’ container and 8 sets in 40’ container.

For other size, please consult with us.



>> How to pay?

In normal condition, T/T payment is recommended because it’s the easiest way and save trouble and time for both sides. We are credit verified supplier and do long-term business, so do not worry about the security.



>> Can I distribute your machine in my country?

Welcome and thank you to be our distributor if your country hasn’t had sole agent of our machine. We could sign an agreement and issue authorization certificate for you. Technical consultancy service, training and other technical support service is free. Furthermore, the profit returning (above specific sales quantity) incentive system will be helpful for your business.


For special requirement on automatic wood copy lathe machine, Cnc Woodworking Lathe Machine, customization service is available.
