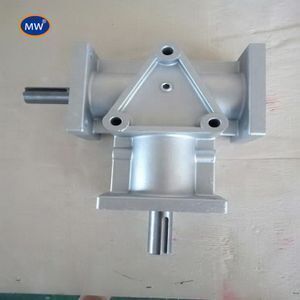

ARA series helical bevel gearbox straight bevel gearbox

90 Right Angle Bevel Gear Reducer

hollow shaft bevel gearbox

aluminum bevel gearbox

• Ratio: 1:1,1.5:1 ,2:1 , 2.5:1 ,3:1 ,4:1 , 5:1
• Helical Gear Material: 20crmntih and 17crnimo6
• Shaft Material: 40cr Forged Steel
• Helical Gear Hardness: Hrc58-62
• Gear Housing: Cast Iron(Ht250 or Qt450)
• Weight: 2-488KG

• Product Features:

  1, chassis: high rigidity cast iron FC-25;

  2, gear: high-quality high-purity alloy quenched 50CrMnT processing by carburizing and grinding together;

  3, the spindle: high quality alloy steel 40Cr quenched high purity processing, with hanging load capacity.

  4, bearing: with a heavy load capacity tapered roller bearings;

  5, Seal: imported oil seal lips, with a high dust and anti-spill.



  Features:



  ARA series of spiral bevel gearboxes characteristics: small , full installation , light weight, aluminum alloy shell, shaft requires the use of corrosion-resistant steel when ordering . Lubricant has been added at the factory .



  ARA Series modular steering box using scientific design, features significant transmission equipment industry is an indispensable product . ARA series steering box excellent performance, light weight , small size, containing material ; rugged, high quality aluminum alloy die casting ; appearance, reasonable design, reverse operation , input and output using multi-dimensional structure, and the output diverse ways . For a wide range of torque, low noise , long life.

  Technical parameters:

  Power : 0.018KW ~ 4.94KW

  Torque : 6.95 ~ 46.8Nm

  Transmission ratio : 1:1, 2:1

•

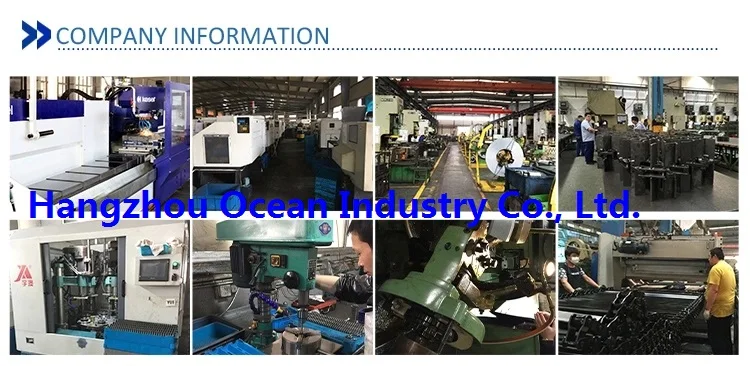

• As a leader manufacturer of industrial motors, speed reducers, drives etc in China, our company has always been adhering to the " leading technology innovation, achieving excellent quality" concept, the main products are: Micro gear motors, medium-size gear motors, Brake speed regulating motors, torque motors, DC motors, NMRV worm motor, helical bevel gear motors, WP RV series worm reducer, rigid tooth flank helical gear units, Helical worm gear units, Parallel shaft helical gear units, Spiral bevel gear units, SWL& JW Worm screw jack, Rigid tooth flank gear units, Planetary gear units etc transmission products, which are widely used in various industrial production lines, Such as transportation machinery, food machinery, medical machinery, printing machinery, textile machinery, packaging machinery, office equipment, instrumentation and other fields, is the preferred supporting products for automation equipments.
