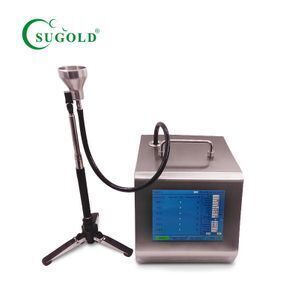

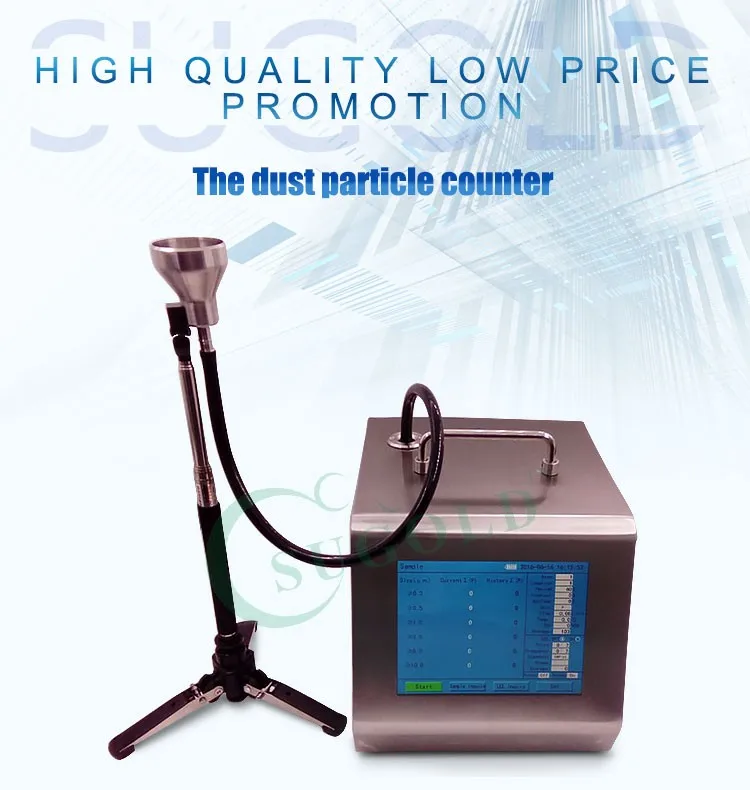

Y09-550 Digital laser airborne particle counter dust particle counter

Product details
Max. Consumption:80W;Model Number:Y09-550;
Zero Count:≤10min;Atmosphere Pressure:86Kpa-106Kpa;
Display:Touch screen (LCD);Weight:7.5Kg;
Operating Time:5 hours;Payment Terms:L/C,T/T,Western Union;
Flow rate:50L/min;Place of Origin:Zhejiang China (Mainland);
Supply Ability:100 Set/Sets per Month;Power Source:DC16.8V built-in lithium-ion battery (Built-in Lithium Battery);
Brand Name:SUGOLD;Maximum Rated Particle Concentration:35000 particles/L (≤0.5μm);
Packaging Detail:Cardboard Cartons;Model:Y09-550;
Port:Ningbo;
Product Description

Product Application

Y09-550  Particle Counter  is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-550 laser particle counter use a semiconductor laser light source, a large touch-screen display, small size, light weight, high precision, features simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectors.

SPECIFICATIONS
Model
Y09-550
Outside Dim
 320 * 272 * 240 mm3 (  Wide * High * Deep)
Display
 Touch screen (LCD)
Weight
 7.5Kg
Max.Consumption
80W
 Power Source
DC16.8V built-in lithium-ion battery (Built-in Lithium Battery)
Size Channels
  0.5, 1, 3, 5, 10, 25 μm
Calculation
95% UCL calculation of particle concentration can be displayed directly
Flow Rate
50L/min import sampling pump
Sample Time
Between 6 ~ 999999s optional (Selectable)
Zero Count
≤ 10min
Location Labels
0 -9999
Printer
Built-in Thermal Printer
Data Storage
20000 Group / Section 300 UCL (with a PC dedicated communication software)
Light Source
Laser Diode (30,000 hours Mean Time Between Failures)
Maximum Rated Particle Concentration
35000 particles/L (≤0.5µm)
Operating Time
5 hours
Environmental
Temperature (Temperature): 10 ~ 35 degree celsius Humidity (Humidity): 20% ~ 75% RH Atmospheric pressure (Atmosphere Pressure): 86 ~ 106Kpa
Certifications
