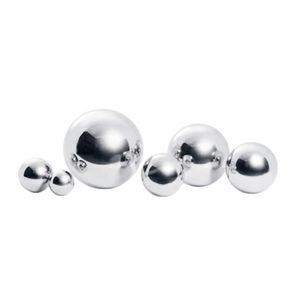

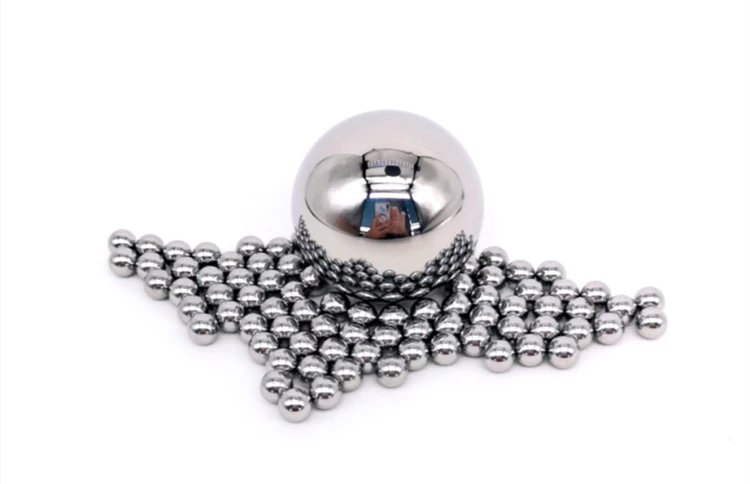

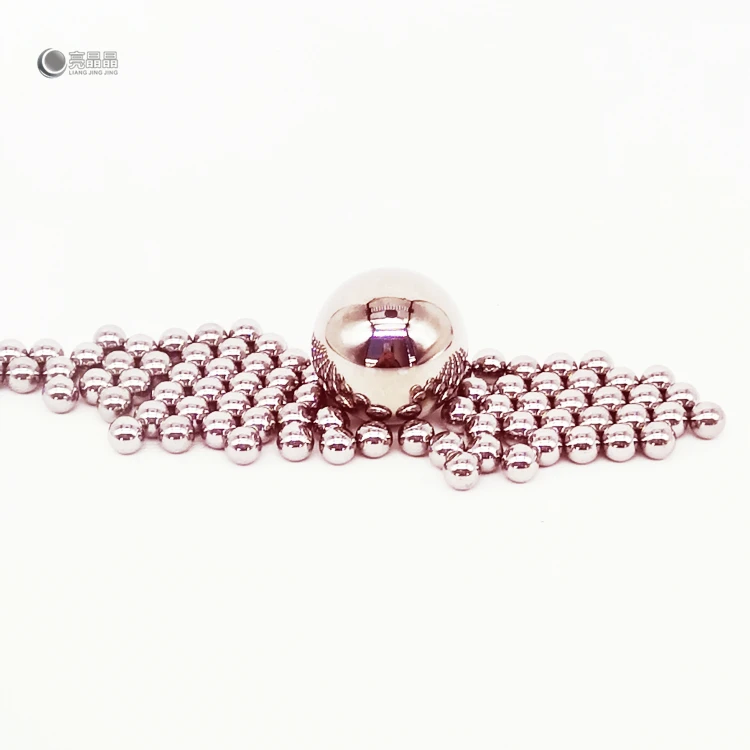

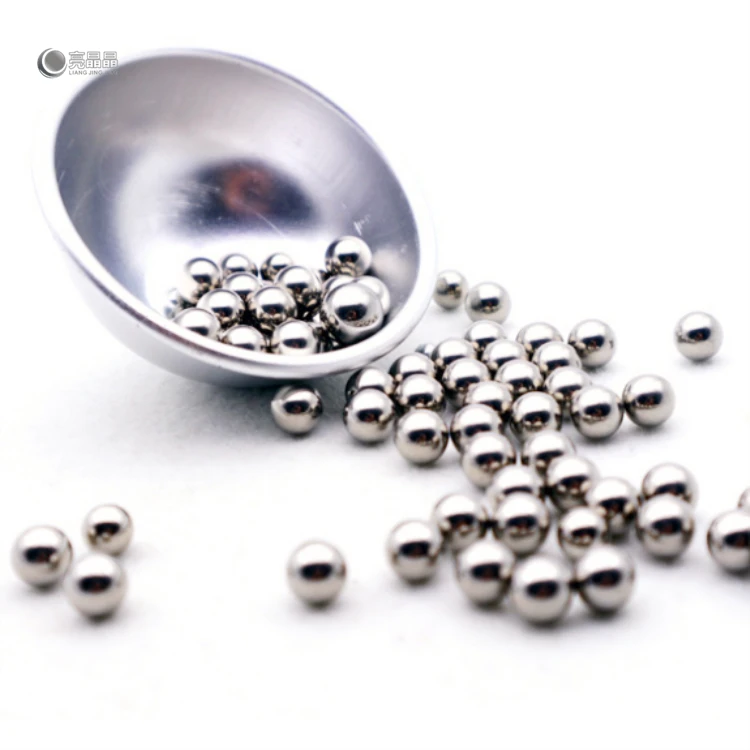

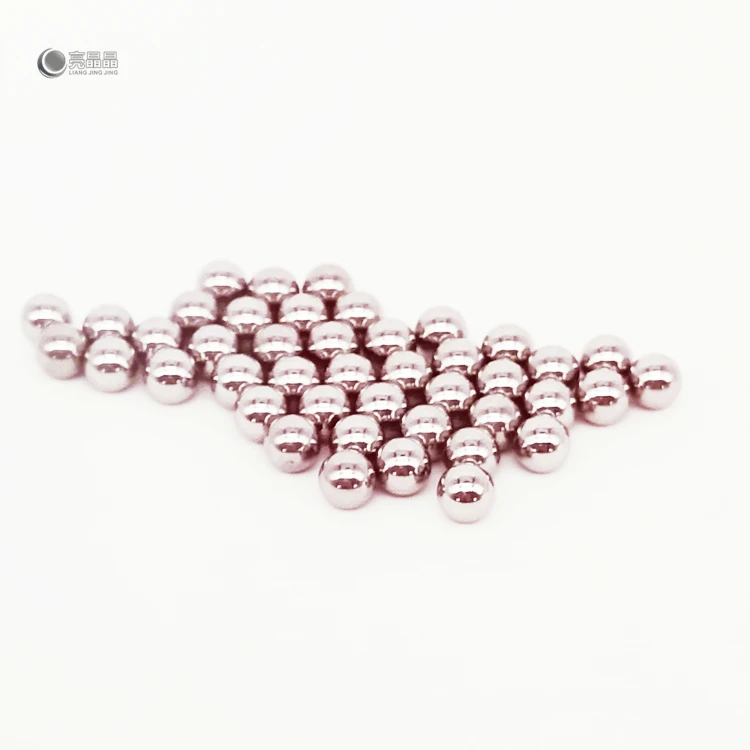

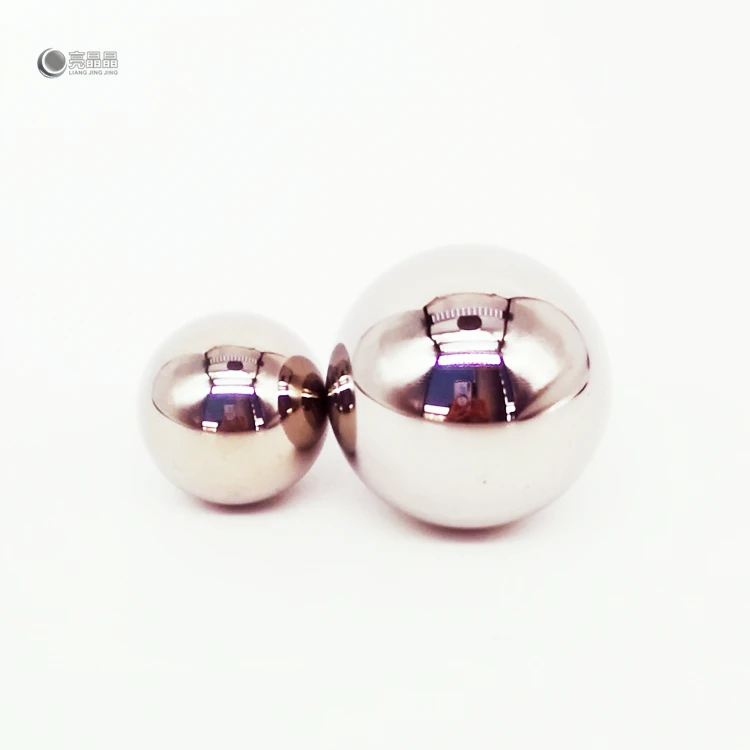

1/8 inch 52100 high grinding chrome steel ball bearing steel balls

In Ball Bearings
 Grade 20, hardened chrome steel balls are applicable.
 Manufactured in high carbon high chrome steel, also called bearing steel (AISI-52100 / EN-31)
 Ball Diameter Tolerance: 0.000020 inch or 0.0005 mm or 0.50 microns.
 Basic Diameter Tolerance: ± 0.0001" or ± 0.0025 mm or ± 2.50 microns

In Bicycles

 Grade 200 or 500 are suitable.
 Manufactured in hardened high carbon high chrome steel (AISI-52100 / EN-31 / EN-9 / M.S.)
 Generally used diameter (in inches) are 1/8", 1/4", 3/16", 5/32"

As Agitators
In the plating bath for plating zinc and lead
In the plating baths, chrome steel balls of 1, 1.5 and 2 mm diameters are used. High tolerance is not required and hence, grade 1000 polished ball is generally suitable. At times, stainless balls of 304 steel are also used.

In paint spray cans
Here balls of 3/8" or 10 mm diameters, G-1000 are used. The steel balls stir up the paint and mix it thoroughly.

 In personal care products like nail polish
Because of non-usage, the fluid coagulates and the bottle is shaken to homogenize the fluid and make it free flowing. The bottle contains a steel ball which is used as an agitator ball to help in achieving the above when the bottle is shaken. Because of the fluid, the steel balls can be prone to corrosion, hence AISI 316 stainless balls are preferred. 3 and 5 mm sizes (1/8" and 3/16" diameters) are generally used. Grade   -1000 is suitable for this application.

Related Products

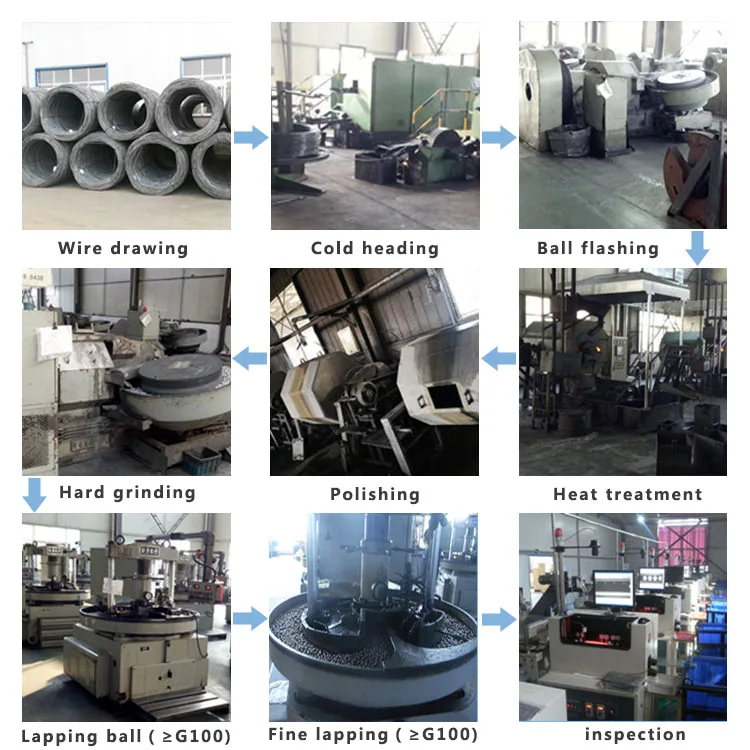

1.Raw Material

Each batch of raw material steel is inspected and classified according to different material (carbon, stainless, chrome), size and quantity, which marked with the Material Cert. The qualified steel comes to the quarantine area; the unqualified will be rejected with a record.

2. Wire Drawing

The steel is made into different sizes according to the needed requirements.

3. Heading

The raw material certified is worked on high-speed casting machines to cast into different size pieces.

4.Flashing

This step of the production process involves rolling the pieces between discs with concentric grooves to eliminate signs of casting and to increase the precision of the ball.

5. Heat Treatment

Heat treatment, where necessary, gives the balls the maximum possible hardness and the best technical characteristics that can be achieved with the materials used.

6.Lapping  i (Grinding)

Successively several careful grinding processes using ceramic grinding wheels give greater dimensional precision and prepare the balls the next, final lapping process.

7. lapping ii

 This procedure gives the ball a perfectly shiny, compact and defect-free surface, with very low surface roughness, much lower than that required under GB/308-2002

8. Selecting and Final Inspection

The sorting machines together with the manual

 detecting  and  modern testing processes, largely ensures the high quality of our products.

9. Packing

We will arrange the package according to the customer's needing.

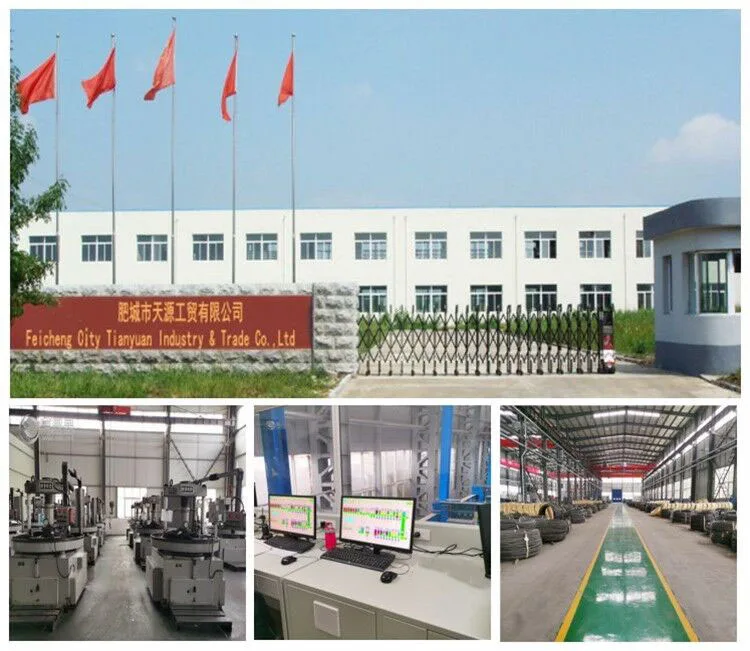

Our Company

Feicheng City Tianyuan Industry &Trade Co., Ltd was established in1999 and it has gone through for 20 years with glorious history. It is located in the foot of the world-famous Mount Tai, where has predominant location and convenient transportation. Our factory covers an area of 7000 square meters. Now we have 100 employees, 28 technical staffs, including 16 senior technical staffs. We have the advanced production equipment, perfect testing equipment, including 96 sets of cold heading machine , 8 sets of vertical optical4980 ball machine ,6 sets of 4680 ball machine , 6 sets of 4870 lapping machine, 5 sets of heat treatment equipment. Powerful technical force and strong group provide the good products for you, it can produce 3.5 billion pieces of balls yearly and it is a large private steel production enterprise, which concentrates in technology, production and trade .

Our Team

We are  a professional team. Our members have profound professional knowledge and practical ability.

 We are a young team. We are full of passion and courage, and we dare to innovate.

 We are a dedicated team. We firmly believe that quality comes from the trust of customers, only by focusing can we achieve good quality.

Exhibition

As the world's largest industrial exhibition ,Hannover Messe attracted 215,000 visitors and more than 6,500 exhibiting companies from 75 countries.

We participated in the Hannover Messe From April 1st to 5th, 2019.At the exhibition, we met many customers in cooperation,and also met many new friends from all over the world.Through face-to-face communication,they have more understanding and trust in our products .

Customer Visiting

Feicheng Tianyuan has established a strategic alliance business relationship with partners all over the world in response to international demand .For the past years, our export amount has reached more than six millions dollars,our products are sold well in Europe, America, Southeast Asia and other countries and regions, and are
received at home and abroad with "excellent quality, excellent service and reasonable price".

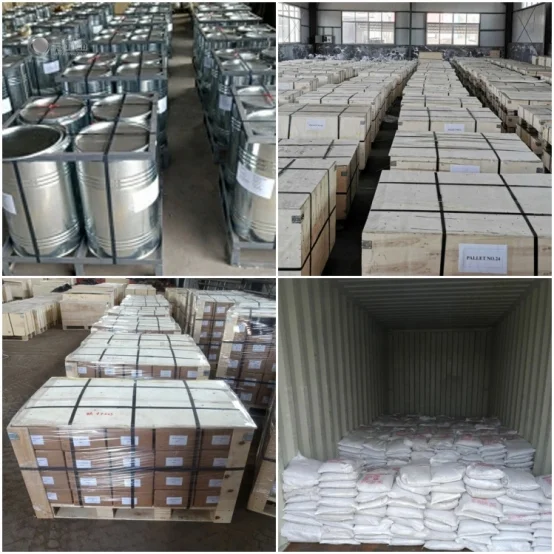

(1)We can provide many kinds of packages according to the customer's needing :

1, woven bag

2, woven bag + carton box

3, woven bag + carton box + wood pallet

4, woven bag + carton box + wood cases

5, boxes + carton box + wood cases

 If the customers have their own packages,we can also customize.

 (2)Our loading ports :
Qingdao,Shanghai,Tianjin,Shenzhen,Ningbo,Guangzhou,Suzhou,Dalian,Tangshan, Qinhuangdao,Yingkou.

We get the above Certificates:

Business License

Organization Code Certificate

Tax Registration Certificate

Permission License

SGS Certificate

Certificate of quality management system certification

GB/T19001-2016 idt ISO9001:2015

IATF 16949:2016

Certificate of Honor

Patent Certificate

Q:Are you the factory or trade company?

A:Yes, we are professional the original factory of steel balls.

Q:Free sample can be provied?

A:Of course, we can.Free samples can be offered for your quality check.

Q:What's the inspection method to ensure the quality of steel balls?

A:Roller sorting, optical machine sorting and visual inspection.

Q:How is the after sales service?

A:Please contact us in 24 hours freely.We will reply you in 1 hour.

Q: Can I come visit your office and factory?

A:Yes, and we shall be greatly honored by your gracious presence.

Q: What is your delivery time for the order?

A: Normally our delivery time is 15-20 days, but if we have the products you want in our stock, the delivery time will be in about one week or less.

Q: Which country is your main market now?

A: Mid-East, North Africa, West Africa, South-east Asia, South America and Northern Europe district. Especially, a firm customer base in Saudi, Morocco, Nigeria, India, Bangladesh, and Russia etc.
