HIGH QUALITY ALUMINUM BLIND RIVET

Product details
Finish:Bright(Uncoated);Supply Ability:10000 Carton/Cartons per Month HIGH QUALITY ALUMINUM BLIND RIVET;
Standard:GB12618/DIN/ISO,GB;Body:Aluminum ally 5050;
Packaging Detail:HIGH QUALITY ALUMINUM BLIND RIVET will be packed in 1000pcs per ploybag, then into the color box,10-20 boxes per one carton Or as your request.;Model Number:12618;
Package Preview:;Mandrel:Steel 1008;
Samples:Free;Head:Dome Head;
Mandrel finished:White zinc or yellow zinc;OEM:Yes;
Port:FOB SHANGHAI;Product:HIGH QUALITY ALUMINUM BLIND RIVET;
Place of Origin:Jiangsu China;End:Open Type;
Payment Terms:L/C,D/P,T/T,HIGH QUALITY ALUMINUM BLIND RIVET;Brand Name:Bounty;
Material:stainless steel,Steel,Aluminium;
Product Description

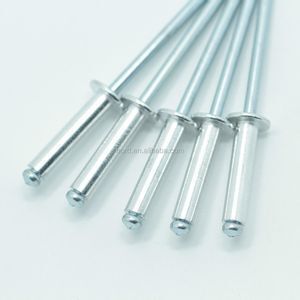

HIGH QUALITY ALUMINUM BLIND RIVETS

Material :aluminum alloy: 5050 / 5052 / 5056 / 5154 / 6063 / 1100

steel/stainless steel/copper/brass/monel

STANDARD: DIN / GB / JIS / ISO / IFI / BS / ASTM

Blind Rivets are high strength one piece break-stem fastener that require access from one side only. They are available in various materials such as Aluminum alloy, Steel and Stainless Steel in a variety of lengths & diameters. Also they are available in various head forms - Dome Head, Countersunk and Large flange to suite applications where wide load spread or flush surface is required.

A general purpose rivet that can be used where the materials to be fastened does not require load bearings. Open-end blind rivets provide an economical means for fastening metal parts where easy disassembly is not required. The bodies of all our open-end blind rivets are fabricated by cold-heading, offering superior strength and excellent appearance.

Rivets can be used in numerous applications with low load bearing applications. Rivets are handy where access at the back of the work piece is restricted or not accessible.

The standard head style is dome which is suitable for most applications,

large flange rivets are good for riveting thin or softer materials such as plastic, timber etc to a rigid backing,such as fastening softer materials (wood or plastic, for example) to metal.

A countersunk rivet is used primarily on metal surfaces where a flush appearance is required.

HIGH QUALITY ALUMINUM BLIND RIVETS Advantages

  1. low installation cost
  2. Tamper proof
  3. Vibration resistance
  4. Reliable
  5. Where there is no access to opposite side of work.
  6. Simple to Install.
  7. Wide variety of head styles and length.
  8. No need for tapping in the hole.
  9. Strong and low cost fastener.
  10. Ideal for wide range of applications.

HIGH QUALITY ALUMINUM BLIND RIVETS Applications

  1. Construction
  2. Electrical switchboards & appliances
  3. Sheet metal industries
  4. 4.and much more

We stock the drill bits and tooling that sets this fastener!

hand riveter: Drills:



Size
HIGH QUALITY ALUMINUM BLIND RIVETS SIZE BY MM
2.4MM 3.2MM 4.0MM 4.8MM 5.0MM 6.0MM 6.4MM
2.4 X 4MM 3.2 X 6MM 4 X 6MM 4.8 X 6MM 5 X 6MM 6 X 12MM 6.4 X 12MM
2.4 X 5MM 3.2 X 8MM 4 X 8MM 4.8 X 8MM 5 X 8MM 6 X 14MM 6.4 X 14MM
2.4 X 6MM 3.2 X 10MM 4 X 10MM 4.8 X 10MM 5 X 10MM 6 X 15MM 6.4 X 15MM
2.4 X 7MM 3.2 X 12MM 4 X 12MM 4.8 X 12MM 5 X 12MM 6 X 16MM 6.4 X 16MM
2.4 X 8MM 3.2 X 14MM 4 X 14MM 4.8 X 14MM 5 X 14MM 6 X 18MM 6.4 X 18MM
2.4 X 9MM 3.2 X 15MM 4 X 15MM 4.8 X 15MM 5 X 15MM 6 X 19MM 6.4 X 19MM
2.4 X 10MM 3.2 X 16MM 4 X 16MM 4.8 X 16MM 5 X 16MM 6 X 20MM 6.4 X 20MM
2.4 X 12MM 3.2 X 18MM 4 X 18MM 4.8 X 18MM 5 X 18MM 6 X 22MM 6.4 X 22MM
  3.2 X 19MM 4 X 19MM 4.8 X 19MM 5 X 19MM 6 X 25MM 6.4 X 25MM
  3.2 X 20MM 4 X 20MM 4.8 X 20MM 5 X 20MM 6 X 28MM 6.4 X 28MM
  3.2 X 22MM 4 X 22MM 4.8 X 22MM 5 X 22MM 6 X 30MM 6.4 X 30MM
  3.2 X 25MM 4 X 25MM 4.8 X 25MM 5 X 25MM 6 X 32MM 6.4 X 32MM
    4 X 28MM 4.8 X 28MM 5 X 28MM 6 X 35MM 6.4 X 35MM
    4 X 30MM 4.8 X 30MM 5 X 30MM
    4 X 32MM 4.8 X 32MM 5 X 32MM
    4 X 35MM 4.8 X 35MM 5 X 35MM
    4 X 38MM 4.8 X 38MM 5 X 38MM
    4 X 40MM 4.8 X 40MM



Advantages

HIGH QUALITY ALUMINUM BLIND RIVETS

1.Low MOQ: It can meet your business very well.

2.OEM Accepted : We can produce any your design box(your own brand not copy).

3.Good Service : We treat clients as friend.

4.Good Quality :We have strict quality control system .Good reputation in the market.

5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

6.Many rivets type:Any type of rivets can be supplied.



Sample Charge:



1.Samples charge:According to your request . Sampling time:3-5days

2.Samples charge:Free for Existing Samples Sampling time:1day



Quality Control & Certification:





Our Innovation



Quality & Service At Mayshee, our #1 priority has always been providing our clients with great quality products and superior customer service.

Quick LeadTime We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.

Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!

Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.



Check below for more information on placing an order

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, artwork, payment term etc.

3. Mayshee sales send the Proforma Invoice with mayshee seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection .

7. Clients make payment for balance and Mayshee Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.

8. Order can be say “finish” when you receive the goods and satisfy with them .

9. Feedback to Mayshee about Quality , Service, Market Feedback & Suggestion. And we can do better .



Our Services

OEM: is acceptable.

Sample : Free

Working time: 365Days X 24 Hours

Before shipment,the production picture will be send.

Company Information
AS A PROFESIONAL MANUFACTURER, WE CAN SUPPLY ALL THE TYPE OF BLIND RIVETS:
HEAD: DOME/CSK/FLANGE
END TYPE: OPEN,CLOSED
MATERIAL: DIFFERENT ALUMINUM ALLOY/STEEL/STAINLESS STEEL/COPPER/BRASS/MONEL
Size: FROM 2.4-7.8MM
