ZANDER type Air-cooled compressor air dryer compressed air dryer

Supplier: Shanghai Holysun Machinery Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms Christina Zeng
Price: $305.00 /set
Min. Order: 1 set

Click here to contact

Product details

Inlet pressure:	6~10bar;	Brand Name:	HOLYSUN;
Type:	Air Dryer;	Place of Origin:	Shanghai China;
Marketing Type:	Ordinary Product;	Single gross weight:	55.0 KG;
Warranty:	1.5 years;	Video outgoing-inspection:	Provided;
Packaging Detail:	Wooden box;	Package Preview:	;
Designed dew point:	2~10℃;	Single package size:	63X45X67 cm;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Delivery detail:	negotiate with supplier;
Cooling method:	air-cooled;	Keyword:	compressed air dryer;
Inlet temperature:	≤60℃;	Showroom Location:	Turkey,Viet Nam,Brazil,Pakistan,Russia,Thailand,Chile,Bangladesh,South Africa,Kyrgyzstan,Malaysia;
Local Service Location:	Viet Nam,Brazil,Pakistan,Russia,Thailand,South Korea,Chile,Kazakhstan;	Product name:	ZANDER type Air-cooled compressor air dryer compressed air dryer;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Energy & Mining;	Pressure drop:	≤0.2bar;
Machinery Test Report:	Provided;	capacity:	0.7m3/min(25scfm);
Selling Units:	Single item;	Refrigerant:	R-407C/R-134a;

ZANDER type Air-cooled compressor air dryer compressed air dryer

Product Description

WHAT'S REFRIGERATED AIR DRYER?

Refrigerated Air Dryer is a air drying equipment, which works with air compressor and air filters to get the dried and purified compressed air.

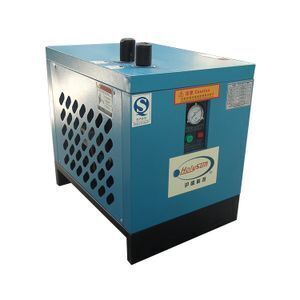

PRODUCT SHOW

INTERNAL PHOTO

OW IT WORKS?

HOW IT WORKS?

Refrigerated air dryer is drying through cooling. It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air from its outlet.

HRD-0.7F TECHNICAI DATA

HRD SERIES TECHNIAL DATA

HOW TO CHOOSE CORRECT MODELS?

To Choose a Refrigerated Air Dryer correctly, you should consider the actual compressed air flow rate, inlet pressure, inlet temperature, ambiant temperature and the request of dew point. Therefore, Capacity=Compressor FAD÷(table-1)÷(table 2) x (table 3).
