MITUTOYO micrometer Japanese famous brand for submicron unit measurement tool

  • Supplier: KYOWA CO.,LTD.
  • Region: China
  • Price: $50.00 /piece
  • Min. Order: 1 piece
Product details
Supply Ability:200 Piece/Pieces per Week;Packaging Detail:Packaged in cardboard with cushioning;
Brand Name:Mitutoyo;Place of Origin:Japan;
Port:Kansai International Airport / Osaka International Airport / Osaka;Package Preview:;
Payment Terms:L/C,T/T,Paypal;Model Number:ky-mitu-01-026;

Japanese Mitutoyo micrometer for submicron unit measurement tool set



Our strengths are our speedy support, excellent product appeal,

and our ability to offer reliable advice.


In addition to our publicized products, we handle a large number of other items.

Please consult with us on any matter or issue you may have.



We can provide new products and technology a step ahead of other companies.



 PLEASE CONTACT US FREELY !

Our Skype ID :  yusuke.nishida-kyowa



Product Description

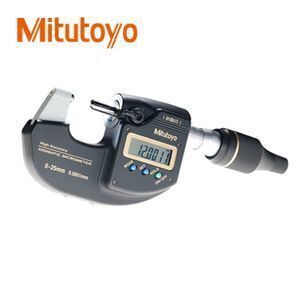

 MDH-25M

mitutoyo micrometer .

Answering high precision measurement needs,

this is a digimatic micrometer that can take measurements in the 1μm range.
As a result of Mitutoyo's unique 0.1μm resolution ABS (absolute) rotary sensor

and high precision screw processing technology,

this micrometer boasts an instrumental error range of just ±0.5μm.

With the same usability as conventional micrometers, high precision measurements are possible.




By employing a highly rigid frame and high-performance constant-force mechanism,

measurement stability is improved,

while the clicks emitted while the work piece is being measured assure the operator

that measurement is proceeding normally.



 Specifications



Accessories

Heat resistant cover (NO.04AAB969A) 1 piece
Lithium battery (CR2032 for use by the monitor) 1piece
spanner(No.200877) 1piece,
screwdriver(No.04AAB985) 1piece
lens paper
inspection report

Mass(g)

400(Heat resistant cover attached 440g)

Measurement range(mm)

0~25

Power supply

Lithium battery(CR2032) 1piece

Minimum indicator value(mm)

0.0001(can be switched to 0.0005)

Measuring ability(N)

7~9

Measuring surface(mm)

Φ3.2







Dimensional diagram of  mitutoyo micrometer







Product Effects




The ABS (absolute) rotary sensor eliminates the need to perform origin setting

each time the power is turned on, letting you start measuring straight away.

Furthermore, with no possibility of over speed errors,

a higher level of reliability is delivered.



Body heat transferred to the instrument is reduced

by attaching a heat resistant cover (supplied as standard),

minimizing the error caused by thermal expansion of the frame

when performing hand-held measurements.





Functions




Function lock feature: Locks zero set and preset functions

to prevent the origin point being changed by mistake.



Preset  feature:set up a measurement origin.



Zero set  feature: the clearance of an indicated value. It can be performed in arbitrary positions, and a comparison measurement can be done comfortably. Even after carrying out a zero set, it can return to the absolute-value measurement.



Hold  feature: anchoring of an indicated value.



The minimum labeled-amount change  feature: The change of the minimum beam of an indicated value can be performed. it can change to a 0.5-micrometer display from 0.1-micrometer.



ON/OFF  feature: a power can be turned OFF after the end of a measurement. Even if it turns OFF, an origin and the position of zero are memorized.



Auto power-off  feature: even if it forgets to turn off, when the state where it is not used for about 20 minutes continues, it is automatically turn off.



Output of measurement data  feature: Construction of a statistical-process-control system and an instrumentation system can be performed.



Failure alarm  feature: if overflow and error occur, an error message should be displayed on a display screen and a measurement function should be stopped. A measurement is not continued by mistaken display.

Moreover, if the residual quantity of a storage battery decreases, before being in a measurement improper, a storage-battery mark will light up, and it will tell that the storage battery is exhausted.



Battery life:about 2 years     - Instrumental error (μm) :   ±0.5 (20 ℃)





Related Products




In addition to this series, we handle a large number of other Mitutoyo products.
Please do not hesitate to contact us.






mitutoyo micrometer
