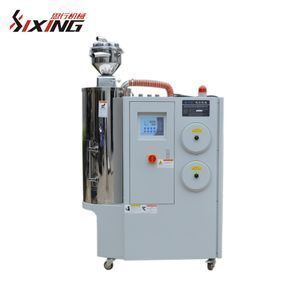

Honeycomb rotor 3 in 1 dehumidifier dryer for plastic raw materials

Product details
Regeneration blower:0.18kw;Package Type:Wooden box;
Voltage:Customized;Delivery Detail:0 days after payment;
Dry blower:0.4kw;Renewable electric:3kw;
Dryer hopper:25kg;Absorb blower:1.1kw;
Warranty:1 year;Dry temperature:80-160 degree;
Brand Name:SIXING;Package Preview:https://sc01.alicdn.com/kf/HTB1krZyXs_vK1RkSmRyq6xwupXan.jpg_640x640.jpg;
Condition:New;Single gross weight:200 KG;
Place of Origin:Guangdong China (Mainland);After-sales Service Provided:Overseas service center available;
Certification:CE;Dry air capacity:80 cubic metre/hr;
Dimension:1150x750x1600mm;Selling Units:Single item;
Single package size:135X95X180 cm;Drying heater:3kw;
Product Description

1) Microcomputer controller adopted.
2) This 3 in 1 dehumidifier dryer is equipped with imported honeycomb dehumidifying rotor from Proflute, a Swedish company.
3) Micro-motor designed with the latest pendulum structure for easier achievement of dew-point.
4) Suitable for use on engineering plastic materials with strong absorption ability such as PA, PC, PBT, PET, etc.
5) Integration of three functions in one machine, namely dehumidifying, drying and two-section material conveying. Three-section or four-section material conveying is also optional.
6) Air blowing tube designed under the heat-preserving drying barrel to effectively avoid heat dissipation and improve drying efficiency.
7) Using dual-fin cooler design to ensure a lower return air temperature and dew-point.
8) Equipped with material conveying, recycling and regenerating filter to keep the key components such as the fan and honeycomb from dust contamination.
9) The conveying system contains a material cut-off valve to make sure no remains in the tube.
10) Optional dew-point meter with real-time display of dew-point detected.
11)With recyclable and resettable filter to make sure the honeycomb is not contaminated.
12) A thoughtful multiple security device built in.
13) Clear fault code display.

Working Principle

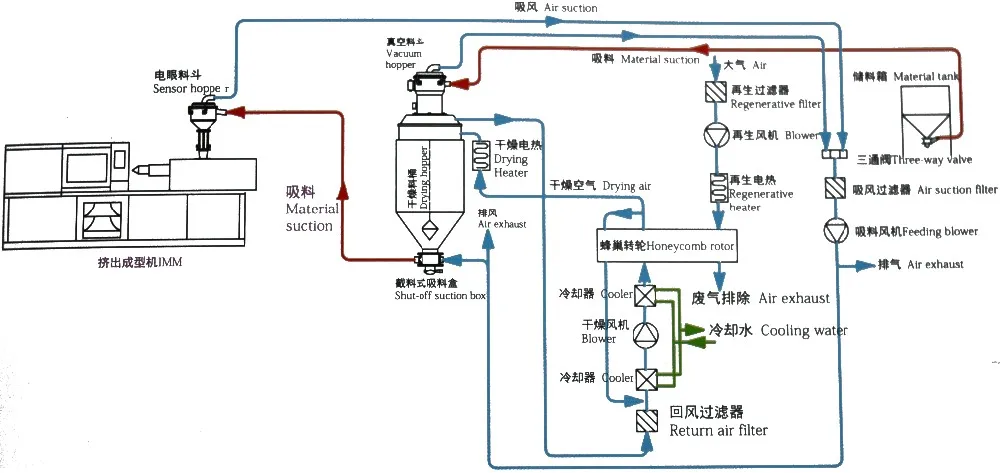

Installation Dlagram
Parameter
Model
SX-D60-25
SX-D80-50
SX-D80-75
SX-D120-75
SX-D120-100
SX-D150-150
SX-D200-200
Dry air capacity
80m³/hr
80m³/hr
80m³/hr
120m³/hr
120m³/hr
150m³/hr
200m³/hr
Dryer hopper
25kg
50kg
75kg
75kg
100kg
150kg
200kg
Drying heater
3kw
3.9kw
7kw
7kw
7kw
11kw
11kw
Renewable electric
3kw
3.9kw
3.9kw
4.5kw
4.5kw
6kw
6kw
Dry blower
0.4kw
0.55kw
0.75kw
0.75kw
0.75kw
1.1kw
1.5kw
Regeneration blower
0.18kw
0.18kw
0.18kw
0.25kw
0.25kw
0.4kw
0.4kw
Absorb blower
1.1kw
1.1kw
1.1kw
1.1kw
1.1kw
1.1kw
1.1kw
Air omlet and outlet diameter
2"
2"
2"
2.5"
2.5"
2.5"
3"
Voltage
Customized
Width
1150
1200
1200
1250
1600
1600
1750
Depth
750
750
750
850
920
920
950
Highly
1600
1650
1880
1880
1650
1760
1960
Model
SX-D300-300
SX-D400-400
SX-D500-500
SX-D700-700
SX-D1000-1000
Dry air capacity
300m³/hr
400m³/hr
500m³/hr
700m³/hr
1000m³/hr
Dryer hopper
300kg
400kg
500kg
700kg
1000kg
Drying heater
18kw
18kw
24kw
30kw
36kw
Renewable electric
8kw
8kw
12kw
14kw
16kw
Dry blower
2.2kw
3kw
3.75kw
5.5kw
7.5kw
Regeneration blower
0.4kw
0.4kw
0.75kw
1.5kw
2.2kw
Absorb blower
1.5kw
1.5kw
2.2kw
3kw
3.75kw
Air omlet and outlet diameter
3"
3"
4"
4"
5"
Voltage
Customized
Width
1750
1800
1800
1800
2100
Depth
950
1050
1450
1450
1600
Highly
1960
1960
2300
2600
2850

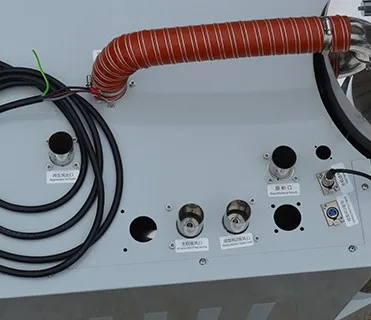

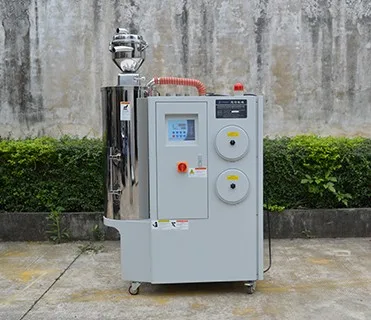

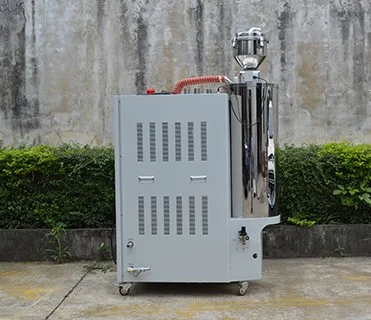

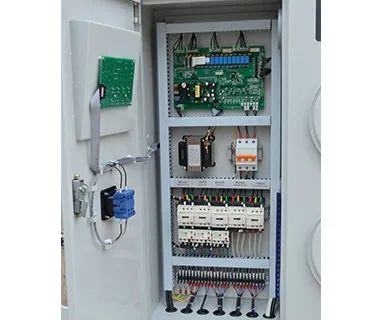

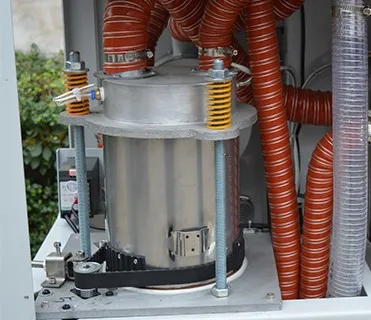

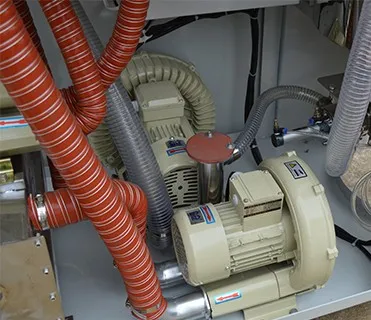

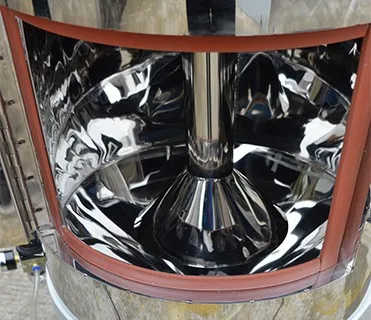

Detall Dlspaly
Packing


1. Multiple packing: Proved by tests of the compression resistance, throwing And highly secured

2. Plywood case packing: High resistance of burst strength, ring crush strength and tearing strength

3. Wooden Frame Packing Damp-proved and high resistance of burst strength and ring crush strength.
