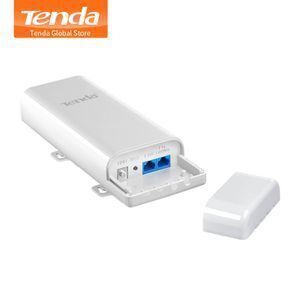

Tenda O3 Wireless Outdoor 5km 2.GHZ 300Mbps outdoor bridge switch 12dBi Antennas Range Wifi Bridge Router Repeater Access Point

Product details
Single gross weight:0.8 KG;Antenna:Built-in 12dBi dual polarized antennas;
Condition:good;Selling Units:Single item;
Product name:Wireless AP;Operation Mode:Access Point - Repeater Mode - Client Mode - WISP Mode;
Single package size:20X8X8 cm;Warranty:1 Year;
Brand Name:TENDA;Wireless Security:64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES);
Dimensions(L X W X H):193*109*61mm;Certification:FCC,ce,RoHS;
Place of Origin:Zhejiang China;Model:O3 Repeater Access Point;
Products Status:Stock;Package Preview:;
Packaging Detail:Product size:9.3 x 3.1 x 2.3 in. (237.5 x 79 x 58.5mm) Weight:0.8KG/PCS ,10KG/CTN Package:10PCS/CTN - CP900 Wireless CPE *1 - PoE Box *1 - Power Adapter *1 - User Guide *1 - Ethernet Cable *1 - Strips*2;Device Type:Wireless Access Point;
Interface:2 * 10 / 100BaseTX interface;



Flow Control

 Support

Internet control

  Internet-based mac address control

Dimension

 270 * 94.86 * 67.5mm

Rate

150Mbps

Frequency

 2.4GHz

                        Protocol standard

  IEEE 802.11b / g / n



  Ethernet interface



  2 * 10 / 100BaseTX interface
Reset key

 1 * Reset key

LED

1 * SYS lamp, 1 * PoE / WAN / LAN shared light, 1 * LAN light, 1 * bridge ligh

 Antenna

12dBi directional antenna

DHCP Server

  Support
AP isolation

 Support

    Client Access Restriction



 Supports wireless client RSSI threshold setting



                     Certification

FCC / CE / RoHS

anxiaobao_3



Product Overview
Tenda O3 5km Outdoor Point To Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features up to 800mW wireless transmission power and has a built-in 12dBi directional dual-polarized antenna which provides an Efficient way to pick up and maintaining a stable signal for a wireless network connection ranging multiple places.



Main Features

  • 2.4G 150Mbps
  • IP64 waterproof enclosure
  • 12dBi directional dual polarized antenna
  • AP, Station, WISP etc operating mode supported

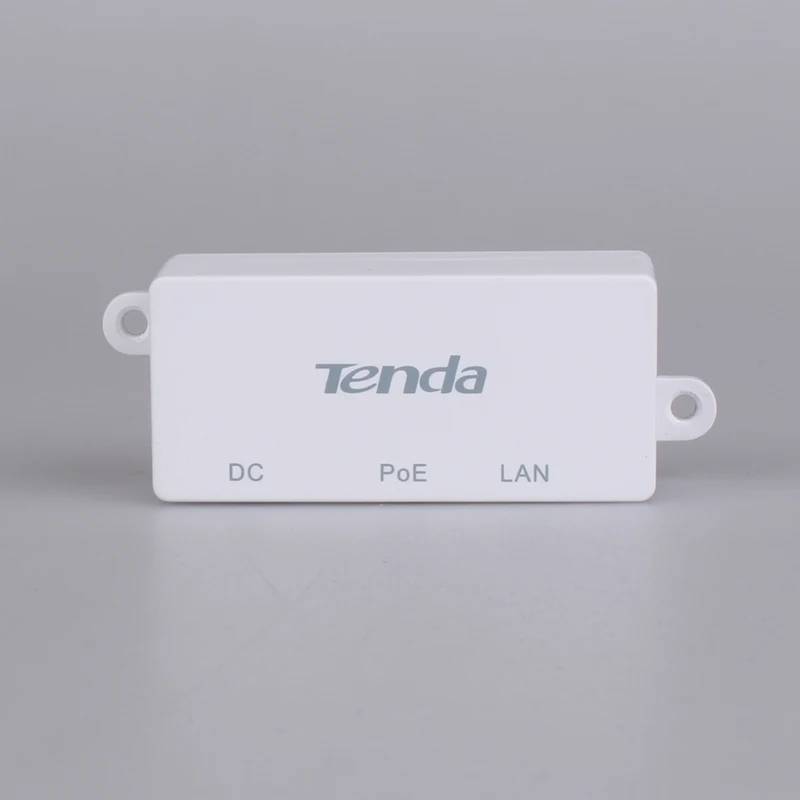

  • Up to 60 meters of flexible deployment with included PoE Injector

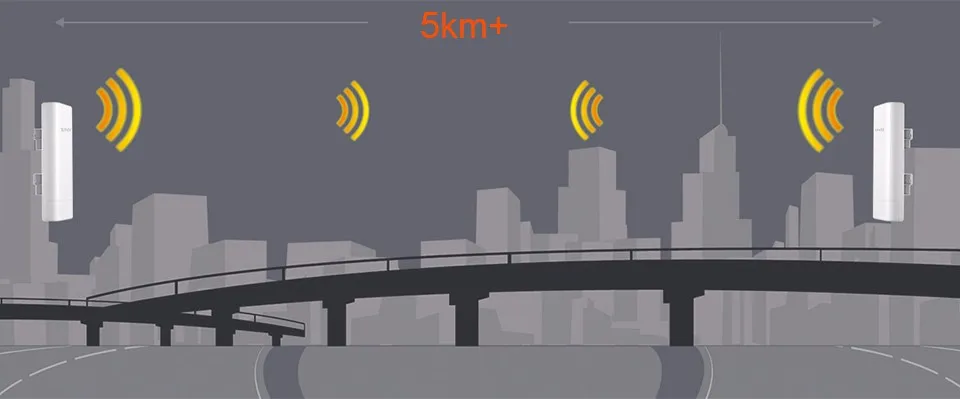

5km + Data Transmission

O3 is designed for outdoor long distance wireless data transmission. Adopting of 800mW external power amplifier and 12dBi directional antenna to achieve 5km + transmission range.

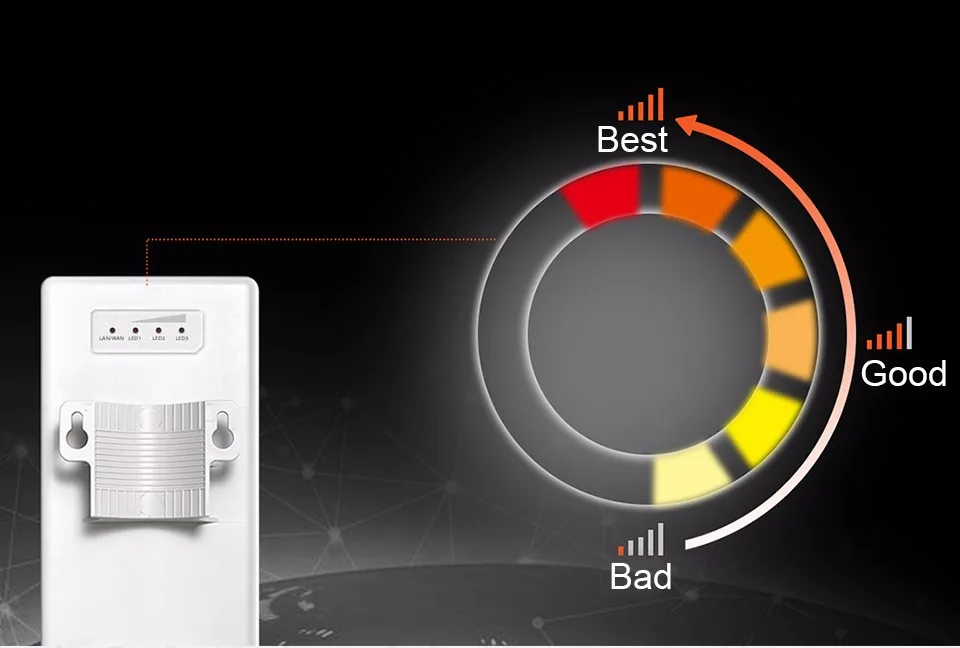

Smart Signal Indicator LED


3 signal LED Lights represent the currently signal strength that O3 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.


Advanced Antenna System



Professional Outdoor Design

Equipped with IP64 waterproof enclouse and 6kV lightning protection capability, O3 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low / high temperature environment.

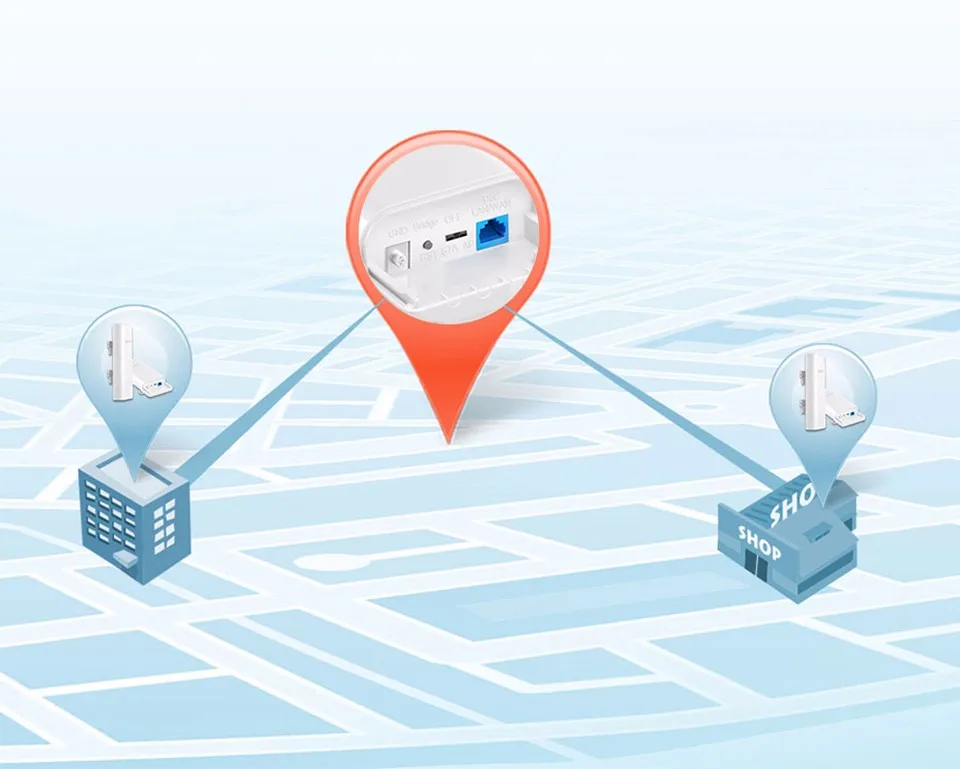

Multiple Application Scenarios

  • Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
  • WISP (Client + Router) Mode
Wirelessly connect to WISP station / hotspot to share Internet to local wireless and wired network.
  • P2MP Link
Link multi AP in a network, all the associated client can communicate with each other.

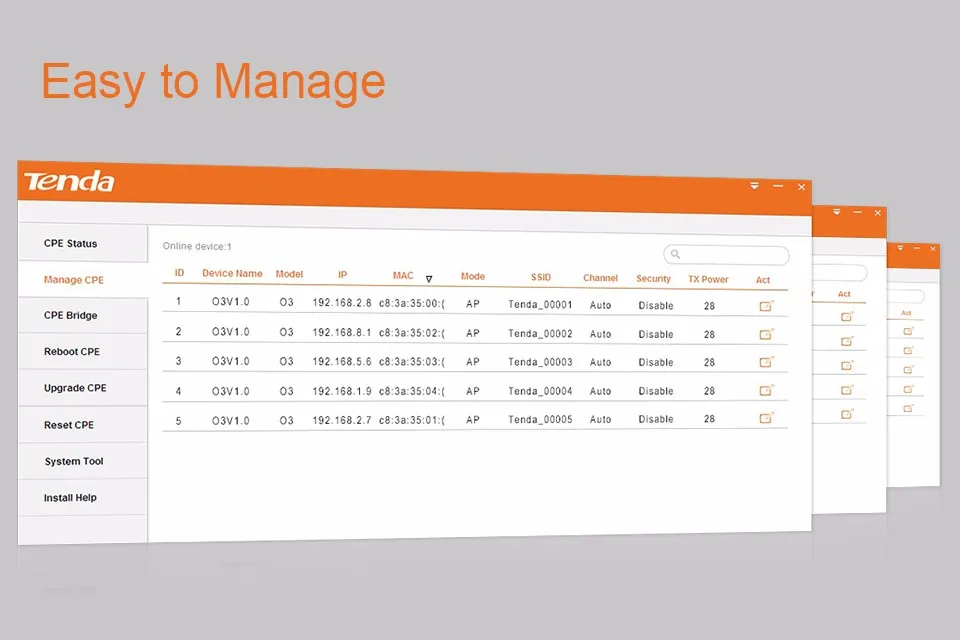

Easy to Manage

O3 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer - CPE Assistant

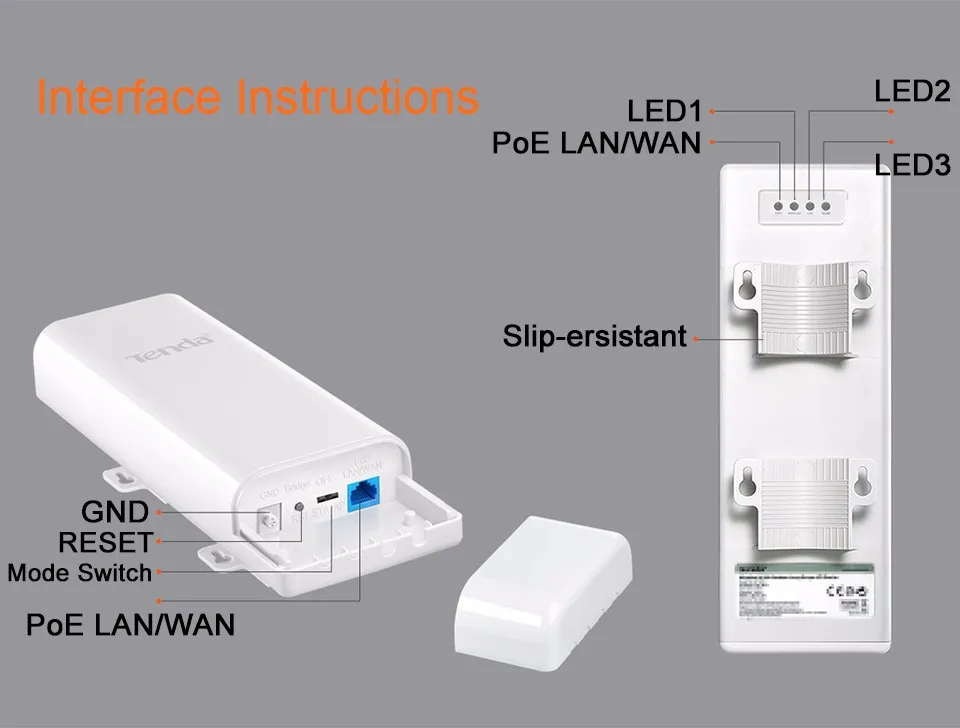

Interface Instructions

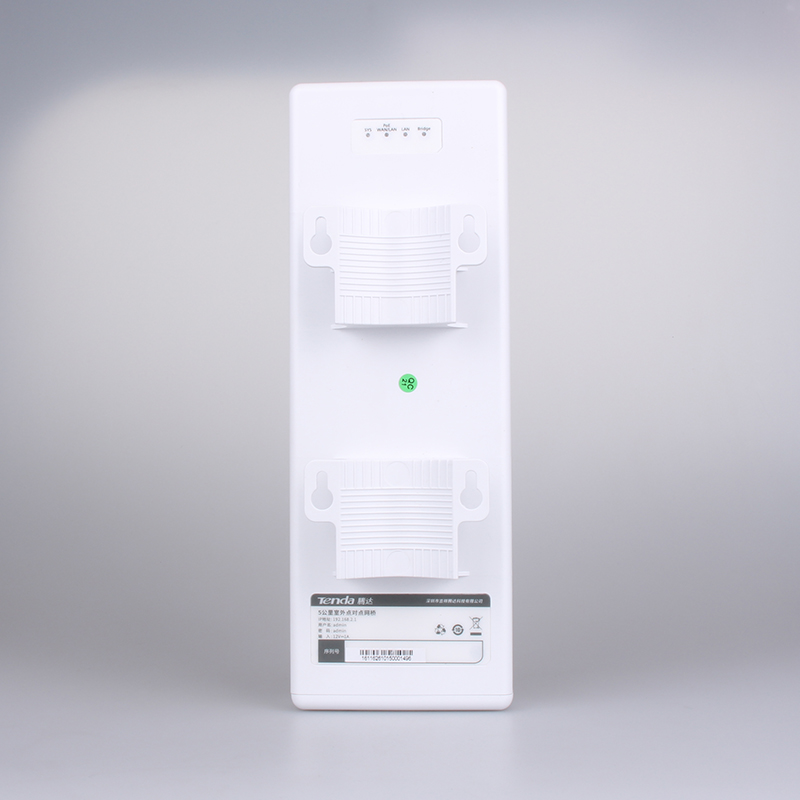

Product Display





Company Information



Packaging & Shipping

FAQ



Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.



Q2: Can you send products  to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70%  before shipment.



Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.



Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
