12v 4ah ytx4l bs mf motorcycle battery manufacturer

Product details
Certificates:ISO9001:2000, ISO14001, ISO/TS16949, CE, ROHS, SONCAP;Packaging Detail:individual carton, wooden pallet;
OEM:Available;Size:114*71*86mm;
Warranty:one years;Supply Ability:240000 Piece/Pieces per Month;
Port:shanghai or ningbo;Place of Origin:Zhejiang China;
capacity/10HR:3ah;Brand Name:TNT;
material:lead acid;Volt:12V motorcycle battery;
Honor:A member of China Accumulator Association, Green Production Enterprise;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Maintenance Type:Maintenance-free;

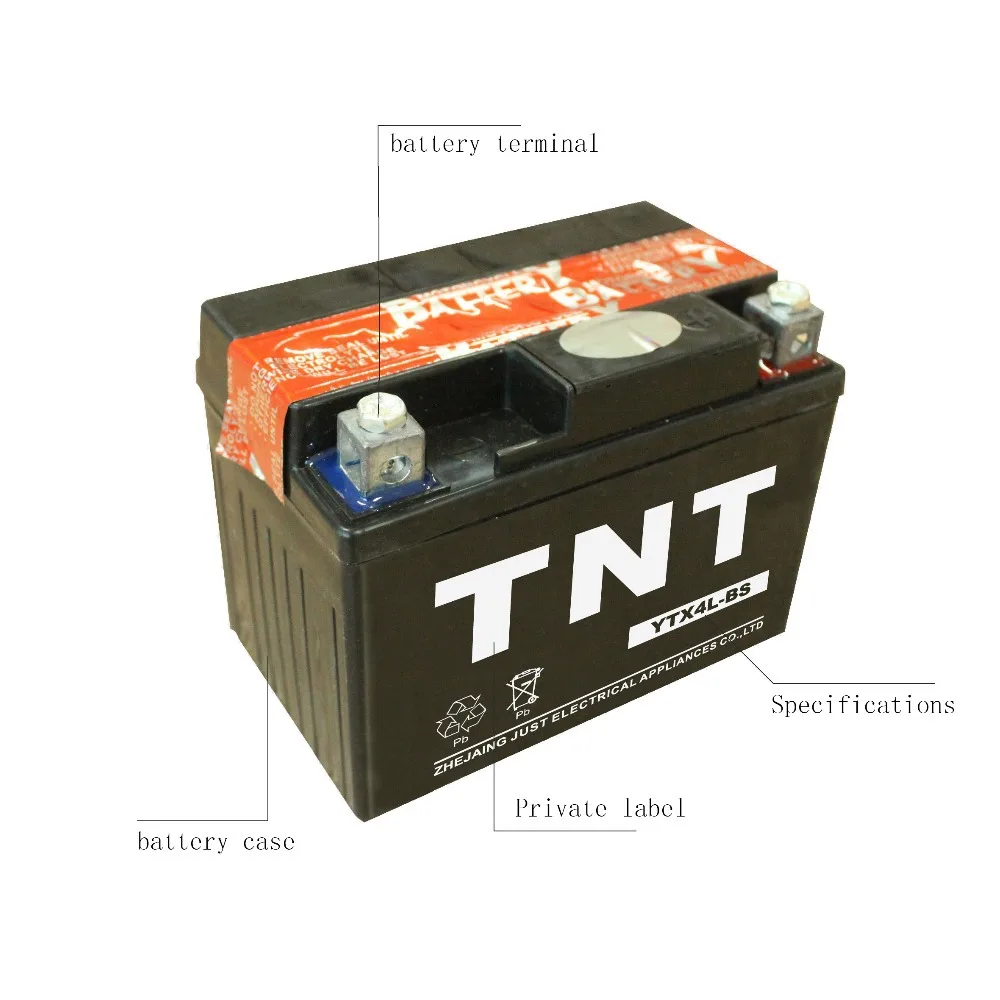

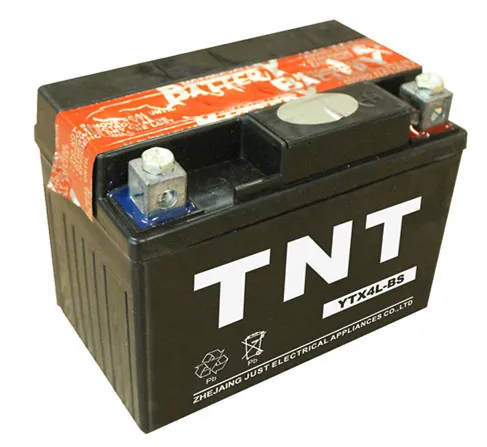

               12v 4ah ytx4l bs mf motorcycle battery manufacturer

Product Description







Item Motorcycle battery
10HR capacity 3AH
size 114*71*86mm
Volt 12v
Weight 1.13kg
Acid Volume(L) 0.192
Regular Charge Current(amp) 0.4

Use

Motorcycle
Company Area 100.000Square meters
Certificate ISO9001, ISO14001, CE, SASO, SONCAP etc
Dimension Custom-made Special Dimension

Employee

over 400

 Product Features:

1.The battery consists of high-performance paste plate, Compound low resistance separators,
high-impact resistant polypropylene plastic tank.

2.Positive plates of lead-based alloy with multiple,high-density lead paste processing, manufacturing,

corrosion resistance, high-rate discharge capacity,good durability.

3.Negative plates with a special formulation and double paste process, excellent low temperature
discharge, charge acceptance ability, anti-sulfate and anti-off-performance

4.Tight assembly, through partition connectors,discharge stable, safe and reliable.

5.Adaptability to temperature, can be -40°C ~ 60°C  under normal use.





 Motorcycle  Battery

+




Advantage



1.High Temperature Resistant



2.Greater vibration resistance



3.Low Self-discharge



4.More 30% Service Battery Life



5.Top Quality Warrant





TIPS:

1.Batteries generate explosive gasses during vehicle operation and when being charged. Flames, sparks,burning cigarettes or other ignition sources must be kept away at all times.

2.When charging batteries, work in a well ventilated area - never in a closed room. Always turn the battery charger or ignition off before disconnecting a battery.



Related Products



+





+
     Model        Demension(mm) Voltage capacity/10HR Weight       Acid        Volume  Regular  Charge  Current
            L*W*H     V         Ah     kg         L      amp
   YTX7L-BS          114*71*131    12          7     1.8     0.348      0.7
   YB4L-B          120*70*92    12          4    1.18     0.33      0.4
   YT4B-BS          114*39*86.5     12         2.5    0.98     N/A        0.3
   YTZ7S          113*70*105    12          6    1.96     N/A        0.6



Precautions

• Always handle batteries with care.

• Always store upright.

• Never over-fill with acid.

• Always charge in a well ventilated place.

• Always wear eye protection when handling batteries.

• Wear protective clothing if there is any rick of acid splashing.



Danger

• Do not use at the places near fire. Hydrogen gas generated from battery may cause fire and explosion.

• This 12v battery is only for starting engine. Do not apply for other uses.

• Keep out of the reach of children or the personnel who do not understand the manual. It may cause blindness or severe burn.

• When using the battery, wear safety glasses and rubber gloves.Sulfuric acid may cause blindness or severe burn.

Warning

• Replacement of battery shall be performed as per following order. If failed, it may cause fire and explosion. Remove cable from negative terminal first.Connect cable to negative terminal last.

• When connect cable to battery, make sure not to get changed post of +and -. It may cause the damage of electronic components or fire.

• When ueing the battery ,handle with care,sulfuric acid may cause blindness or severe burn.

Caution

• When moving battery, be careful not to drop the battery , which is heavy, Do not shake the battery with handle, if there is the handle, It may cause the injury.

• Do not shore the battery at the following places. High temperature and humidity. Being exposed to rain,snow, direct sunshine.



Company Information



 Company Information



Our position in China battery industry:
We have more than 30 years experience on battery industry.
We are the vice president of the Zhejiang Battery Industry Association.
We are  the member of China Battery Industry Association.
We are a global manufacturing company with approximately 102000m² production workshop and than $10 million fixed assets.
Our production capability is 3,700.000 pieces per year and annual production value is $77 million.
Our advanced equipment,quality raw material, precise process management methods and professional technical team generate our high quality products.
We provide good quality and performance but lower price product.




    JUST has also passed ISO/TS 16949:2009,ISO 9001:2008,ISO 14001:2004,GB/T 24001-2004,CE,RoHS,and the International Quality Control System Attestation.



Packaging & Shipping





+
Trade terms FOB CIF EXW
Payment terms T/T,L/C
Delivery time 25- 30 days
Packing   Cartons and Pallet
Shipping By sea
FAQ



 FAQ



Q1: What is your terms of payment?
A: 30% deposit in advance, 70% balance pay off against the copy of bill of loading.We'll show you the photos of the products and packages before you pay the balance.
Q2: What’s kinds of battery will you provide?
A: We have three type battery: There are many different model battery here, we can supply 2v 100ah-3000ah battery, 4v 0.25ah-4v 4.5ah battery, 6v 1.3ah-6v 12ah battery, 12v 0.8ah-12v 250ah battery.
Q3: Operating temperature
A: Discharge: -15--40C
Charge: 0--40C
Storage:-15--40C
Q4: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case, and you can offer your logo.
Q5: How to maintain the battery?
A:The battery should be stored in clean, dry, ventilated, dark environment when not using, keep it after full charge, recharge it every 3 months or 6 months.

Q6: If a battery fails, what will be the indications?
A: 1.Lower performance
2.Low voltage
3.Cannot charge/recharge
4.Swelled container
5.Acid corrosion
Q7: How can you tell if a battery is good or bad?
A: You should first check the battery for defects such as a broken circuit, a short, or a broken container. If an outward problem is not apparent, then you will have to check the battery's capacity using known measuring techniques to ascertain the problem.
Q8: Why "zero voltage" might happen?
A: Zero voltage means there is a broken circuit. There could be several reasons for a zero voltage state.
1.There could be a broken electrode column
2.Welding defects of the partition
3.Welding defects of the terminal
