Home Heating Center Electric Hot Water Boiler for Indoor Heating 90-100 square

Click here to contact

Product details

Packaging Detail:	1) Inner packing : packed by bubble bags. 2) Packing by gift box . The gift box can be used our company design gift box. or we can print it according to your design. 3) Packed by carton box use our company design carton box or we can make it according to your design. 4) As for the logo, manual book, sticker, if the order is large, we can make it according to your design.;	Color:	White;
Funtions:	Constant temperature;	Applicable Industries:	Hotels,Manufacturing Plant,Home Use,Retail,Construction works ;
Output:	HOT WATER;	No:	B12-2;
Core Components:	NoEnName_Null;	Fuel:	electrical;
Warranty:	1 Year;	Port:	Xiaolan/Foshan/Guangzhou/Shenzhen;
Pressure:	Low Pressure;	Video outgoing-inspection:	Provided;
Supply Ability:	20000 Unit/Units per Month;	Heating Elements:	Cast Aluminum Heating Element;
Local Service Location:	None;	Place of Origin:	Guangdong China;
Application:	Household;	Usage:	household;
Certification:	ISO9001;	Dimension(LWH):	550350160 mm;
Brand Name:	Anlabeier;	Voltage:	220V/380V;
Keywords:	Wall hung electric boiler;	Marketing Type:	New Product 2020;
Key Selling Points:	Energy saving;	Material:	Thicker Stainless Steel;
Machinery Test Report:	Provided;	Condition:	New;
Power:	10kW;	After Warranty Service:	Online support,Spare parts;
Type:	Natural Circulation;	Structure:	Water Tube;
Showroom Location:	None;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Steam Production:	Max. 30t/h;	Warranty of core components:	1 Year;
Product name:	Wall hung electric boilers;	Weight:	35KG;
Style:	VERTICAL;

Electric Hot Water Boiler for Indoor Heating 90-100 square

Model	B12- 6KW	B12-8kW	B12-10kW	B12-12kW	B12-12kW	B12-16kW	B12-20kW
Power	6KW 220V	8KW 220V	10KW 220V	12KW 220V	12KW 380V	16KW 380V	20KW 380V
Rated Current	27.27A	36.36A	45.45A.	54.54A	18.18A	24.24A	30.30A
Power cable	3x4mm²	3x6mm²	3x10mm²	3x10mm²	5x2.5mm²	5x4mm²	5x4mm²
Heating Area( m²)	60m²	80m²	100m²	120m²	120m²	160m²	200m²
Size	60x40x26cm

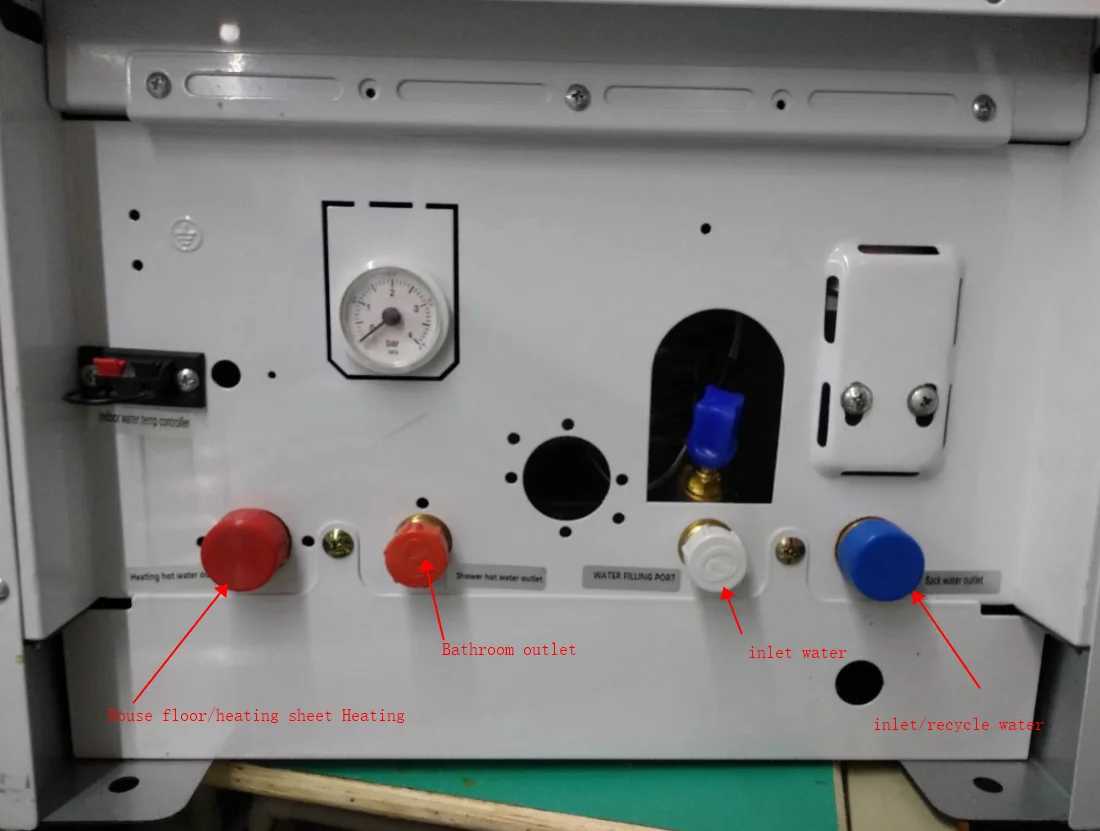

Inlet/Outlet	G3/4
Heater element	Die-cast aluminum heating elelment
Applicable water pressure	Closed installation; 0.05-0.3Mpa
Heating temp. setting	25℃-75℃
Packaging	Yellow carton,1PCS/Master,Carton Size:804550cm,G.W:45KG
Build-in pump and expansion tank

Product Features

Product Details

Packaging & Shipping

Our Products:	Heating element; Water heater spare parts
MOQ:	1.100pcs; 2.Small orders can be acceptable if we have stocks of this product;
Packing:	Standard Export Carton packing; 2pcs/CTN;
Delivery Time:	Shipped in 30 days after payment;
Supply Ability:	30000 sets per year;
Payment Terms:	LC,TT,DP,DA, etc;
Shipping way:	Shipping by sea; Port of Loading:Shanghai, Ningbo, Guangdong
