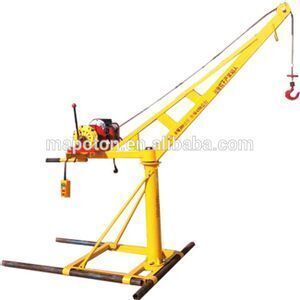

500kg Small Construction Lifts monkey crane mini lift concrete lift

Product details
Lifting Height:2.1/2.3m;Delivery Time:varied based on quantity;
Brand Name:TIANYU;Voltage:Customized;
Packaging Detail:Nylon bag for 500kg Small Construction Lifts monkey crane mini lift concrete lift;Usage:Construction Hoist;
Product name:500kg Small Construction Lifts Electric mini Winch for Construction;Warranty:1 Year;
Stretching Distance:0.9-1.05m;Sling Type:CABLE;
Supply Ability:100000 Set/Sets per Month 500kg Small Construction Lifts monkey crane mini lift concrete;Applicable Industries:Building Material Shops,Construction works ;
Type:fixed;Height of Ceiling:2.65-3m;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,500kg Small Construction Lifts monkey crane mini lift concrete;Lift Speed:12-36m/m;
Condition:New;Capacity:400-600KG;
Certification:ISO9001, CE;Place of Origin:Hebei China;
Color:customized;Port:Qingdao, Tianjin;
Power Source:Electric;Application:Farm, construction, indoor decoration;
After-sales Service Provided:No after-sales service;

    CE  500kg Small Construction Lifts monkey crane mini lift concrete lift





 Merits



1.Two ropes available due to Pulley and loop (installed on the rotatory arm) available

2. Arm being of omnidirectional  rotation, easy and labor-saving operation

3.Engine of electromagnetic brake , more safe

4.Two phase engine with automobile clutch, fast drop goods, highly improving work efficiency

5.Rotating parts coming along automatic positioning device, more safe



6. Strong soldering, soldering parts without sand hole, more safe



7.Electrostatic spraying for the stand surface, similar to automobile painting, long working life. Exquisite outlook, more attractive

8. Rotatory arm directly put into round column, easy installation and dismantle, moved convenient







Technical Data



Loading(KG)Lifting Speed(M/M)Power(KW)Steel Wire Rope Φ(MM)Steel Wire Rope Length(M)Stetching Distance(M)Voltage(V)Working Height(M)
400/60012-361.35/1.8/1.85/2.3/3.05.0/6.0/7.725 or Customized1.1/1.3220  or Customized2.1/2.3







Material: common carbon steel Model NO  Q235(higher than national standard)

Soldering:Strong soldering, soldering parts without sand hole, more safe

Painting:Electrostatic spraying(similar to automobile painting),exquisite appearance

Pillar Thickness: 3.5mm

Rated Loading Capacity: 400KG, experimental loading 550KG, more safe

Arm Rotation Angle: 360

Safety: automatic positioning device, preventing the arm swinging









1.  Engine With Car Clutch Advantage(patent):

1) power-saving: dropping without power supply

              2)    working efficiency: highest,  neutral gear fast drop

                  3)  safety: Drop goods regardless of  power failure

4)Stress Reinforcement System: pressing green button to lift when power is instable





2.Aluminum Case Engine(patent):

1) environmental- friendly: mute motor, slightest noise

2) fast speed: Max 20M/Min

3) Wide loading capacity: 300-1000kgs

            4)Stress Reinforcement System: pressing green button to lift when power is instable







Hardware& Construction Equipment Fair



















FAQ



1.Q:Are you the direct factory?

   A:Yes, we are the direct factory for 24 years.

The address is : NO. 18 South Road, NO. 2 West Ring, Donglv Industry Zone, Qingyuan District, Baoding         City, Hebei Province, China. Sincerely welcome to come and visit!

2.Q:MOQ for  Single Beam Crane Electric?

   A:One set is ok.

3.Q:Can you accept payment terms?

  A:T/T,Western union,Trade assurance,Credit card,etc.

4.Q:Delivery time?

    A:If in stock,1~3 days;If not in stock,normal 5~15 days ;



5.Q:Warranty for  Single Beam Crane Electric?

    A:One year for the whole machine .

6.Q:Do your products can be customized?

  A:Yes,our all kinds of electric winch can be customized design according to each client's demands.

7.Q:What kinds of certificates about your products?

   A:Normally,we have CE,BV,SGS,CUTR certificates,of course our products make some other certificates according to our clients' specific requirements.
