Port: | Shanghai; | Video outgoing-inspection: | Provided; |
Place of Origin: | China; | Warranty of core components: | 1 Year; |
Warranty: | 1 Year; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |
Weight: | 265KG; | Core Components: | Engine,Motor; |
Local Service Location: | None; | Machinery Function: | Peeling and Cleaning; |
Power: | 3KW; | Supply Ability: | 100 Set/Sets per Month; |
Type: | Washer Peeler; | Applicable Industries: | Hotels,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant; |
Application fields: | Fruit processing plant,Vegetable processing plant; | Machinery Test Report: | Provided; |
Usage: | 2000-4000kg/h; | Key Selling Points: | High Productivity; |
material: | Stainless Steel; | After-sales Service Provided: | Online support; |
Dimension(L*W*H): | 2300*850*820MM; | After Warranty Service: | Online support; |
Voltage: | 380V; | Function: | Washing and peeling; |
Application: | Fruit and Vegetables; | Package Preview: | ; |
Washing type: | Brush washing type; | Packaging Detail: | Wooden box; |
Certification: | CE; | Marketing Type: | Ordinary Product; |
Raw material: | Fruit,Vegetables; | Showroom Location: | None; |
Brand Name: | LIGONG; |
Product information
This machine is designed according to the urgent needs of the development of vegetable and fruit food processing industries It is designed for cleaning and peeling carrots, ginger and related hard vegetables. Washed and peeled, with simple structure, practical, easy to use and operate, disassembly and replacement Easy fittings and beautiful appearance.
Principle
When the material enters the horizontal rotating brush roller, the brush roller repeatedly does not stop. Rub each other in the same direction of rotation (from high to low) to achieve the purpose of cleaning and peeling

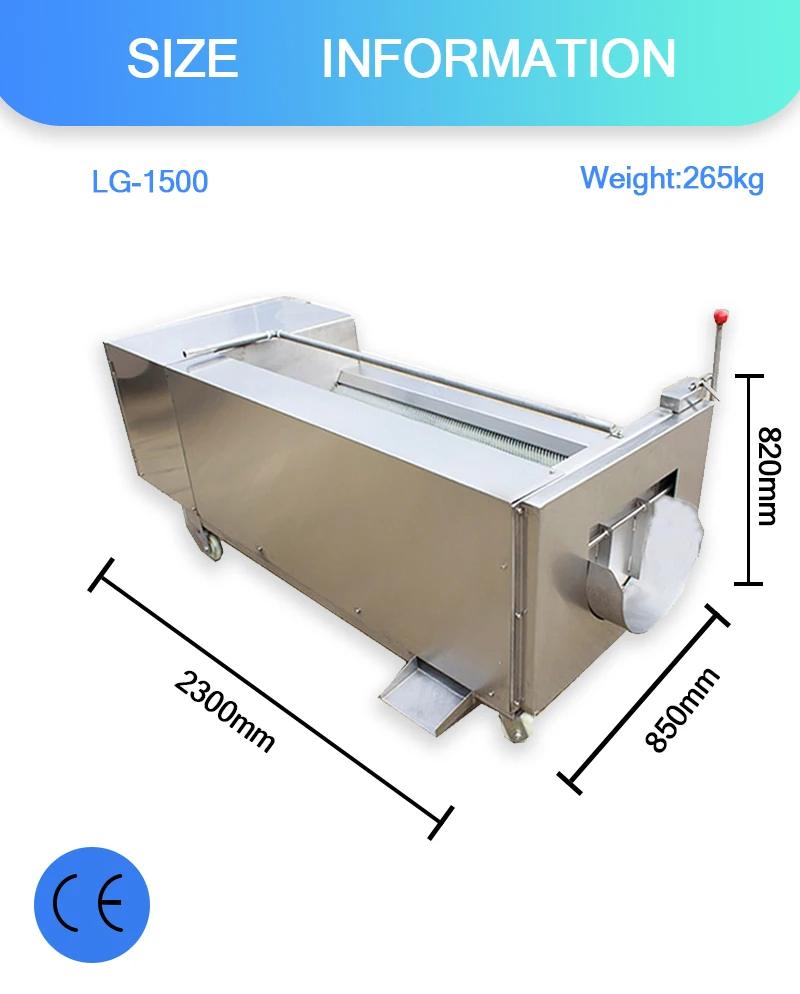

Technical parameters
Model |
Dimension (mm) |
Export Size (mm) |
Import Size (mm) |
LG-1500 |
2300*850*820 |
Φ300(semicircle)*280 (from the high) |
520*1500 |
Weight (kg) |
Capacity (kg) |
Power (kw) |
Brush size (mm) |
265 |
2000-3500 |
3 |
Φ125*1500 |
The number of brush |
Length of brush silk (mm) |
Work noise |
Texture |
10 |
16 |
70db |
304 stainless steel |
Precautions for use
1. After normal operation, feed water and feed, open the door to discharge, and operate one bucket after another
2. How much material should be added, and the brushing time should be determined according to the material variety and quality.
3. There should be no bricks, stones and other debris in the materials.
