Brand Name: | Tyrone; | Application injection machine: | 10-20oz; |
Certification: | ISO9001/CE; | Place of Origin: | Guangdong China; |
Capacity: | 50kg; | Packaging Detail: | 1.Pack with plastic film and paper case; 2.Pack with wooden case; 3.Pack with plywood case.; |
Weight: | 68KG; | Voltage: | 380V/50HZ 3phase (as Customer Requests); |
Warranty: | 1 Year; | Keyword: | recycled plastic dryer; |
Port: | Guangzhou; | Supply Ability: | 800 Set/Sets per Month recycled plastic dryer; |

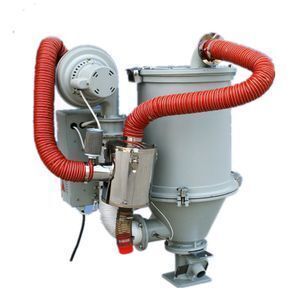

Product name: | High capacity 68kg recycled plastic dryer for sell; | Dimension: | 955*605*1340mm; |
Feature: | Smooth surface, good thermal insulation; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
After-sales Service Provided: | Overseas service center available,Engineers available to service machinery overseas,Overseas third-party support available; | Electric Heat: | 6.5kw; |
Condition: | New; | Fan power: | 250w; |
Features of tyrone hopper dryer machine:
1.Uniform hot air distribution,high heat,significantly shorten drying time.
2.Double overheating protection device can reduce people malfunction or accident.
3.Precision die-cast aluminum housing,smooth surface and good performance for keep temperature.
4.Installed with proportional deviation display thermostat to control temperature accurately .
5.Dryer temperature reaches 120-160°.
6.Hopper dryer contact parts are made of stainless steel .
7.High-temperature types from 50 to 1000kg are available,with double-walled hopper tank, stainless steel heating tube and high-temperature blower.

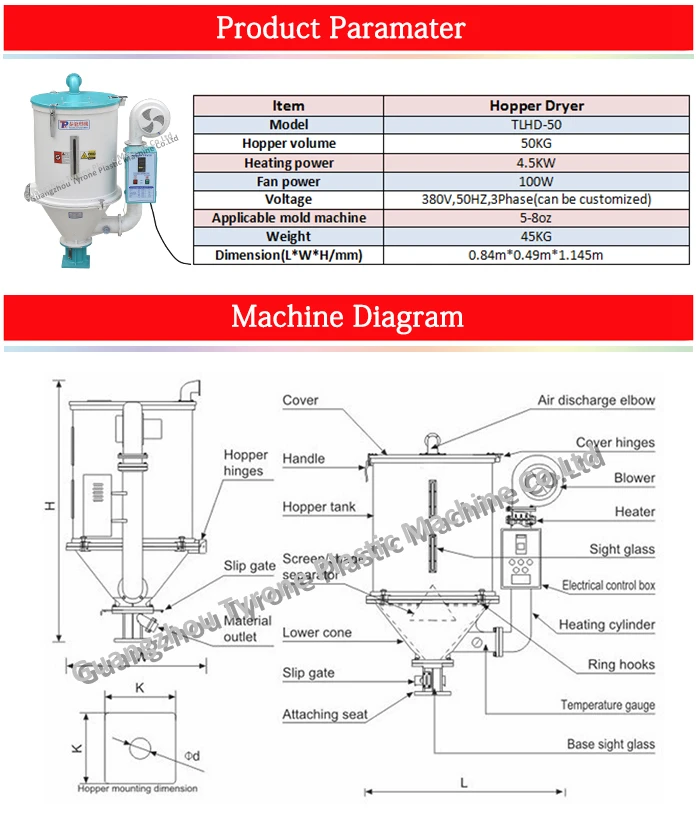

Model | TLHD12 | TLHD25 | TLHD50 | TLHD75 | TLHD100 | TLHD150 | TLHD200 | TLHD300 | TLHD400 | TLHD600 |
Volume/kg | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 600 |
Electric Heat/kw | 1.8 | 3.5 | 4.5 | 6.5 | 6.5 | 9 | 12 | 15 | 18 | 21 |
Fan/w | 50 | 90 | 100 | 250 | 250 | 350 | 350 | 750 | 750 | 1100 |
Power/v | 220/1 | 220/1 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 |
Weight/kg | 26 | 35 | 45 | 56 | 68 | 100 | 130 | 160 | 170 | 280 |
Applicable machines | 1oz | 3oz | 5-8oz | 8-15oz | 10-20oz | 20-25oz | 20-30oz | 30oz | 30oz | 30-50oz |
Dimension (l*w*h/mm) | 660 x 360 x 865 | 725 x 405 x 1015 | 840 x 490 x 1145 | 900 x 550 x 1240 | 955 x 605 x 1340 | 955 x 605 x 1580 | 1260 x 770 x 1580 | 1230 x 770 x 1985 | 1365 x 915 x 2105 | 1365 x 950 x 2530 |
