Fuel Type: | Diesel; | Loading capacity: | 10 ton; |
Size: | 7690x2470x2790mm; | Gearbox: | A130 Mechanical 6 speed gearbox; |
Front axle: | 3.5 ton; | 4x4 vehiculos militares: | dongfeng 4x4 truck; |
Horsepower: | 150 - 250hp; | Packaging Detail: | Nude Cargo Anti-Rust by Wax; |
Displacement: | 5.9L; | Rear axle: | 9 ton; |
Transmission Type: | manual; | Supply Ability: | 1000 Unit/Units per Month; |
Capacity (Load): | 1 - 10t; | Drive Wheel: | 4x4; |
Engine Capacity: | 4 - 6L; | Payment Terms: | L/C,T/T; |
After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Online support,Free spare parts,Field maintenance and repair service; | Place of Origin: | Hubei China; |
Engine: | B170-33; | Brand Name: | Dongfeng; |
Product name: | dongfeng 4x4 truck; | Emission Standard: | Euro 3; |
Top speed: | 90km/h; | Gross Vehicle Weight: | 11000; |
Condition: | New; | Port: | Any Port Of China; |

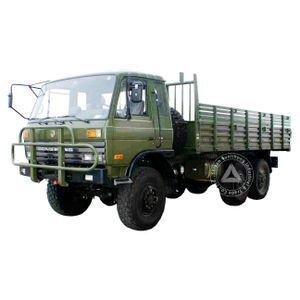

Dongfeng 4*4 6x6 off road lorry cargo truck vehículos truck for sale
Configuration | |||
Cab | Single sleeper | Drive type | 4x4 |
Engine | B170-33 /B190-33 | Transmission | A130/A135 (6 speed) |
Front axle (t) | 3.5 | Rear axle (t) | 9 |
suspension | leaf spring | Tire | 10.00R20 |
Technical Parameters | |||
Overrall dimension(mm) | 7690x2500x3070 | Wheelbase(mm) | 4500 |
Cargo size(mm) | 5300x2350x800 | Approach/departure angle(°) | 35/34 |
Wheel tread(mm) | 1876/1870 | Curb weight(kg) | 5310 |
G.V.W(kg) | 10495 | Top speed(km/h) | 90 |
Maximum gradeability(% ) | 60 | Minimum ground clearance (mm) | 305 |
Minimum turning radius(m) | 18.8 | Fuel consumption(L/100km) | <26.5 |
Chassis and other | The chassis is equipped with hydraulic clutch assist, hydraulic steering assist, exhaust brake, multi-loop air brake system | ||
The chassis is equipped with front and rear tow hooks; the chassis is equipped with tools and accessories and fire extinguishers. | |||
Cab | 1, Equipped with a seat belt, the seat is adjustable front and rear, the backrest angle is adjustable; | ||
2, Cab equipped air conditioner; | |||
3, The cab is equipped with FM radio, audio player and wiper; | |||
4, The combination meter can display vehicle parameters such as engine water temperature, engine speed, vehicle speed and air pressure.; | |||
Drive type | Time-sharing four-wheel drive with differential lock between wheels and differential lock between axles; | ||
Vehicular applications | Suitable for emergency maintenance of vehicles under various complicated road conditions such as sand, gravel, jungle and mud |
Other models:
1. Shiyan Yunlihong Industrial&Trade CO.LTD is a supplier of commercial vehicle customization solutions integrating R&D, production and sales.
2. At present, we have independently developed and produced 5 categories of products and formed a series of vehicle design platforms.
4. We are an overseas exporter of Dongfeng Commercial Vehicle, Exports all models of Dongfeng commercial vehicles, The annual export scale reaches 300 units.
5. At present,we have established perfect after-sales guarantee system in Africa,Asian,South American,and Oceania to meet the customer's after-sales needs.
Learn more about YUNLIHONG >>
Dongfeng Motors Group Co., Ltd. is a Chinese central enterprise directly under the State Council's State-owned Assets Supervision and Administration Commission, ranks 65th in the world's top 500 companies. Dongfeng commercial vehicle co. LTD is located in Shiyan.Hubei.
Learn more about DONGFENG >>
Cooperation with professional logistics companies, device the most reasonable and complete vehicle logistics solution together.
Including a series of integrated solutions such as packaging, fixing, ship selection, arrival notification, customs clearance and so on. What we can do :
1. Develop a scientific shipping plan,helping buyers save logistics costs, increasing revenue from the source.
2. Standardize the shipping process, maximum protection of goods.
3. Attentive service, reducing buyer’s working time to enjoy the life.
