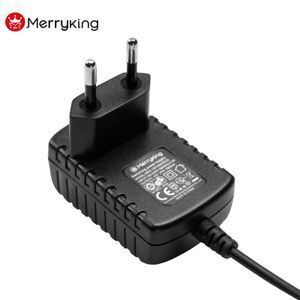

AC DC Adapter 12V Switching Power Adaptor 5V 7V 9V 12V 15V 18V 0.5A 1A 1.5A 2A 2.5A 3A

Supplier: Shenzhen Merryking Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Nikki Xiang
Price: $0.72 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Warranty:	3 YEARS;	Supply Ability:	500000 Piece/Pieces per Month;
Power:	12W;	Port:	SHENZHEN;
Type:	US/EU/UK/AU Plug In and Wall Mount type;	Model Number:	MKS-1501000H;
Place of Origin:	Guangdong China;	Certificate:	CE/GS/CB...;
Output voltage:	12V;	Product Name:	AC DC Adapter;
Color:	Black or White;	Brand Name:	MERRYKING;
Output Type:	DC;	Output current:	1000mA;
Input voltage:	100~240V 50/60Hz;	Connection:	Plug In;
Efficiency:	DOE VI;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal,Wire,etc;
Packaging Detail:	1pcs/white box 144PCS/CTN Carton size: 38.5x37x32.5cm N.W.: 10.5KGS G.W.: 12.5KGS;

Product Description

Product Description

Models	O/P Voltage	O/P Current
MKS-0332000HEU	3.30V	2.00A
MKS-0501500HEU	5.00V	1.50A
MKS-0502000HEU	5.00V	2.00A
MKS-0601500HEU	6.00V	1.50A
MKS-0751000HEU	7.50V	1.00A
MKS-0901000HEU	9.00V	1.00A
MKS-1201000HEU	12.0V	1.00A
MKS-1500800HEU	15.0V	0.80A
MKS-1800500HEU	18.0V	0.50A
MKS-2400500HEU	24.0V	0.50A

Features

·100 to 240VAC Universal Input

·Single Output to 12W Maximium

·Regulated Output with Low Ripple Noise

·Safety Agency Requirements and EMI EMC Certified

·Modified and Custom Design Available

·3 Year Warranty

·White or Black Color

Input

Voltage:100 to 240 VAC

Line Frequency: 50/60 Hz

Current:0.3A Max

Protection:Internal Primary Current Fuse,Inrush Limiting

Configuration:Horizontal case

Output
Load: ±5%(Typical)

Ripple:1-2% Vp-p Max. For Output Voltage@ Full Load

Transient Response:0.5mS for 50% Load Change Typical

Hold-up Time:10mS @Full Load

Protection:Short Circuit Protection,Over Voltage Protection,Over Current Protection
DC Plug According to Customer Requirements

DC Cord: Flat or Round

Ferrite Core:Optional

Safety Approvals

CE/GS/CB

EN60950-1 EN61558-1 EN61558-2-16

IEC60950-1 IEC61558-1 IEC61558-16

Electrical

Topology: Swicthing Flyback

Dielectric Withstand: 3000VAC Primary - Secondary

Leakage Current:0.25mA

Efficiency: CoC ErP Certified

Efficient: EN55022,EN55024,EN55014

Efficient: EN61000-3-2 & EN61000-3-3

MTBF: 100,000 Calculated Hours at 25℃,by Telcordia SR-332

Environmental

Operating Temperature: 0 to +40℃

Storage Temperature:-20 to +80℃

Relative Humidity:Operating:20 to 80% RH,Storage:10 to 90% RH

Cooling:Natural Convection Cooling

Mechanical

Weight:Adapter:75g,White Box:10g

Dimension:For Case:L59*W42*H25 mm; For White Box:L75*W72*H50 mm; For Carton:L370*W310*H250 mm(126 pcs / Carton)

*The shown datasheet is for display .If you need full datasheet and discount,please be free to contact our sales engineers.

Hot Sale Products

List of Hot Sale Products

Wall Mount power adapter

6 Watt

12 Watt

15 Watt

18 Watt

24 Watt

36 Watt

48 Watt

60 Watt

Interchangeable ac plug power adapter

6 Watt

12 Watt

15 Watt

18 Watt

24 Watt

36 Watt

48 Watt

60 Watt

Desktop power adapter

12 Watt

18 Watt

24 Watt

36 Watt

60 Watt

72 Watt

100 Watt

120 Watt

150 Watt

Type–C PD Charger

30w 45w 65w

EU/AU/UK/US plug

UL/cUL/FCC/CE/GS/CB

QC3.0 Charger

Q183

Q301

Q302/Q302-C

Q521/Q521-C

USB Smart Charger

1 USB
2 USB
3 USB
4 USB
5 USB
6 USB

Applications of Adapter Products

Plug In

6W wireless phone,electric towel heater,divider

10W table lamp,hot steam engine,POS machine,set top box,router,Electric pencil sharpener,electric stapler,home appliances

12W speaker,remote monitoring equipment,Woodworking equipment with motor,merryking,humidifier,aroma diffuser,set top box,router,table lamp

15W automatic mop,sweeping robot,humidifier,Woodworking equipment with motor,aroma diffuser,table lamp,home appliances

18W water heater,circulating tank,merryking,breathing water pressure pump,humidifier,home appliances

24W toy,aquarium products,pet supplies,LED light,AV matrix device,smart meter,POS machine,humidifier,home appliances

36W electric curtains,merryking,aquarium products,circulating tank,water purifier,fitness equipment

Desktop
48W LED strip light,mobile charging station,home appliances

60W LED strip light,water distiller,massager,circulating tank,monitor

72W balance car,home use snow remover,LED strip light

90W OEM/ODM

120W mobile charging station,amplifier

150wOEM/ODM

Click to Check MerryKing Full Product ShowCase

Our Premium Service

3 Years Warranty

36 months,for all products

Quality makes that we have enough confidence to offer our clients longer warranty. We are one of the very few companies who offer 3 years warranty in the worldwide market.

Free Samples

1-3 pcs free samples for each model

We can offer you 1-3 free samples for quality and function test before bulk orders.

Faster Reply

Save Your valuable Time

Our professional sales team will give you the fastest reply by Trade Manager, Email, Telephone etc according to your any product inquiries or questions during 24 hours.

Faster Lead-Time

·Production capacity 500,000 PCS per month, short lead time: 10 - 15 working days.

·The fastest delivery

Professional workers and production ability will make sure that the delivery of your order can be finished in time.

Easy Deal

Easy and convenient deal for you

We can offer you any kind of trade terms, including EXW,FOB,CIF,DDU(custom clearance door to door service without taxes) and DDP(custom clearance door to door service with taxes) and also help you to choose the most suitable shipping way to save more time and money.

Safe & Reliable

·You are welcomed to check the quality of goods before delivery.

·With almost all of related certificates

Our products have completely been approved UL,cUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS,PSE,etc.

Our products fully satisfy the safety certifications standard. High product stability,like MTBF=50000?100,000 (Calculated Hours at 25°C )

After-Sale Guarantee Service

You can ask for a refund within 30 days after your receipt of goods We will bear all of the costs if it is because of the quality.Or,we will offer you the new goods as soon as possible.

Shenzhen Merryking Electronics Co., Ltd.

Merryking is a professional manufacturer of AC/DC power adapter and linear transformer since 2005, focusing on power supply designing and manufacturing in Shenzhen China. W e have established our own scientific, intact and efficient quality management system, extending from product designing, raw material control, on-spot production management to after-sale services with constant, stable and reliable quality assurance.

Our Advantage

Professional

14 years’ experience of Power Adapters Production

Merryking is a professional factory specializing in R&D and production of power adapters only,which doesn’t supply any other hot selling electronic products. That is why we can keep advanced skills and stable quality all the time.

Dedicated

Comprehensive Explanation of AC DC Power Adapters

With so many years experience,it took many years for our team to creat a standard book which is used to help our clients to find suitable adapters quickly. The particular specification of each model can help you fully understand what products you need.

Rigorous

·Top Quality Management System

We have a complete quality assurance system and solutions for the products in questions to ensure products quality and our outstanding after sale service.

Reliable

·SGS Certification and Assessed Supplier on Alibaba

We have already passed SGS third-party factory inspection and have been an Assessed Supplier on Alibaba.

·AQL Acceptance Standards

The final inspection shipments will be in strict accordance with the AQL acceptance standards.The power adapter shall be burnt for 4 hours under normal input and 80% rated load at 40°C +/- 5 °C

·Your smart choice

We believe that we can meet with success only if our clients did it. We sincerely hope that we can achieve a win-win situation together.

We provide more care for your business!Click Here to learn more..

Certifications

Phenomenon	Standard
EMC	EN 55022:2010
	EN 55024:2010
	EN 61000-3-2
	EN 61000-3-3
CE	EN 60950
	EN 61558
	EN60335
GS	EN 60950
CB	EN 60950
UL/cUL	UL 60950 (UL No.: E361658)
FCC	47 CFR FCC Part 15 Subpart B:2013
	ANSI C63.4:2009
PSE	J60950 / J55022/J55023/J55024
SAA	AS/NZS 60950
IRAM	IEC60950 / IRAM 2063/2067:2009

Our products have passed most safety approvals in the world, including

UL, cUL, FCC, PSE, GS, CE, BS, RoHS, REACH, SAA, CCC, C-tick, CB, IRAM, S mark, NOM, EAC, etc.

FAQ

Question : What is the main product of your company ?

Answer : 1. AC DC Power Adapters 2. USB Smart Charger 3. QC charger

Question : What certificates do you have ?

Answer : Our products have completely been approved UL,cUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS,PSE,etc. In order to make you fully understood the quality of our products,we would provide you with related certifications on your request.

Question : What`s your MOQ?

Answer : There is no MOQ and you are welcomed to order any amount.But you will get discount price for bulk order.

Question : Would you give me more details about the price of your products ?

Answer : We believe our quality and price are very competitive in worldwide market and We promise to offer you best cost-efficient products with higher quality.

Question : How can I get the matched adaptor production with only requirements/description ?

Answer : Ok Dear client, We`ll introduce you the matched products

according to your descriptions. Please kindly CLICK HERE to describe your requirements with following necessary tips :

a. What's the input please? Example:100-240VAC, 50/60Hz2

b. What's the output, please? Example: 5V DC 2A

c. What certificates do you need ?Example:UL+FCC needed

The more details you provide,the faster we could provide you with the corresponding products.

Question : I saw your company is with much experience in adapter field.Will I get better products than I expected under your guidance/suggestions ?

Answer : We aim to support our dear clients ,to achieve Your successful business with products quality and competitive price ,as well as 3 years warranty (longer warranty in this filed).

Also, we will offer you more necessary experience for free. For example,a.If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .b. If your product belong to medical device ,the quality standard should be IEC 60601 ,if your product belong to IT device ,the quality should be IEC 60950.

Question : What payment term do you accept please ?

Answer : We accept T/T,L/C,D/P,Western Union paypal etc.
