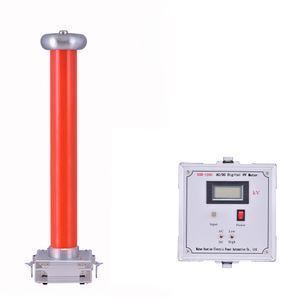

SGB-C 200kV AC&DC Digital Voltage Divider High Voltage Meter

Product details
Accuracy Class:AC:1.0% DC:0.5%;Temperature:0~40℃;
Model Number:SGB-200C;Dimensions:250*250*1330;
Packaging Detail:carton or wooden case;Supply Ability:60 Set/Sets per Month;
Place of Origin:Hubei China;Low voltage:0-20kV;
Operating Temperature:0~40℃;Humidity:≤85%RH;
Brand Name:Huatian;Port:wuhan/shanghai;
Insulating medium:dry type dielectric material;Product Name:AC DC HIigh Voltage Meter;
Warranty:1 Year;Divider divider ratio:1000:1;
Voltage level:50kV,100kV,150kV,200V,30kV;Display Type:Digital Only;
AC measuring method:real effective value measurement;Measuring Range:0-200kV;
Accuracy:AC:1.0% DC:0.5%;Payment Terms:L/C,Western Union,T/T;





Brief introduction

This series products are general purpose HV measuring instruments, apply in power system, Electronic Equipment Factory to test frequency AC high voltage and DC high voltage.

This product is composed by HV measuring part and LV display instrument. HV part and LV display instrument are separate when working, it is safe and reliable.

This series product adopt portable structure, the complete appliance uses aluminum packing chest as cabinet, easy to carry and use.

Products features

  1. 1.   High precision

Adopt precision high-voltage film capacitors and precision glass glaze resistors, high input impedance, reducing the test current, low power consumption, improve the instrument's measurement precision and stability;

Signal processing part, using high-performance OP to amplify signal, using the latest technology dual integral AD sampling, four semi-liquid crystal displays, the highest resolution reaches 0.001kV, it is the upgrading production of static high voltage meter

  1. 2.   Good anti-jamming performance

Adopt special shielding technology. The surface of equalizing ring is smooth and glossy, effectively improve the electric field distribution around the equalizing ring to prevent point discharge, improve the anti-jamming capability of measurement data. The voltmeter adopts all-metal enclosed structure shielding, using high quality coaxial cable connect HV divider with the voltmeter, reduce the impact of HV on the indication values, so as to achieve high stability, high linearity

  1. 3.   Safe and reliable

The instrument is composed of high-voltage divider and voltmeter, high voltage divider using DuPont filling materials, special casting process, smaller in structure, lighter in weight, to minimize internal partial discharge , higher reliability. There is no leakage problem. When working, use high quality coaxial cable connect HV divider with the voltmeter, safe and reliable

  1. 4.   Simple operation

Adopt DIP switch to switch high voltage and low voltage, AC and DC, convenient and quick. Four semi-liquid display direct shows measurement result, simple and intuitive. It is convenient for on-site testing work

  1. 5.   Easy to carry

Use portable structure, the whole chassis with aluminum box can be easily dismounted. Small in size, light in weight, easy to carry, easy to use

Product parameters



Ratio

1000:1

Accuracy

AC:1.0%,DC:0.5%

Insulating medium

dry type dielectric material

AC measuring method

real effective value measurement

Condition of circumstance

Temperature

0~40℃

Humidity

≤85%RH

Dimension (50C)

200*200*550mm3

Weight

6.3kg

Dimension (100C)

200*200*850mm3

Weight

8.2kg

Dimension (150C)

370*270*1030mm3

Weight

14kg

Main Specifications
