Payment Terms: | L/C,T/T; | Packaging Detail: | None; |
Type: | Dry Container; | Brand Name: | OEM / CIMC; |
Place of Origin: | Fujian, China; | Internal Dimensions(l x W x H)(mm): | 12032 x 2352 x 2698 mm; |
Certification: | ABS, BV, LR, CCS, RINA, DNVGL; | Capacity: | 76.4 CBM; |
Supply Ability: | 8000 Unit/Units per Month; | Port: | Xiamen; |
Length (feet): | 40'; | Port: | Xiamen; |
External Dimensions(l x W x H)(mm): | 12192 x 2438 x 2896 mm; |

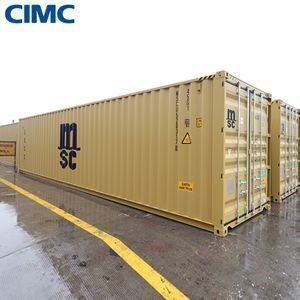

40HC dry cargo shipping container | |||
| Dimension | MM | FT |
External | Length | 12,192 | 40' |
Width | 2,438 | 8' | |
Height | 2,896 | 9'-6" | |
Internal | Length | 12,032 | 39'-5 45/64" |
Width | 2,352 | 7'-8 19/32" | |
Height | 2,698 | 8'-10 7/32" | |
Door Opening | Width | 2,340 | 7'-8 1/8" |
Height | 2,585 | 8'-5 49/64" | |
| |||
Inside Cubic Capacity | 76.4 m³ | 2,700 FT³ | |
Maximum Gross Weight | 32,500 KGS | 71,650 LBS | |
Tare Weight | 3,700 KGS | 8,160 LBS | |
Max Pay Load | 28,800 KGS | 63,490 LBS | |
Stacking Test Load | 97,200 KGS | 214,290 LBS | |
Floor Strength | 7,260 KGS | 16,000 LBS |
| External | Internal | m³ | ||||
Type | Length | Width | Height | Length | Width | Height | Internal Volume |
20GP | 6058 | 2438 | 2591 | 5898 | 2352 | 2393 | 33.2 |
20HC | 6058 | 2438 | 2896 | 5898 | 2352 | 2698 | 37.4 |
40GP | 12192 | 2438 | 2591 | 12032 | 2352 | 2393 | 67.7 |
40HC | 12192 | 2438 | 2896 | 12032 | 2352 | 2698 | 76.4 |
45HC | 13716 | 2438 | 2896 | 13556 | 2352 | 2698 | 86 |
