brake motor rectifier

Supplier: Wuhu Dazhong Machinery Electric Manufacture Co., Ltd.
Region: Anhui, China
Contact: Ms Julia Mao
Price: $7.00 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Package Type:	Surface Mount;	Mean On-State Current:	2A;
Input voltage:	220v-460v;	Brand Name:	dazhong;
Packaging Detail:	brake motor rectifier,carton or wooden case as package;	Application:	Automobile;
Product name:	brake motor rectifier;	Package Preview:	;
Selling Units:	Single item;	Place of Origin:	Anhui China;
Max ambient temperature:	70 degree;	Single package size:	10X10X5 cm;
Type:	Bridge Rectifier;	Model Number:	ZLKS;
Certification:	ISO9001 CE;	output voltage:	99v-207v;
Single gross weight:	1.0 KG;	Max current:	3A;

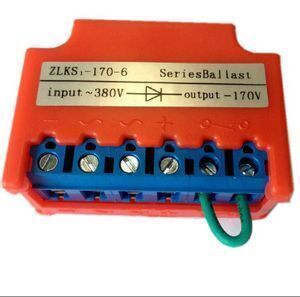

brake motor rectifier:

ZLk series for DC power bridge rectifier electromagnetic brake and clutch electromagnetic DC-specific products, which is converted into AC power will be able to meet the DC or direct current electromagnetic brake electromagnetic clutch DC power needs. Factory production line ZLk power rectifier complete specifications, the applicability of the strong, stable, durable.
ZLk series rectifier power supply wiring from the form of Lead-and-two post; from the end brought the number of leads and have a four-terminal-side lead to six (six-end leads to facilitate contact with external contactors); from the speed of action There are fast-general and two (of which was divided into fast-rapid pull-in, quick release and pull-in is fast and quick release of three); from the input and output voltage, there 220V AC voltage input, 99V DC output voltage and 380V AC input voltage, 170V DC output voltage of two. This product can achieve output current 2A, to meet the basic kinds of electromagnetic brake and DC-DC electromagnetic clutch.
ZLK series with a small power rectifier, a good seal for motor YEJ standard working environment can be installed directly in the electric wiring inside the box; with the input and output protection circuits for devices such as brakes, and other high-frequency inductors at work.
