Brand Name: | yamamototc; | Place of Origin: | Hebei China; |
Ceramic color: | red,white,yellow etc; | Material: | ceramic; |
Packaging Detail: | carton; | appearance: | Metal plating,bronze,silvery,golden; |
Type: | SPARK PLUG; | Electrode: | nickel-cladcopper, platinum; |
Ignition Method: | CDI; | Supply Ability: | 10000 Piece/Pieces per Week; |
Port: | Shanghai/Ningbo/Tianjin port; | Payment Terms: | L/C,Western Union,T/T; |
Terminal: | removable; |
1. BAJAJ &TVS
BOXER, PULSAR, VICTOR, KB4S, VESPA, TUK TUK
2. Honda:
BIZ 100, BIZ125, C70, C100, C100-BIZ, CB100, CB125,CB250N, CBX150,CBX200, CD70, CD100, CD125, CG125, CG150,GS125,etc.
3. Suzuki:
A50, A80, A100, AX100, C70, C90,CN125, ER100, ER125, FD115, FR100, GT50, GP100, GP125, GN125, etc.
4. Yamaha:
AG100, CRYPON, DX100, DT125, FS80, GT50, JUPITER Z, JUPITER MX, RD50, RS100, RX100, RXK
Model Number | Dimensions(mm) | Replacement NGK Model | |||
Size | Reach | Hex | |||
C | C8RTC | M12 X1 .25 | 12.7 | 17.5 | DR7HA |
C8TC | D7HA | ||||

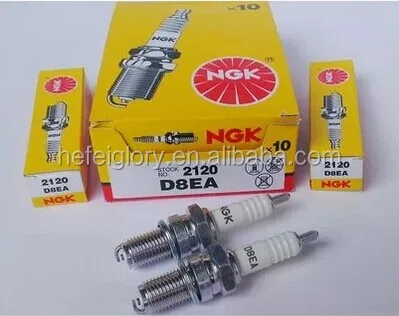

D | D8TC | 19 | D8EA | ||
D8RTC | DR8EA |
1.Thread: M12*1.25, Reach: 19mm, Hex: 16
2.Multi-ribbed insulator eliminates flashover.
3.95% pure alumina insulator, Great mechanic and electronic features, superb insulation.
4.Nickel plated shell prevents oxidation and corrosion, Heat crimping process ensures absolute gas-tight fit.
5.Inner sealing with conductive glass ensures a fine conductivity and sealing.
6.Multi-layer gaskets have strong elasticity and reliable in sealing.
7.Copper core electrode vastly improves heat dissipation and prevents dangerous, overheating of the engine. Good electricity and heat conductivity, Long spark plug service life.
8.Applied in motorcycles, such as Honda 100, 125, 250, 400; SUZUKI 100, 125, 200, 250; YAMAHA 150, 200, 250; JIALING 125, 145, 150; LONCIN 125, 150; ZONGSHEN 125; GLRIVER 125 and so on.
Model Number |
Specification | Gap | Cross Reference | ||||
Thread | Reach | Hex | NGK | BOSCH | CHAMPION | ||

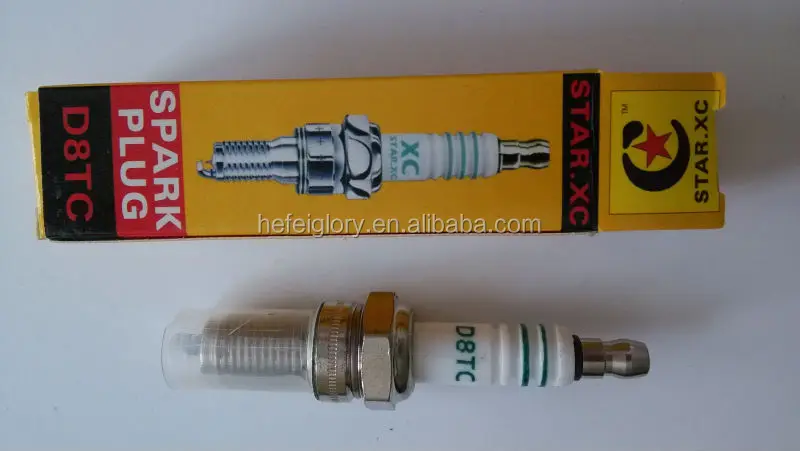

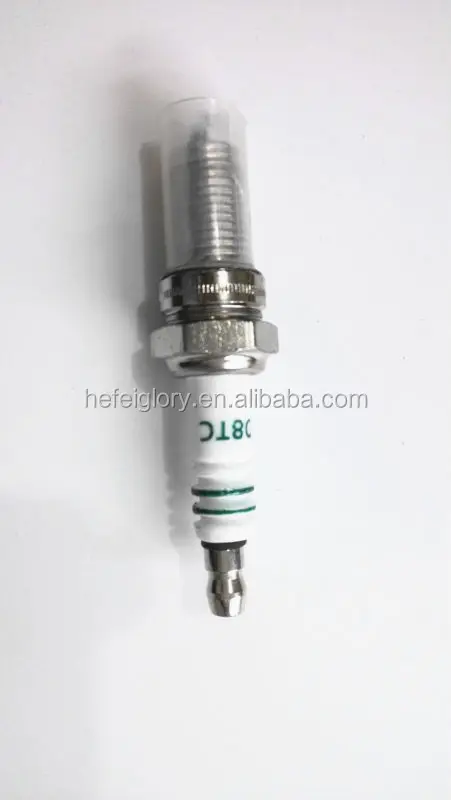

D8TC | M12X1.25 | 19 | 17.5 | 0.6 | D8EA | X5C | A8YC |
A7TC | M10X1 | 12.7 | 12.7 | 0.6 | C7HSA | U4BC | Z9YC |
E6TC | M14X1.25 | 12.7 | 20.8 | 0.8 | BP5HS | W8BC | L92YC |
F8TC | 19 | BP8ES | W6DC | N9YC | |||
K7TC | 16 | 0.7 | BK7ES | F7DC | C9YC |
