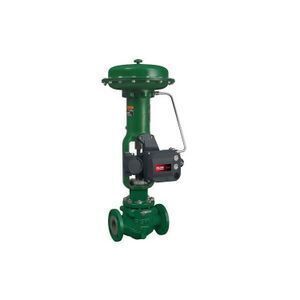

Fisher DVC6200 SIS Digital Valve Positioner

Supplier: Xiangjing (Shanghai) M&E Tech. Co., Ltd.
Region: Shanghai, China
Contact: Mr Edward Zhao
Price: $2600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Month;	Model Number:	DVC6200 SIS;
Port:	main ports in China;	Packaging Detail:	Packing type: cardboard box Dimension: Weight Aluminum: 3.5 kg (7.7 lbs) Stainless Steel: 8.6 kg (19 lbs);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	Fisher;
Place of Origin:	Singapore;

Product Description

Fisher DVC6200 SIS Digital Valve Positioner

The Fisher FIELDVUE DVC6200 SIS digital valve controller is capable controlling the valve safety shutdown function and safely extending time between proof tests using partial stroke testing, all while monitoring the health of the entire valve assembly. Enhance safety and reliability of your Safety Instrumented System (SIS) valves.

Specifications

Area Classification: Explosion Proof, Intrinsically Safe, Non-incendive, Flame Proof
Certifications: CSA, FM, ATEX, IECEx, Peso, INMETRO, NEPSI, CUTR
Communication Protocol: HART®
Data Interface: Wired
Diagnostics: Yes
Input Signal: Electric, Pneumatic
Max Outlet Pressure: 145 psi
Mounting Type: Remote Mount, Actuator Mounted
Position Control: On/Off, Modulating, Control, Monitoring, Partial Stroke Test
Power Source: Local
Process Control: Flow, Pressure, Temperature, Level
Safety Certification: SIL 3 capable
Supply Media: Air, Natural Gas
Other Configurations:
Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.

Features

Valves can go longer between proof tests and increase availability using partial stroke testing. Identify stuck valves, pressure drop, friction changes, leaks, or other common valve issues without taking the valve and process offline.
Partial stroke and full stroke tests result in an easy to understand pass/abnormal criteria including reason for any abnormal result.
Valve diagnostic information can be accessed anywhere along the communication loop, reducing personnel exposure to hazardous environments or difficult to reach locations.
An outgoing pressure threshold prevents a sticking valve and actuator from over-traveling and potentially causing spurious trip.
Linkage-less feedback system and fully encapsulated electronic design minimizes effects of pipeline vibration and environmental effects.
When installed in an integrated control system, significant hardware and installation cost savings can be achieved.

Supply Pressure
Minimum Recommended: 0.3 bar (5 psig) higher than maximum actuator requirements
Maximum: 10.0 bar (145 psig) or maximum pressure rating of the actuator, whichever is lower.

Steady State Air Consumption
Low Bleed Relay
At 1.4 bar (20 psig) supply pressure: 0.056 normal m3/hr (2.1 scfh), average
At 5.5 bar (80 psig) supply pressure: 0.184 normal m3/hr (6.9 scfh), average

Weight

Aluminum: 3.5 kg (7.7 lbs)
Stainless Steel: 8.6 kg (19 lbs)

Packaging & Shipping

We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
