Finish: | ZINC; | MOQ: | 10meters; |
Link type: | Short link chain; | Supply Ability: | 5000 Meter/Meters per Month ODM,OEM service; |
Process: | Welded+Heat treatment+Surface Treatment; | Package Preview: | ; |
Intensity grade: | G80; | Function: | Lifting heavy things,Drag Chain; |
Standard or Nonstandard: | Standard; | Payment Terms: | L/C,Western Union,T/T; |
Place of Origin: | Shandong China; | Structure: | Welded Chain; |
Surface treatment: | Polishing ,blackened, painted, plastic coating, electro-galvanzed .; | Certificate: | ISO9001; |
Packaging Detail: | Bulk packing Packed in wooden carton, then in pallet Iron drum, then in pallet According to your requirements; | Model Number: | 6*18 - 42*126; |
Port: | Qingdao; | Brand Name: | First Rigging; |

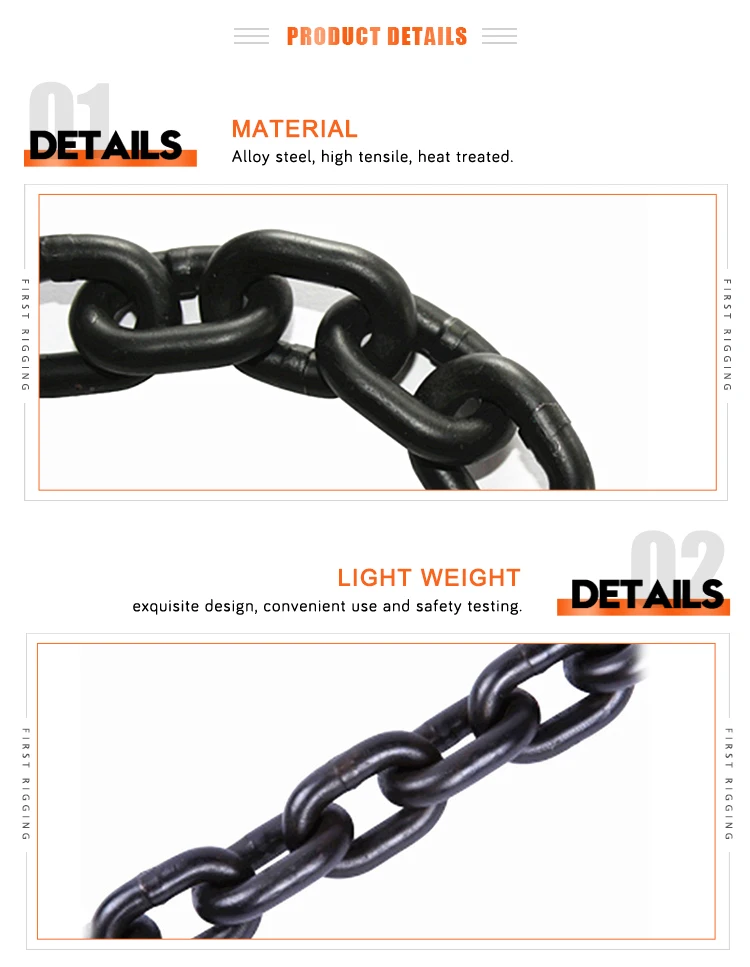

Material: | Alloy steel; |

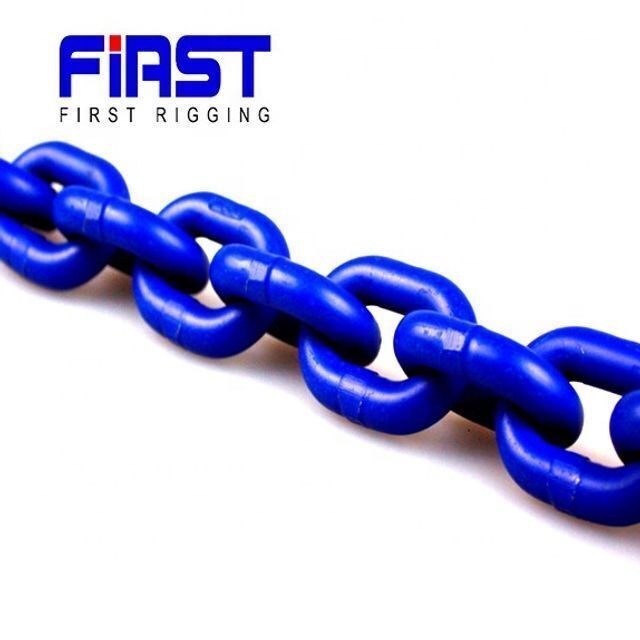

product name | Lifting chain |
package | iron drum/boxes/pallets/according to requests |
grade | G80 |

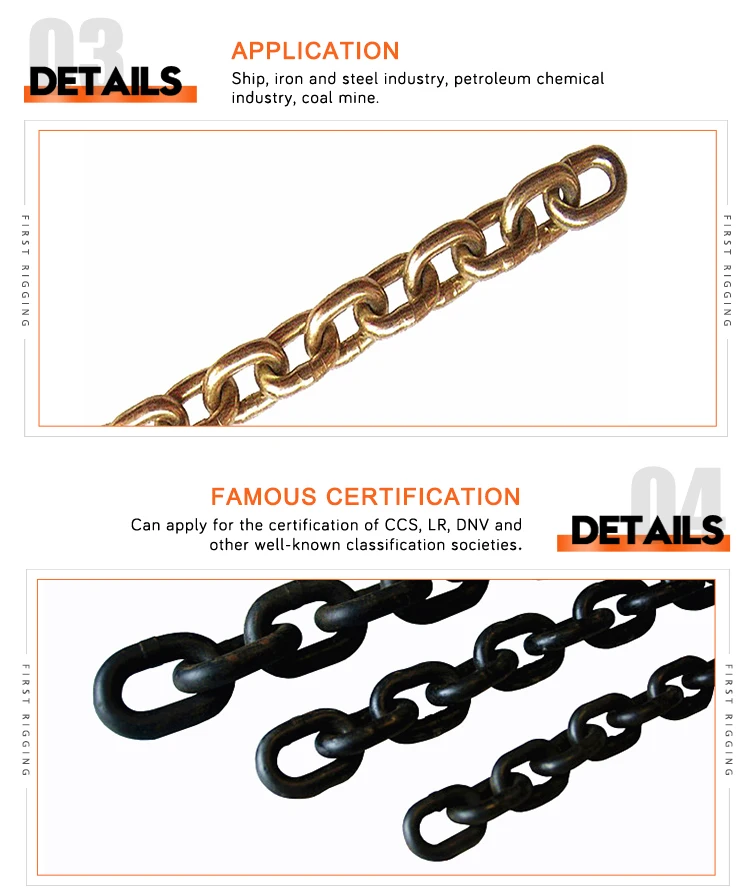

application | ships, steel, petrochemical industry, coal mine |
payment | T/T L/C Western Union |
feature | high strength |

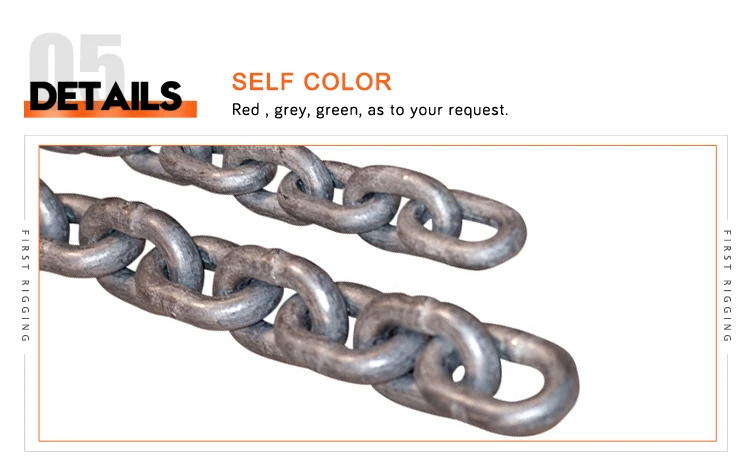

colour | according to requests |
certification | ISO9001 CE SGS |
simple | available |
size d*p(mm) | min b | max b | kg/m | working load (Kn) | testing load (Kn) | breaking load (Kn) |
6*18 | 7.5 | 21 | 0.79 | 11 | 27 | 45.2 |
7*21 | 9 | 24.5 | 1.07 | 15 | 37 | 61.6 |
8*24 | 10 | 28 | 1.38 | 20 | 48 | 80.4 |
9*27 | 11.5 | 30 | 1.9 | 24.5 | 61 | 102 |
10*30 | 12.5 | 35 | 2.2 | 32 | 76 | 125 |
12*36 | 15.5 | 42.2 | 3.3 | 49 | 117 | 196 |
13*39 | 16.3 | 46 | 3.8 | 50 | 128 | 214 |
14*42 | 18 | 49 | 4.13 | 63 | 150 | 250 |
16*48 | 20 | 56 | 5.63 | 80 | 192 | 320 |
18*54 | 23 | 63 | 6.85 | 100 | 246 | 410 |
20*60 | 25 | 70 | 8.6 | 125 | 300 | 500 |
22*66 | 28 | 77 | 10.5 | 153 | 366 | 610 |
24*72 | 32 | 82 | 12.78 | 180 | 432 | 720 |
26*78 | 35 | 91 | 14.87 | 213 | 510 | 650 |
30*90 | 38 | 105 | 19.6 | 283 | 678 | 1130 |
32*96 | 40 | 106 | 22.29 | 322 | 772 | 1289 |
34*102 | 46.5 | 121.5 | 25.5 | 363 | 870 | 1450 |
36*108 | 49.5 | 128.5 | 31 | 407 | 978 | 1630 |
38*114 | 52 | 136 | 32 | 453 | 1086 | 1810 |
42*126 | 55.5 | 144.5 | 38.6 | 554 | 1332 | 2200 |
