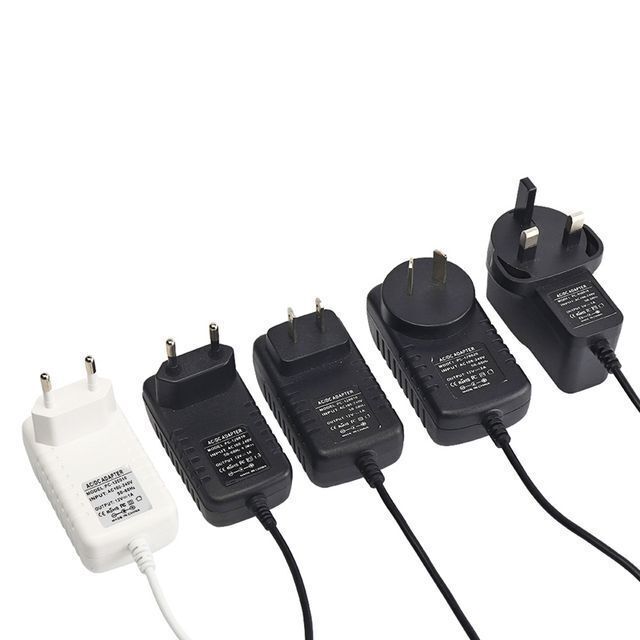

UL ETL CB CE FCC SAA PSE RoHS Wall Charger Adaptor 5V 6V 9V 20V 24V 12V Switching Power Supply 0.5A 1A 3A 2A AC DC Power Adapter

Supplier: Shenzhen Pengchu Industry Co., Ltd.
Region: Guangdong, China
Contact: Mr Chucai Wang
Price: $1.25 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Packaging Detail:	Brown box with PE bag;	Model Number:	PC-120020;
Brand Name:	OEM;	warranty:	one year;
DC connector size:	5.52.5/5.52.1mm;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPal;
Supply Ability:	150000 Piece/Pieces per Month;	Protection:	OVP OCP OTP SCP;
Material:	PC+ABS;	Color:	Black/White etc.;
Package Preview:	;	Connection:	Plug In;
Port:	Shenzhen;	AC Plug:	UK/EU/AU/US plug(optional);
DC cable:	1.2m(optional);	Place of Origin:	Guangdong China;
Output Type:	DC;	certificate:	UL ETL CE FCC RoHS C-TICK SAA PSE;
Dielectric strength test:	100%;	Aging test:	100% aging test;

Product Feature

UL ETL CE FCC RoHS SAA C-tick CB Approved

ABS+PC Fireproof Material,high temperature resistance and flame retardant

With 4 protections : Short Circuit Protection ; Over Voltage Protection ;Over Current Protection ; Over temperature protection Real power,full load aging testing,100% loading testing.

Accept OEM/ODM

Product Description

Input	Voltage Range	90~264Vac(Normal Reated Input Voltage is 100~240Vac)
		Frequency Range	47/63Hz
		Efficiency	88%min
Output	DC Voltage	5V 6V 9V 12V 15V 20V 24V etc.(All Optioal)
		Ranted Current	0.5A 1A 2A 3A et.(All Optional)
		Ranted Power	2.5W-36W(All Optioal)
		Voltage Tolerance	±5%
		Line Regulation	±1%
		Load Regulation	±5%
Environment	Working Temp.	0~+40℃
		Working Humidity	20~85% RH non-condensing
		Storange Temp., Humidity	-20~+75℃, 10~90%RH
OTHERS	Certificates	UL ETL CE RoHS FCC SAA C-tick CB etc.
OTHERS		PACKING	White paper box

Details Images

Product Certificates:

Pengchu product with international approval. US Market: UL FCC, ETL,DoE Level VI Efficiency, EU Market: CE CB RoHS, ERP UK Market: CE CB, ERP AU Market: SAA C-tick JP Market: PSE

KR Market: KC

Phenomenon	Standard
UL	UL 62368 (UL No.: E499459)
CB	IEC 62368-1:2014
CB	IEC 60950
CE	EN 60335
Medical	EN 60601
CE	EN 60950
CE	EN 61347
CE	EN 61558
CE	EN 62368
PSE	J60065 / J55013/J55023/J3000
SAA	AS/NZS 62368
More Certificates Please Contact Us

AC Plug & DC Connector:(optional/Accept OEM)

Application

This Power Adapter Suit for These Model:

No.	Model:	Output Voltage	Output Current	Output Power
1	PC-050005	5V	0.5A	2.5W
2	PC-050010	5V	1A	5W
3	PC-050020	5V	2A	10W
4	PC-050030	5V	3A	15W
5	PC-050050	5V	5A	25W
6	PC-050080	5V	8A	40W
7	PC-060010	6V	1A	6W
8	PC-060020	6V	2A	12W
9	PC-090005	9V	0.5A	4.5W
10	PC-090010	9V	1A	9W
11	PC-090015	9V	1.5A	13.5W
12	PC-090020	9V	2A	18W
13	PC-090025	9V	2.5A	22.5w
14	PC-090030	9V	3A	27W
15	PC-120005	12V	0.5A	6W
16	PC-120010	12V	1A	12W
17	PC-120015	12V	1.5A	18W
18	PC-120020	12V	2A	24W
19	PC-120025	12V	2.5A	30W
20	PC-120030	12V	3A	36w
21	PC-144010	14.4V	1A	14.4W
22	PC-144020	14.4V	2A	28.8W
23	PC-150010	15V	1A	15W
24	PC-160010	16V	1A	16W
24	PC-180010	18V	1A	18W
25	PC-180020	18V	2A	36W
24	PC-240005	24V	0.5A	12W
25	PC-240010	24V	1A	24W
26	PC-240015	24V	1.5A	36W
27	PC-240020	24V	2A	48W
28	PC-360010	36V	1A	36W
29	PC-3600134	36V	1.34A	48W
30	PC-4800031	48V	0.31A	15W
31	PC-4800052	48v	0.52A	25W
