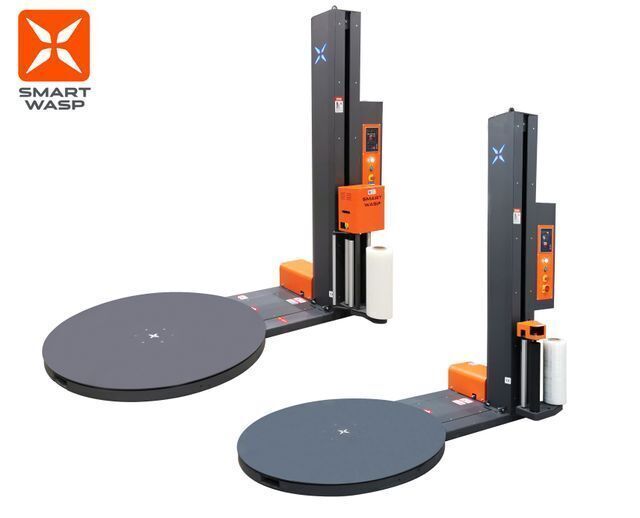

Fully automatic pallet stretch wrapping machine pallet wrapper pallet wrapping machines

Click here to contact
Product details
Max load weight:2000KG;Brand:SMART WASP;
Dimension(L*W*H):2.8x1.65x2.73m;Warranty of core components:1 Year;
Core Components:PLC,Gear,Motor,Bearing;Packaging Material:Film;
Video outgoing-inspection:Provided;Port:SHANGHAI, NINGBO;
Marketing Type:New Product 2020;Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Food Shop,Energy & Mining,Food & Beverage Shops,Advertising Company;
Machinery Test Report:Provided;Packaging Type:Cartons,case;
Wrapping Speed:30-40 Load/H(1x1.2x1.8m);Pre-stretch rate:250%-300%;
Remote control:Have;Application:Food,Beverage,Commodity,MEDICAL,Chemical,Machinery & Hardware,APPAREL,Textiles;
Weight:650KGS;Brand Name:SMART WASP;
Condition:New;Local Service Location:United Kingdom,United States,Viet Nam,Mexico,Thailand,Malaysia,South Korea,South Africa,Ukraine;
Automatic Grade:Automatic;Payment Terms:L/C,D/A,T/T;
Measure height:Automatic;After Warranty Service:Video technical support,Online support;
After-sales Service Provided:Online support,Video technical support;Showroom Location:United Kingdom,United States,Viet Nam,Mexico,Thailand,South Korea,South Africa,Ukraine,Malaysia,Australia;
Driven Type:Electric;Key Selling Points:Easy to Operate;
Cut&Clamp film:Fully automatic;Certification:CE;
Warranty:1 Year;Type:Wrapping Machine;
CE Certificate:Have;Place of Origin:Jiangsu, China (Mainland);
Voltage:220V-240V/50/60HZ Single Phase,110/220/240/50HZ/60HZ;Model:X0-MS;
Product Description
Model
Smart Wasp X0-MS
Spare Parts
 Brand
 Maximum wrapping speed
20-30 loads/hour
(1x1.2x1.8 m 2 layer NOT include loading and Unload time)
Inverter
X-LINE
Maximum pallet size
1.2*1.2 m
Position sensor
SICK(Germany)
Maximum Wrapping Height
2000mm/2400mm/2800mm optional
PLC
X-LINE
Turntable Speed
0-12RPM(Adjustable)
Travel Switch
OMRON
Turntable Size
1650mm(1500mm/1800mm/2000mm optional)
Turntable Sensor
SICK
Machine Power
1.5KW
Relay
OMRON(Japan)
Film Cut
Manual
Touch screen
 X-LINE
Max Load Weight
1500KG/2000KG Adjustable
Switch
Schneider
Standard Film Width
500mm
Photoelectric sensor
Autonics
Constant Film Delivery Force
Standard
Terminal block
Weidmuller(Germany)
Standard Pre-Stretch
250-300%
24V power supply
OMRON
Film Capacity
250mm Diameter

Up&down Drive speed
0-5.5m/min

Fix Film on Pallet
Manual
OPTIONAL FUNCTION

Roping system
Optional
Ramp
Optional
Muti-layer function
Have
weighing scale
Optional
Machine Size
2.33*1.5*2.45m
Top pressure function
Optional
Machine weight
450KG

Voltage
110-240V/50HZ/60 HZ 1/3P



ENGINEER DRAWING
Detailed Images

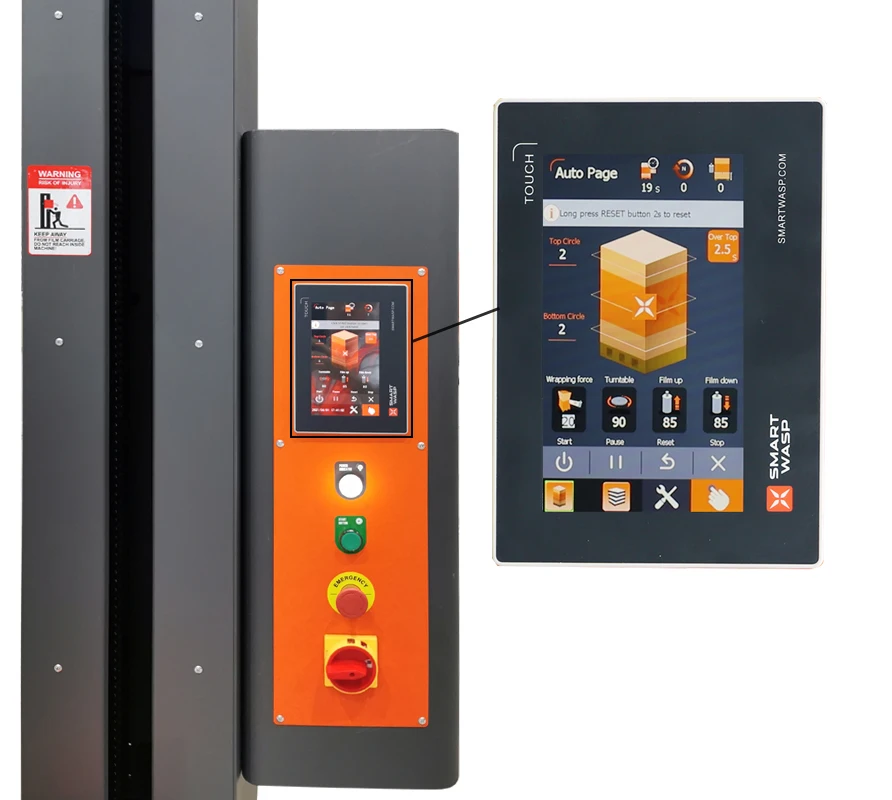

1. X-LINE Operation System
X-Line touch screen, with intelligent and easy operation system. Easy to understand and convenient to use, even for new worker.

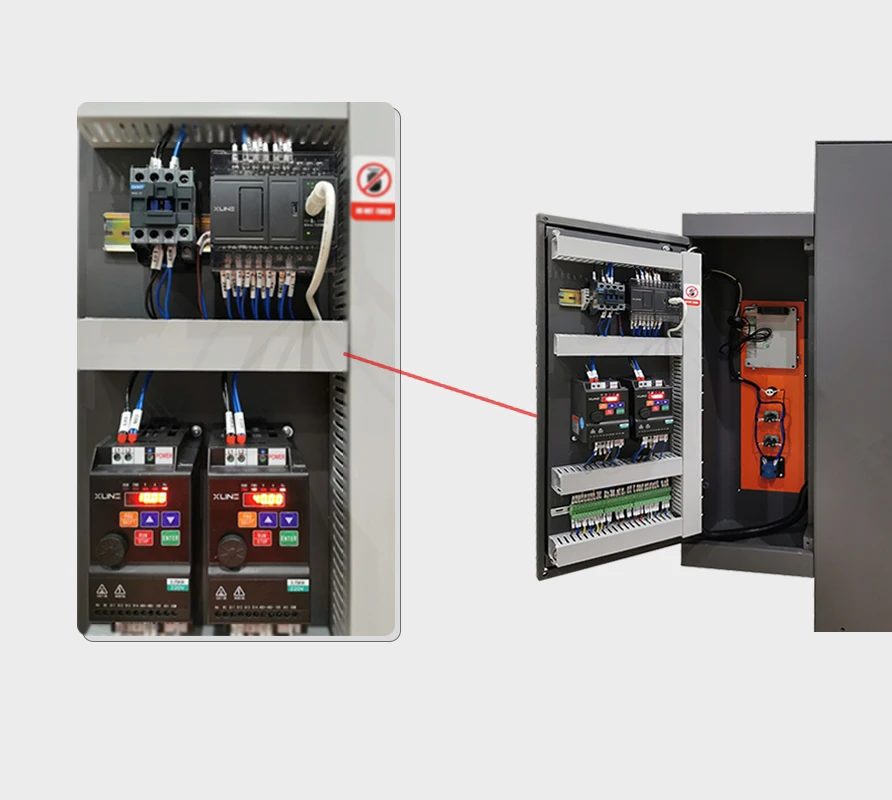

2.Better Spare Parts


X-LINE PLC

SICK proximity switch

AUTONICS photoelectric switch

WEIDMULLER terminal block

X-LINE Inveter

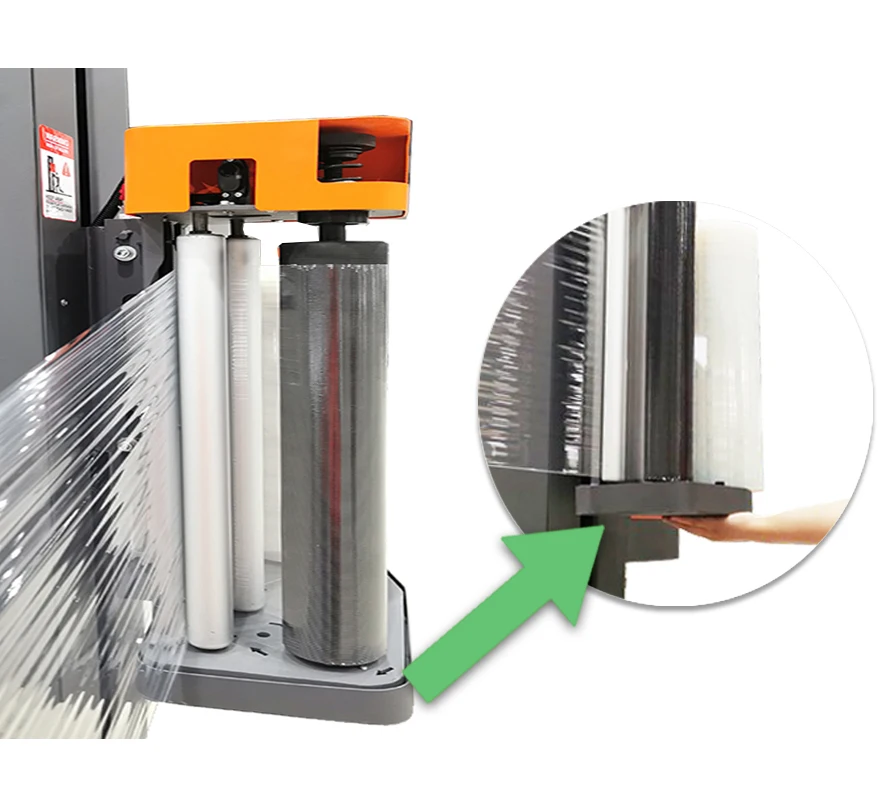

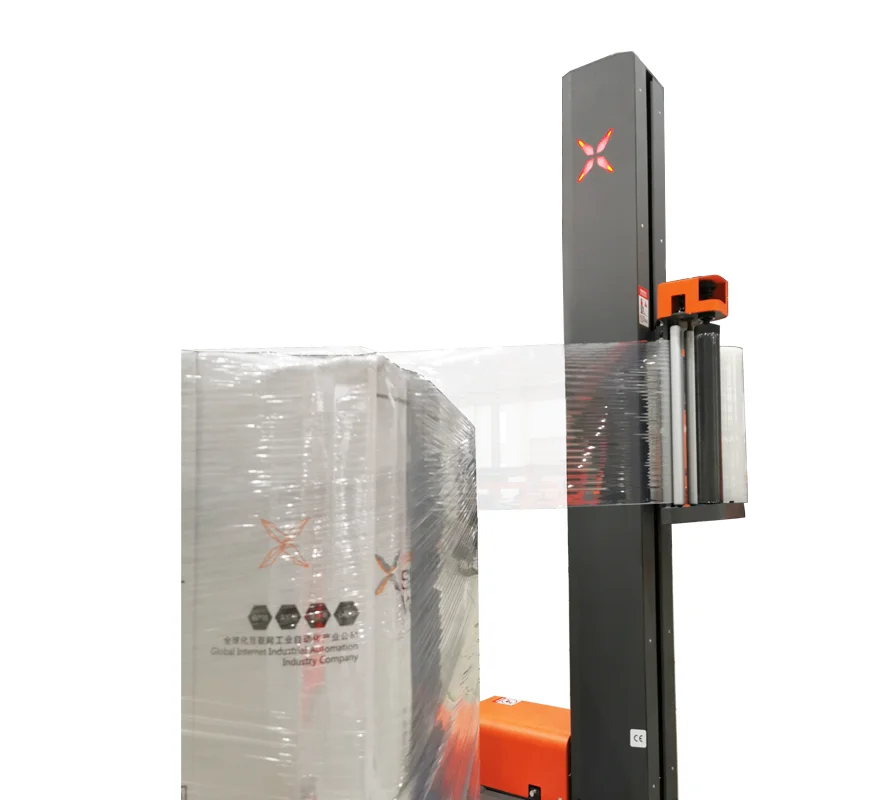

3. Constant Force Release Film


Standard constant force releasing film

Fixed-point wrapping and quantitative use film Release film smoothly, has a transparent effect on the pallet

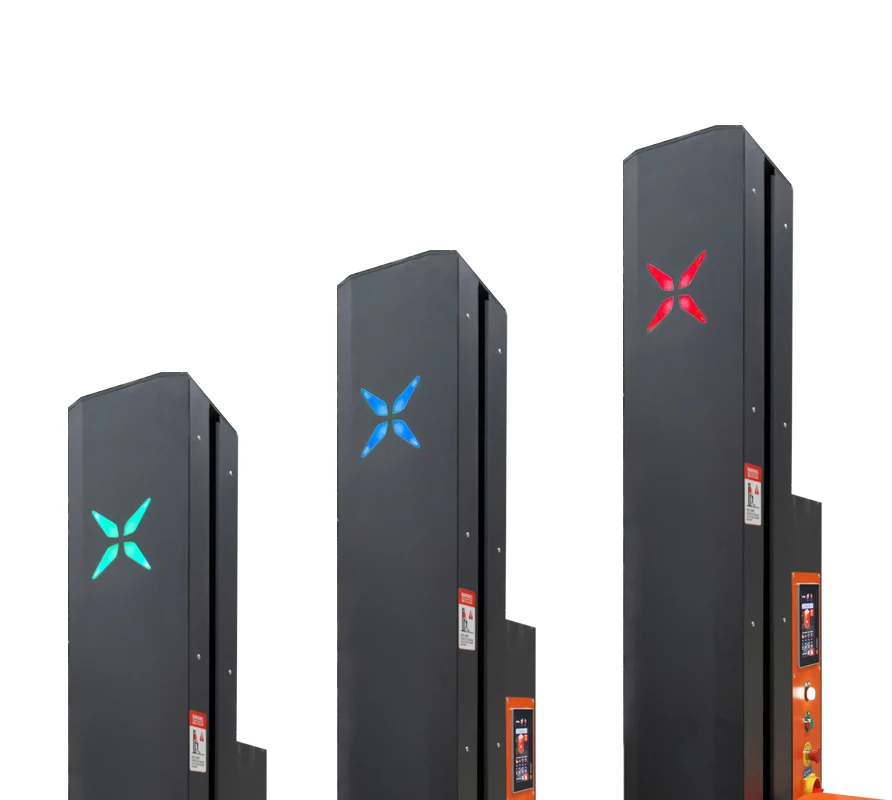

4. Intelligent LED Light


1. With LED indicator on machine.
Ready for work--Blue color
Working--Green color
Alarm--Red color
2.Touch screen guide you how to operate machine. If alarm appears, touch screen will show you how to solve problem




5. Advanced Safety Technology
1.Safety device under film carriage to protect
the foot or head of the operator
2.Up and down chain prevent deviation and equipped with alarm system gives alarm in time to avoid carriage dropping down.

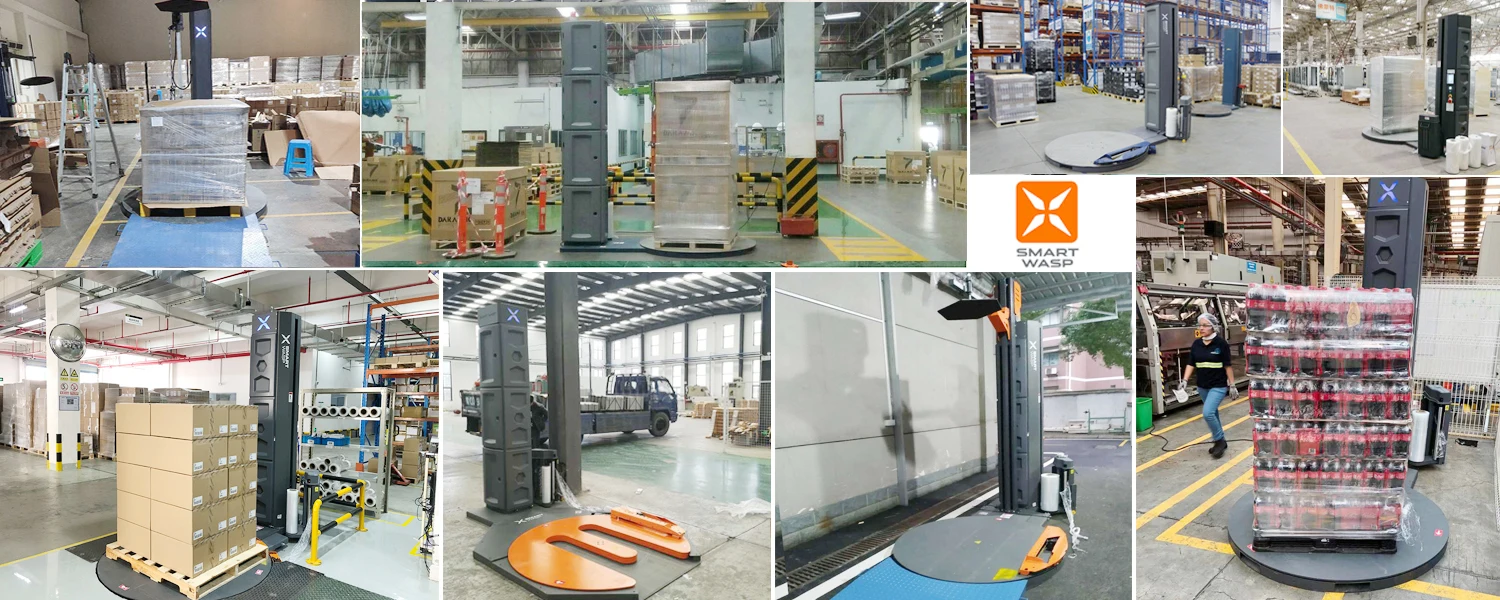

CUSTOMER CASES

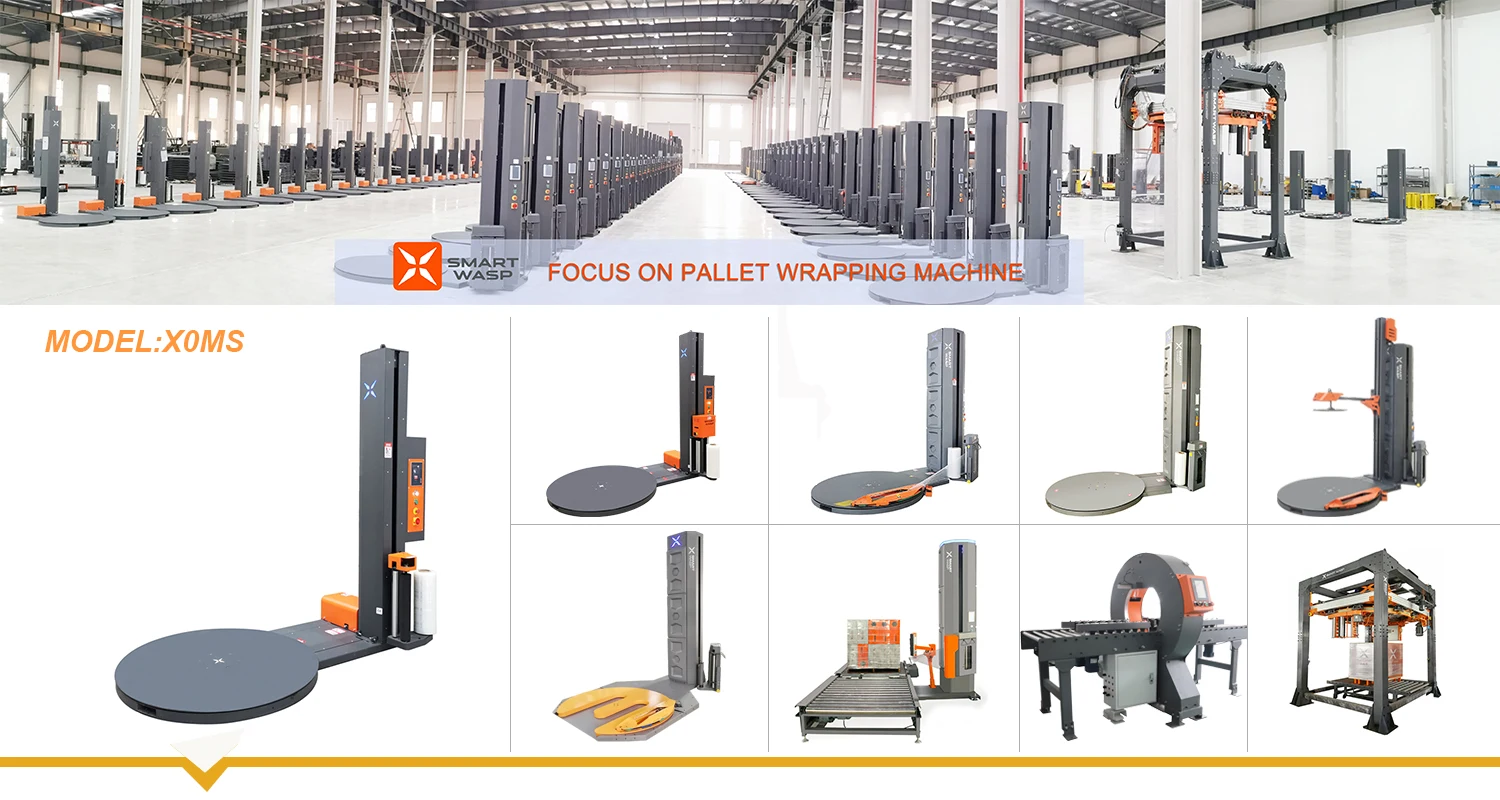

SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution
SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine

WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shipping Type
1set machine/crate
(size/weight)
2sets machines /crate
(size/weight)
Mix packing
(just for FLC shipping type)
LCL Shipping

Srandard machine
2.68x1.7x0.8m
520KG
2.7*1.7*0.95m
1000KG
Turntable /crate
Carriage/crate
Tower/crate
Quantity crates in 20 FT

4sets
8sets
12sets
Quantity crates in 40 HQ
8sets
16sets
24sets
Exhibition
WELCOME TO VISIT US
SMART WASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO.Over 10 countries And Every Year attend China Professional Exhibition

2021 SMARTWASP EXHIBITION LIST

The 27th China International Exhibition on Packaging Machinery & Materials ProPak China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China


The 17th China (Qingdao) International Packaging Industry Exhibition CIPI Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
The 22nd Asia International Logistics Technology and Transportation Systems Exhibition CeMAT
Time：2021/10/26-29
Address：Shanghai New International Expo Center
OUR TEAM
SMART WASP Team have 210 members, we have over 30 mechanical engineers and electric engineers. SMART WASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machines. We hope more and more partners to join us .

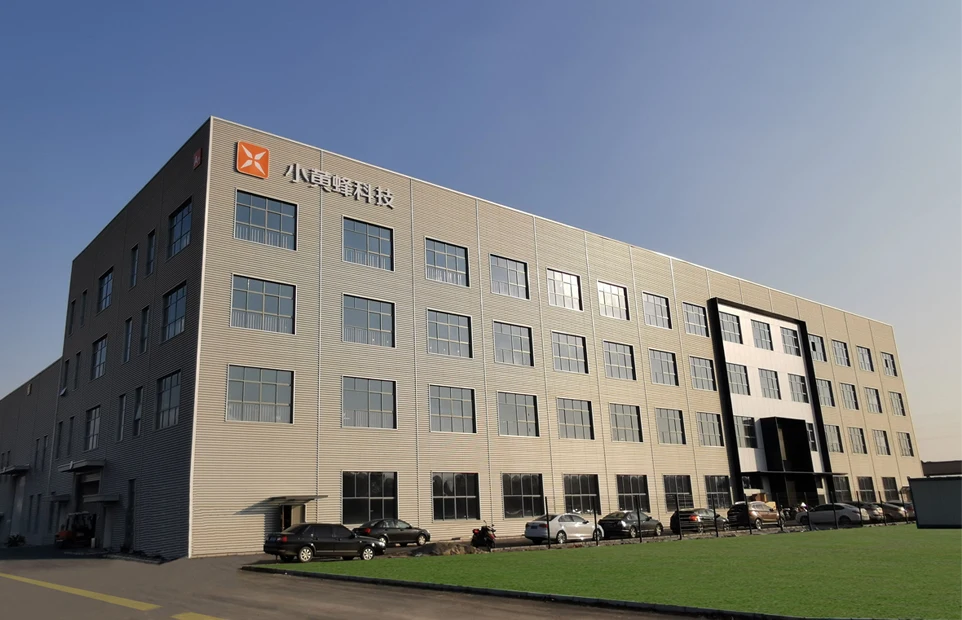

Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet

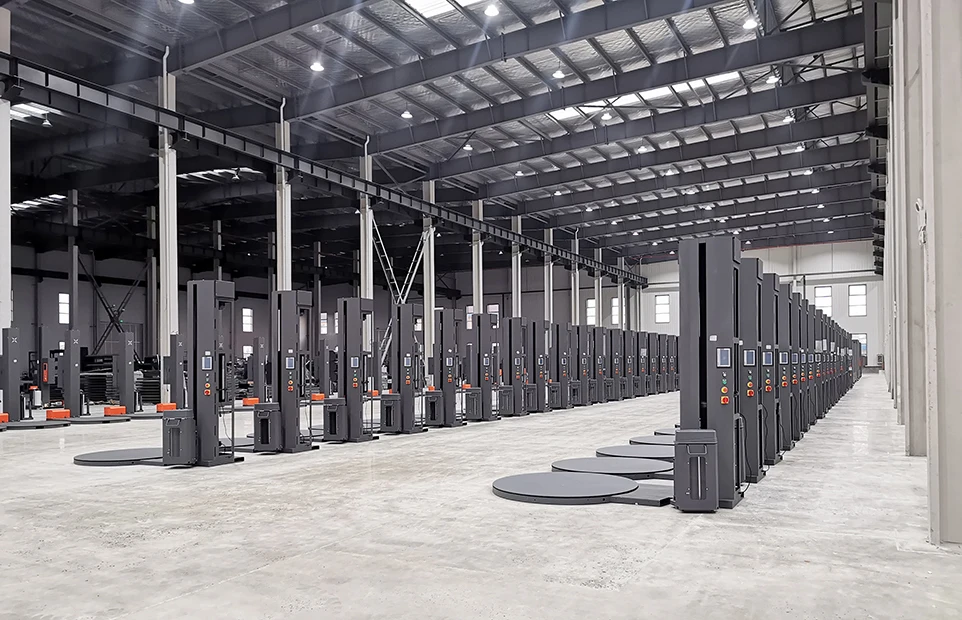

wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
