Mini Closed Loop Cooling Tower

Product details
Place of Origin:Shandong China (Mainland);Dimension(L*W*H):As Model Closed Type Water Cooling Tower;
Anti-corrosion way:The overall heat invasion zinc;Noise Control:Low speed fan,noise damping;
Model Number:BNX;Cooling coil material:stainless steel/Hot-Dip Al-Zn Alloy-Coated Steel Sheet etc;
After sale service:Engineer site guide support;Power(W):110-415v etc;
After-sales Service Provided:Overseas service center available;Port:Port in China;
Packaging Detail:Mini Closed Loop Cooling Tower The bottom and upper body parts, each will packed with plastic film to anti moisture. And spare parts will be packed by wood case.;Water pump motor:protection class IP54,insulation class F;
Condition:New;Supply Ability:2000 Set/Sets per Year Mini Closed Loop Cooling Tower;
Cooling Type:Counter Flow;Payment Terms:L/C,T/T,Western Union;
Name:Mini Closed Loop Cooling Tower;Keyword:Mini Closed Loop Cooling Tower;
Certification:CE ISO9001;Delivery Detail:45-60days days after deposit;
Material:Metal;China Plastic Cooling Tower:Heng An Water Cooling Tower;
Weight:As Model Industrial Closed Circuit Water Cooling Tower;Maintenance:with access door and ladder;
Design Center:National Heat Exchange Center(in Shandong University);Brand Name:Heng An Closed Cooling Tower;
Warranty:18 Months;Voltage:220V/240V/380V/480V;

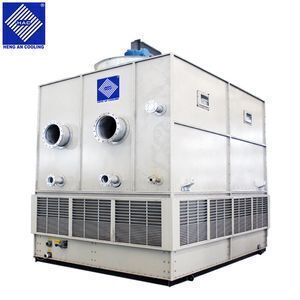

Mini Closed Loop Cooling Tower

China Good Price Mini Closed Loop Cooling Tower





Product Description





Mini Closed Loop Cooling Tower characteristics



1 .Easy to maintain



the huge inside spare space is convenient for people to access to maintain the cooling tower



2.Avoiding scaling



better water coverage around the tube is due to air and spray water flowing in smooth,patallel, downward path over the coil, promoting dry spots since the water is not stripped from the underside of the tubes by the airflow.



MODEL

CAPACITY

(m3/h)


FAN

WATER SPRAYING PUMP

INLET/ OUTLET
DN(mm)

WEIGHT

DIMENSION



SHIPPING

(kg)

OPERATING

(kg)

LENGTH

(mm)

WIDTH

(mm)

HEIGHT

(mm)





Qty

POWER

(kW)

AIR VOLUME PER SET
(m3/h)

Qty.

Power

(kw)

Water Volume

Per Set
(m3/h)





BHX-30

30

1

3

35000

1

1.1

36

DN80

2390

3790

1925

2380

4220





BHX-40

40

1

4

45000

1

1.1

45

DN100

2510

3910

1925

2380

4220




Please click here if you want to send directly inquire :

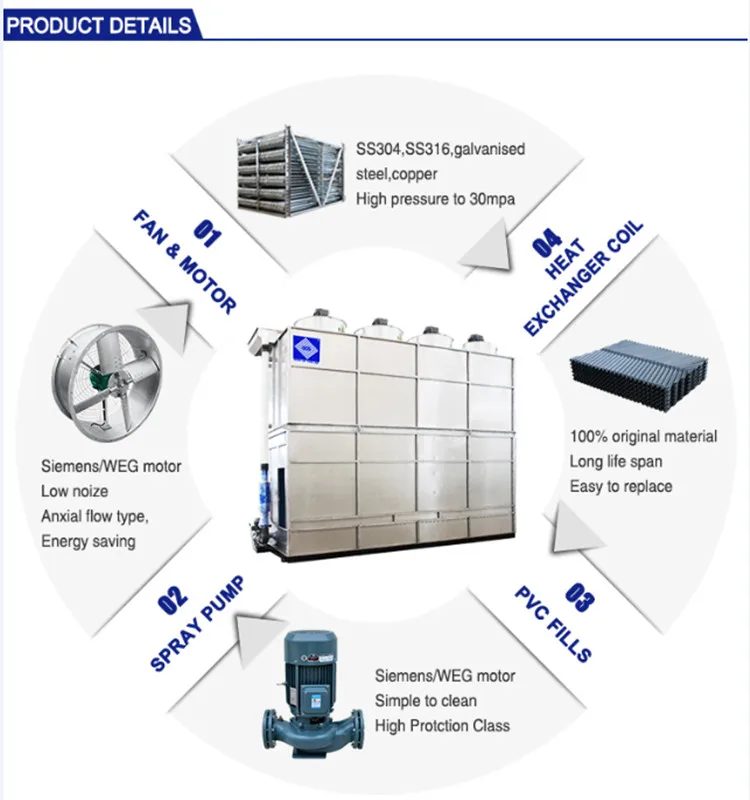

Detailed Images





Coil: Made of high-quality seamless steel pipes. The coil unit are galvanized entirely to improve the corrosion resistance ability and extend the service time. The coils can also be made by SS-304/316L stainless steel or T2 red copper. Maximum pressure of our coils could reach to 32Mpa.



Spray Pump: Sealed by top quality rotary no-limited machinery seal, no leaking, long lifecycle, small horse power, large flow volume, low noise and high performance.



Fan: Aluminum alloy axis-flow type



Casing: SS-304/316L or imported Aluminum-zinc alloy plate.





Removable Drift Eliminator: PVC material; Make sure that the water loss rate will be less than 0.005%.



Cooling Tower Fill: 100% Original Material PVC Infill, special design with great cooling effect.







 Please click below photo if you have any directly inquire :





Company Information



  Weifang Hengan Radiator Group Co, Ltd. is a professional cooling towers manufacturers, who located in Weifang City, Shangdong Province of China. We are a large group compnay with rich producing and exporting experience for years, we supply top class products and service for clients from all over the world, and be the cooperation parter of many world famous large companies and enterprises. We looking forward to our cooperation.



Related Products

  Counter flow closed cooling tower   Combined flow cooling tower in India   Evaporative condenser

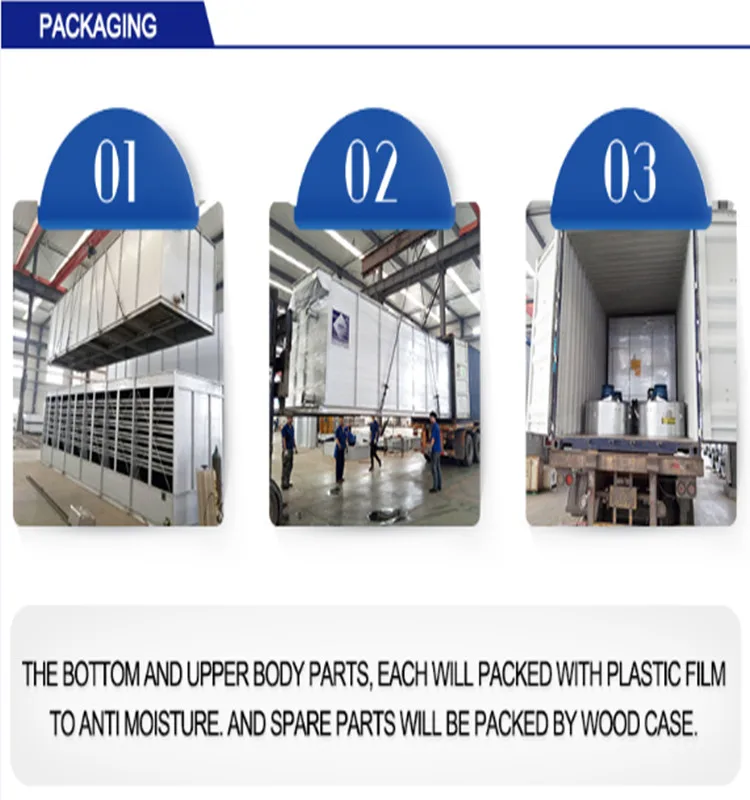

Packaging & Shipping





1. the body is designed to 2 parts: upper body and bottom body, can be easily divided into two parts, and loaded into container;

 2. shipping with 20ft and 40ft container.

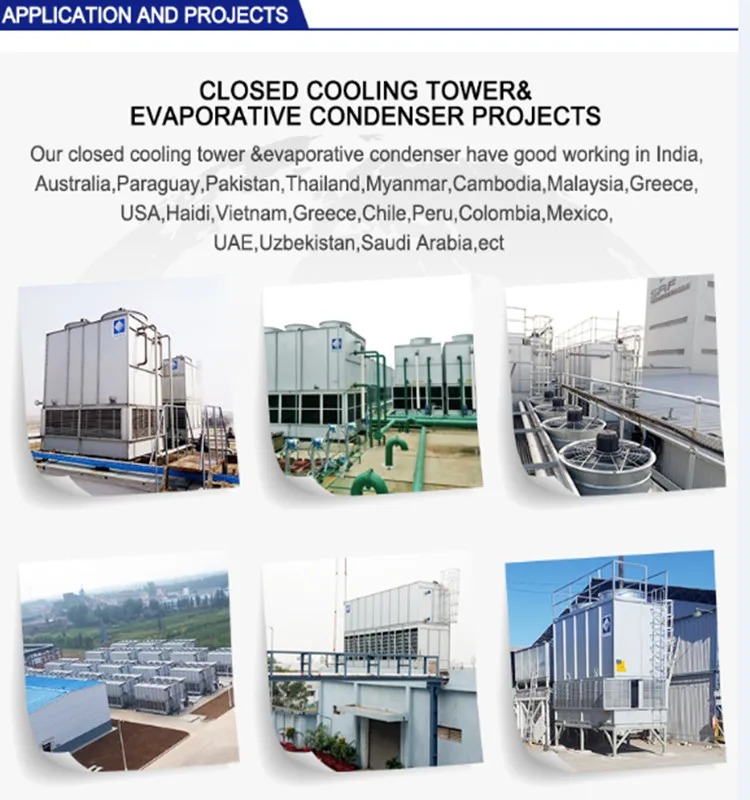

Project

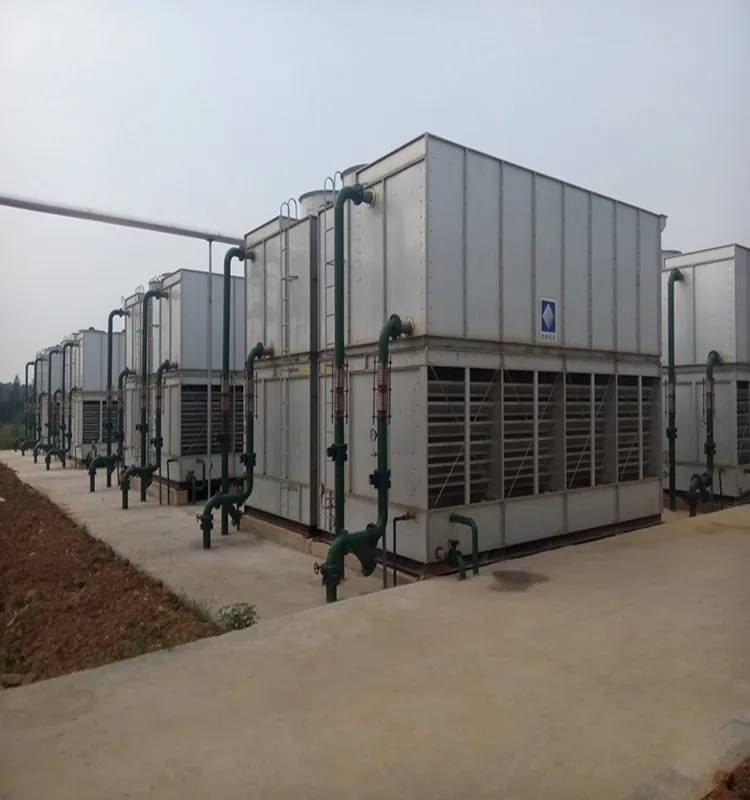

 Closed circuit cooling towers widely used for chemical plants, food factories, cold storage room, frezen refrigeration room, HAVC and other industries. Popular in markets:
